Switch-Pros 8 Switch 8100 User-Programmable Panel Power System for Jeep

Name: Switch-Pros 8 Switch 8100 User-Programmable Panel Power System for Jeep
Brand: all-electronics-online.com
SKU: 833934545
Availability: InStock
Rating: 5 (62 reviews)

Price:	US $ 50-80/Piece
Min Order:	10/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SP8100
Brand Name:	Maiyu
Rating Voltage:	12V-24V
Rating Current:	10A-12A
Material:	ABS Material Anti-Corrosion
Certifications:	Ce, RoHS SGS, CSA
Mechanical Life:	10000 Times
Temperature:	-25~85.C
Insulation Resistance:	100ohm
Panel Cutout Dimesion:	114.59683mm
Colors:	Blue, Red, Amber, Clear, Green
Usage:	Vehicle
Standard:	Standard
Lamp:	With Lamp
Certification:	CE
Condition:	New
Color:	Optional

Product Description

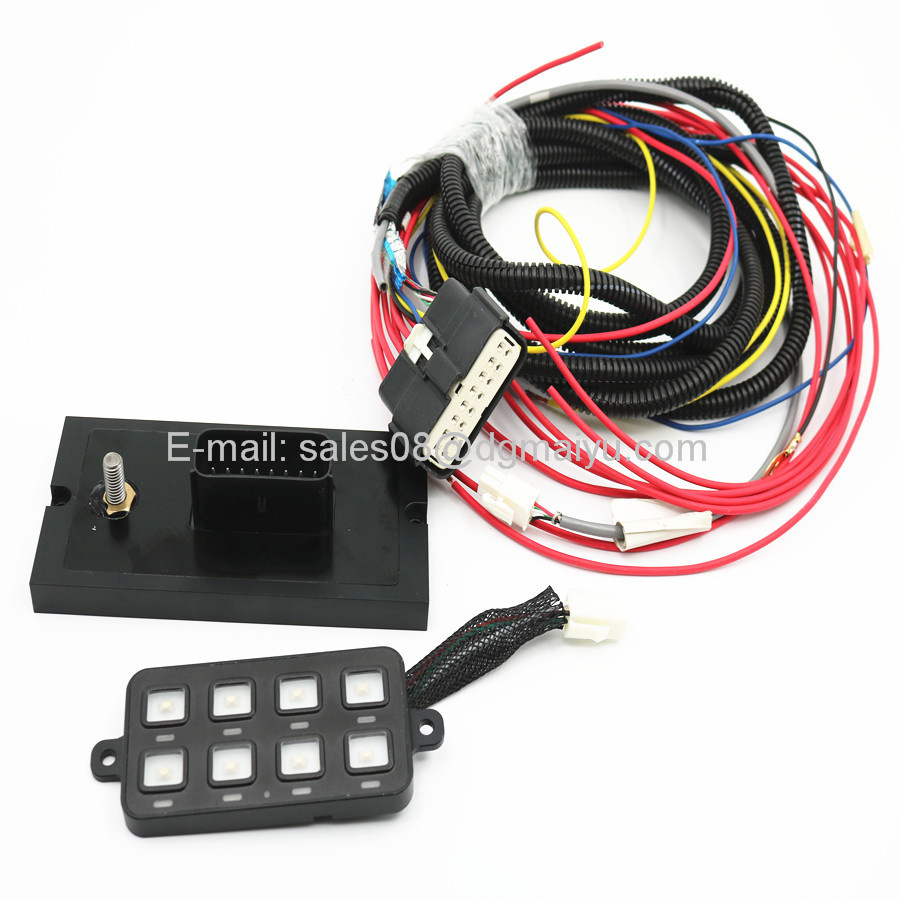

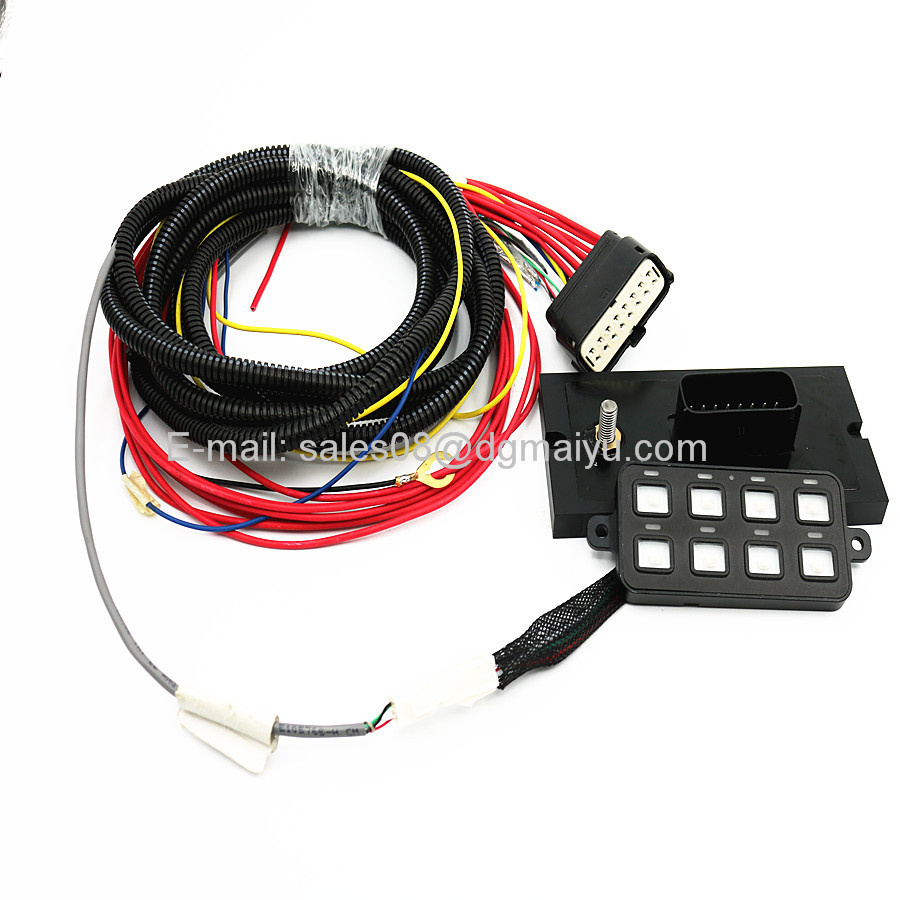

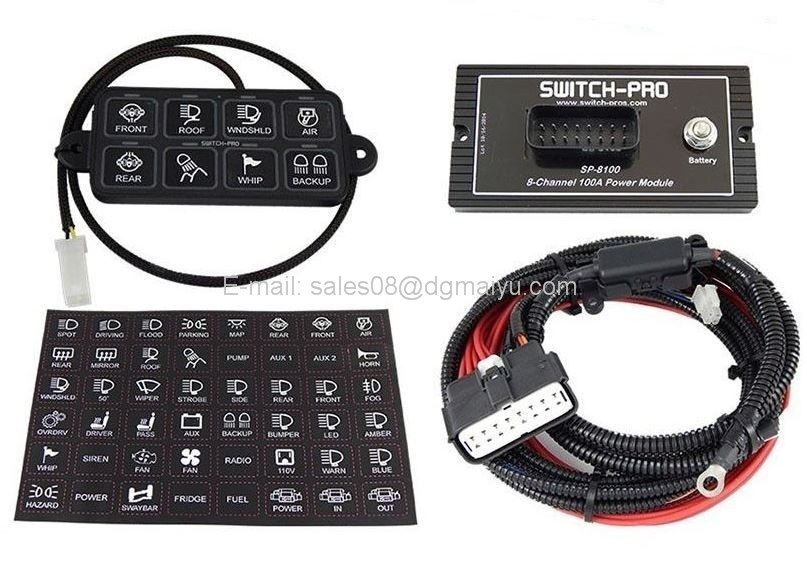

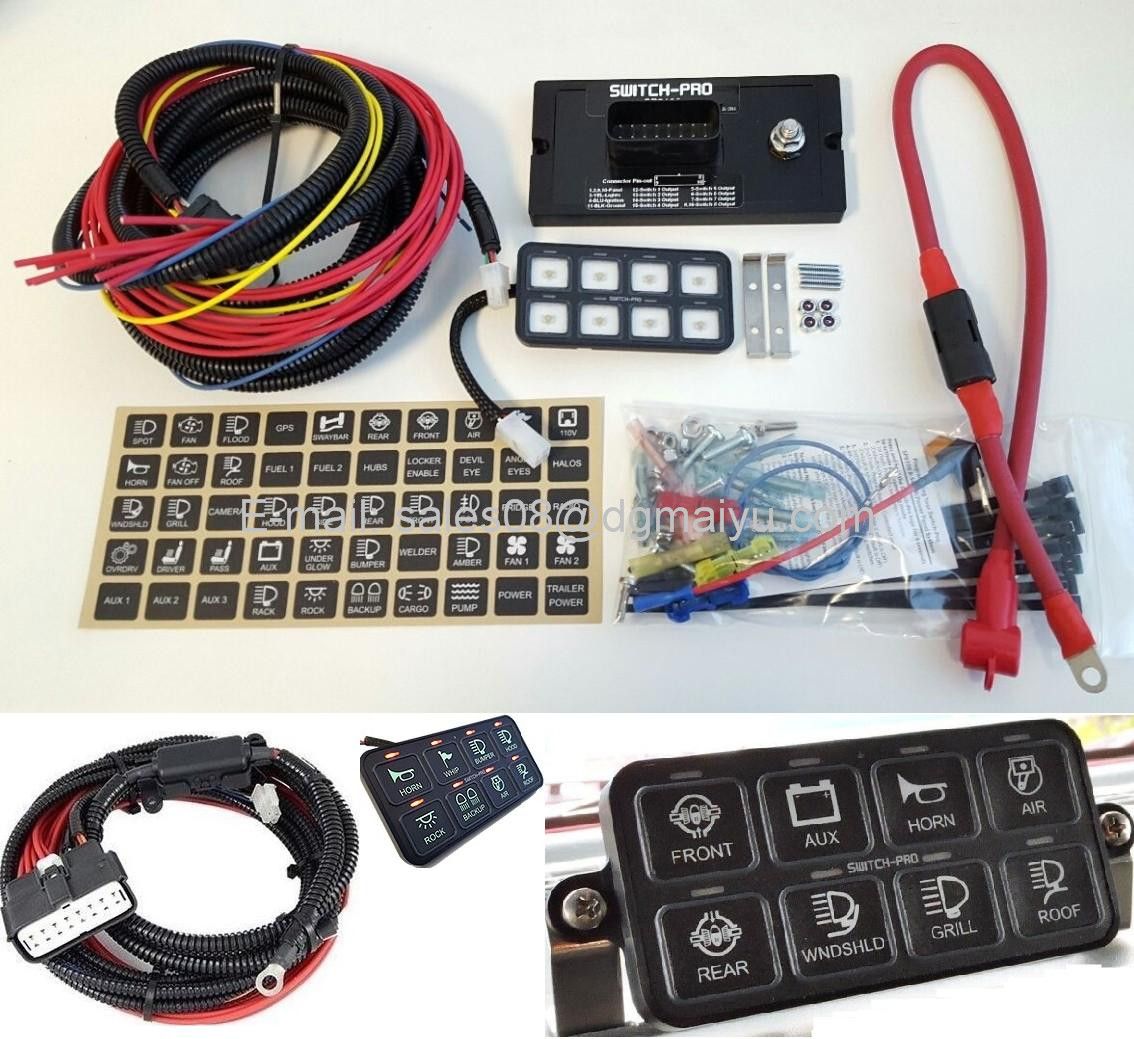

Switch-Pros 8 Switch 8100 User-Programmable Panel Power System for Jeep

The 100 amp power module is built with solid-state, automotive components, and uses no mechanical relays or fuses.  It is COMPLETELY SEALED, allowing you to mount it under the hood of your rig. The module monitors ignition and lights input, features built-in, over-temperature and over-current protection, allows you to choose Ignition or Battery input for any/all of your accessories, and allows for a designated Master Switch.

All Systems now Include:
-Dimming for lighting outputs
-External trigger to activate up to 2 outputs
-Battery Voltage display on app screen

Eight user-programmable switches
User-selectable switch legends
Illuminated switches with user-adjustable brightness
Programming and control via panel or smart phone
Bluetooth interface
100A solid state power module, engine compartment rated
Automatic shutdown for overcurrent and low voltage
Programming options are: On/Off or Momentary, Ign. or Batt., Flash and Strobe functions, Low Voltage Disconnect, and Switch Memory
Plug and play installation
Switch Panel Specs:

4"L x 2"W x .5"H (excluding tabs)
Enclosure:  Anodized Aluminum
Orange LED switch indicators
Green backlighting
Power Module Specs:

6"L x 3"W x .5"H (excluding connectors)
Enclosure: Anodized aluminum
8 Outputs, 7 rated @ 18A, 1 rated @ 30A
100A maximum rating 125°C to -40°C
16-pin, sealed automotive connector, wire harness w/100A fused power cable,
light and ignition input wires, and eight 3'long output wires
11' of communication cable between switch panel and power module
