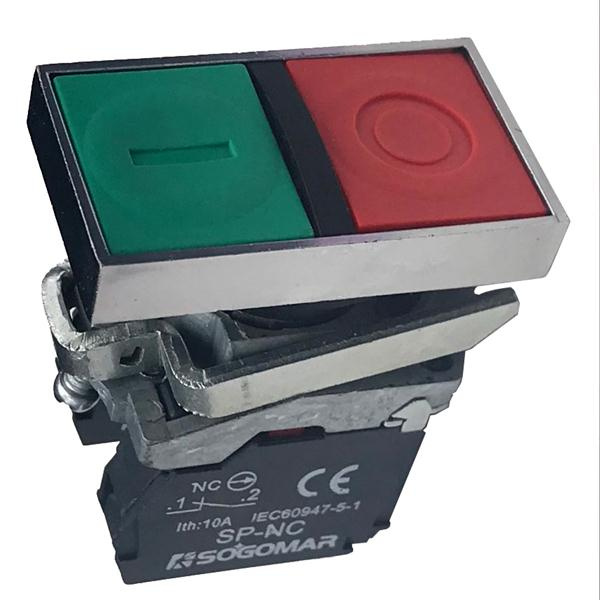

Switchgear Panel Push Button Switch SP-4BL8325

Name: Switchgear Panel Push Button Switch SP-4BL8325
Brand: all-electronics-online.com
SKU: 837066575
Availability: InStock
Rating: 4.4 (25 reviews)

Price:	US $ 1.2-1.32/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SP-4BL8325
Voltage:	6V, 12V, 24V, 48V, 110V, 220V, 230V, 240V, 380V
Usage:	Start Button
Kind:	Single-pole on-off Switch
Type:	No+Nc
Brand:	Sogomar

Product Description

Brief description

1) Operational Voltage: ≤660V
2) Ambient temperature: -25 °C~  +55°C
3) Operational humidity: ≤85%
4) Power-frequency withstand voltage: 2500V AC, 1min
5) Contact resistance: ≤50mΩ
6) Mechanical life: Momentary 1000, 000, selector switch:500, 000
7) Electric life:  Momentary 500, 000, selector switch:250, 000
8) Protection grade: IP40,IP67 (with silicone cover)

Wenzhou Sogomar Electric Co., Ltd. is a manufacturer and exporter, specialized in the research, development and production of components fordistribution cabinet, mainly engaged in AC axial fans with

Plastic and metal blades, DC fans, external rotor fans, centrifugal fans, pipe fans, fan filters, push button, panel meter and so on.

Our factory was founded in 2001, located in the "China Electric Capital". All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Currently, our products already be exported to America, France, Germany, Italy, Mexico and 25 other countries and regions. We are doing everything to offer our customers with best products and best service, We promise that we'll be responsible all the way to the end once our services begin.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
