Switching Capacitors AC Contactor Capacitor Contactor for Power Factor
| Price: |
US $ 23.36-45/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CJX8 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Switching Capacitor |
Product Description
Application

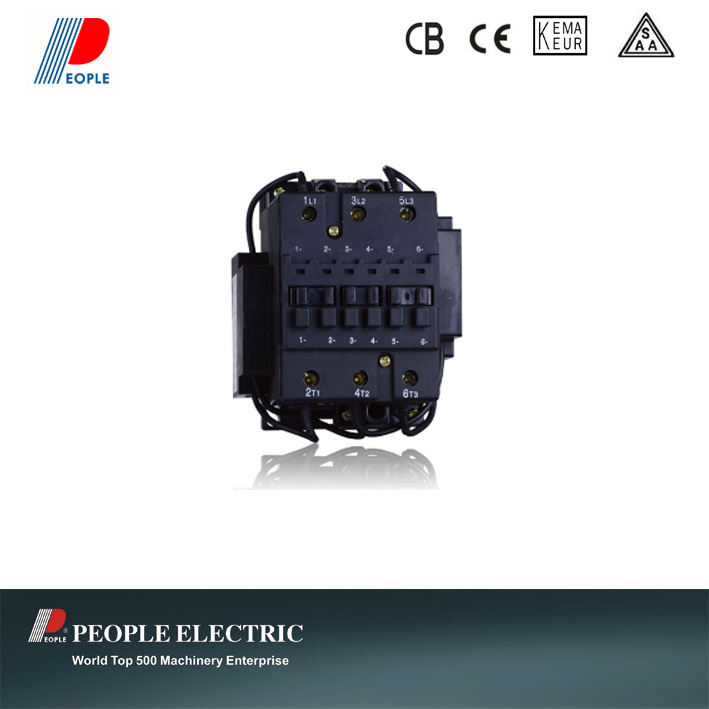

CJX8-C series switching capacitor contactor is suitable for switching on-off capacitors up to 50 kvar in electrical systems, AC 50Hz, rated working voltage up to 380V.
For connecting & breaking parallel capacitors unit, widely used in automatic reactive power compensation equipments to improve power factor.
Operation surrounding & Installation
1.Ambient Temperature: -5ºC ~40ºC, the average < 35ºC within 24 hours
2.Operating Altitude: 2000m
3.Mounting Position: ±5°(Vertical Plane)
4.Pollution Class: 3 class.
5.Mounted type: III
Specification
| Model | CJX8-25C | CJX8-30C | CJX8-50C | CJX8-63C | CJX8-75C | |
| control capacitor | 15kvar | 20kvar | 30 | 40 | 50 | |
| Rated current In(A) | 21.5 | 29A | 43 | 58 | 72 |
| Rated heating current Ith(A) | 32 | 43 | 60 | 73 | 85 | |
| Rated surge capacity | 20In | |
| Suck coil | working voltage Us(50Hz)V | 220, 380V or customized design | |
| Action range | 85%~110% Us pull-in steadily; 20%~75% release steadily |
| Consumption power VA | 85-10 | 175-20 |
| Rated current for shortcircuit protection fuse | 1.5~2.5In | |
| Rated insulation voltage Ui (V, 50Hz) | 500 | |
| Auxiliary contact rated heating current (AC15) | 10 | |
| Mechanical life (X104 times) | 100 | 80 | |
| Electrical life (1201 times/h) x104 times | 10 | 80 | |
| Weight (kg) | 0.59 | 0.64 | 1.12 | |
