Switching Diode Capacitance Style CD4148wp
| Price: |
Negotiable/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T |
| Prod Model: |
1N4148 LL4148 |
| Peake Reverse Voltage: |
100V |
| Power Dissipation: |
500 |
| Application: |
Electronic Products |
| Luminous Intensity: |
High Directivity |
| Usage: |
Guideline Lights |
| Formation: |
Gold Thread |
Product Description

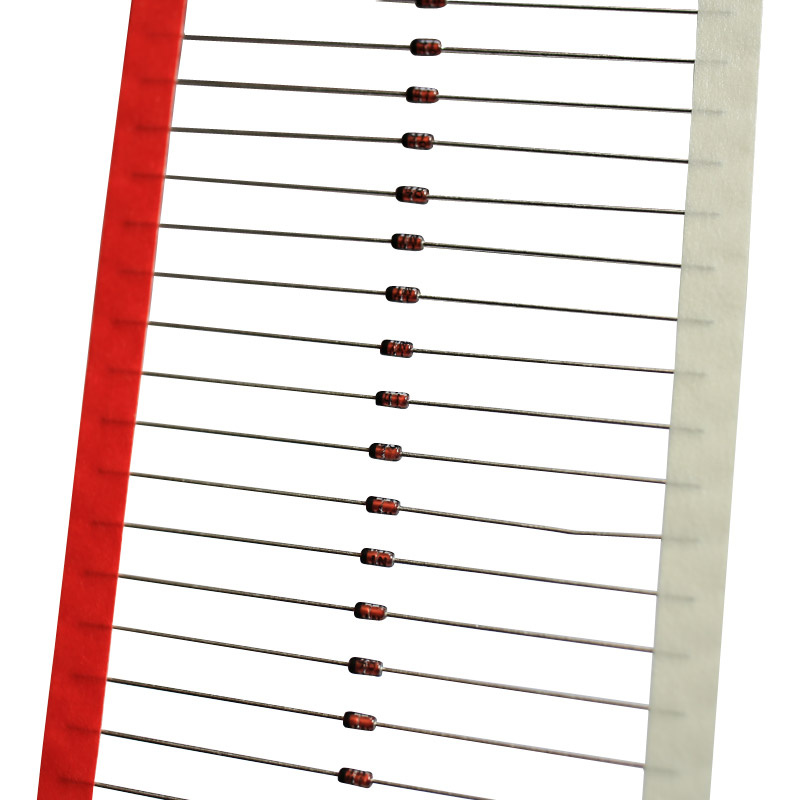

1N4148--SWITCHING DIODES,DO-35SWITCHING DIODES
No chip, capacitance style LL4148
FEATURESilicon epitaxial planar diode
Switching diodes
500mw power dissipation
High temperature soldering guaranteed
250 C/10 seconds,0.375,(9.5mm) lead length,MECHANICAL DATACase: DO-34\\DO-35 glass sealed envelope.
Terminals: Plated axial leads, solderable per MIL-STD-750,Method 2026.
Polarity:
Color band denotes cathode end
Mounting Position: Any.
Weight :
0.003 ounce, 0.09 grams(DO-34)
0.005 ounce, 0.14 grams(DO-35)
SWITCHING DIODE RANGE | |
|
|
|
|
|
|
|
| TYPE | Maximum Repetitive | Maximum Average | Maximum Forward | Maximum Reverse | Maximum | Power
Dissipation | Package |
| Peak Reverse | Rectified | Voltage | Current@VRRM | Reverse |
| Voltage | Current | @TA=25ºC | TA=25ºC | Recovery Time |
| VRRM | I(AV) | IR | VF | IR | VR | trr | Pd |
| V | mA | mA | V | μA | V | ns | W |
| 1N914 | 100 | 75 | 10 | 1.0 | 5000 | 75 | 4.0 | 250 | DO-35
DO-34 |
| 1N4448 | 100 | 150 | 10 | 1.0 | 5000 | 75 | 4.0 | 500 |
| 1N4154 | 50 | 200 | 200 | 1.0 | 100 | 50 | 4.0 | 500 |
| 1N4151 | 75 | 150 | 50 | 1.0 | 50 | 50 | 2.0 | 500 |
| 1N4150 | 35 | 150 | 30 | 1.0 | 100 | 25 | 2.0 | 500 |
| 1N4148 | 100 | 150 | 100 | 1.0 | 5000 | 75 | 4.0 | 500 |
| 1N4454 | 75 | 150 | 10 | 1.0 | 100 | 50 | 4.0 | 500 |
| LL914 | 100 | 75 | 10 | 1.0 | 5000 | 75 | 4.0 | 30 | LL-35
LL-34 |
| LL4148 | 100 | 150 | 10 | 1.0 | 5000 | 75 | 4.0 | 30 |
| LL4150 | 50 | 200 | 200 | 1.0 | 100 | 50 | 4.0 | 30 |
| LL4151 | 75 | 150 | 50 | 1.0 | 50 | 50 | 2.0 | 30 |
| LL4154 | 35 | 150 | 30 | 1.0 | 100 | 25 | 2.0 | 30 |
| LL4448 | 100 | 150 | 100 | 1.0 | 5000 | 75 | 4.0 | 30 |
| LL4454 | 75 | 150 | 10 | 1.0 | 100 | 50 | 4.0 | 30 |
