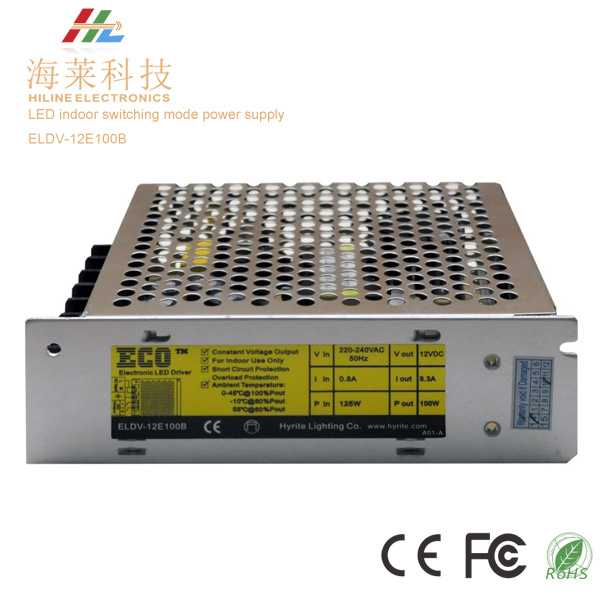

Switching Mode LED Indoor Power Supply 100W Eldv-12e100b

Name: Switching Mode LED Indoor Power Supply 100W Eldv-12e100b
Brand: all-electronics-online.com
SKU: 818873265
Availability: InStock
Rating: 4.4 (116 reviews)

Price:	US $ 7.8-8.6/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E100B
Size:	1599842 mm
Color:	White
Material:	Aluminum+PVC
Output Type:	Single
Warranty:	2 Years
Output Power:	51 - 100W
Input Voltage:	Full Range
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	FCC

Product Description

ELDV-12E100B Features:
Indoor driver for LED module, strip, flex ribbon, bar light, panel light, LED-neon tube, pixel lamp, perforating lamp, etc...
Constant voltage output
Mesh case (or electric fan) for ventilation
100% burn-in test
ELDV-12E100B Technical parameters:

Model no.	ELDV-12E100B
Model series	ELDV
Input voltage	170-250VAC 50Hz/60Hz
Power	100W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	8.3A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60ºC,100%Pout@0~45ºC, 60%@60ºC, 80%@-10ºC
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	1599842 mm
Weight(kg)	0.5400
Packing information	50 Pcs/ Carton, G.W 27 KG

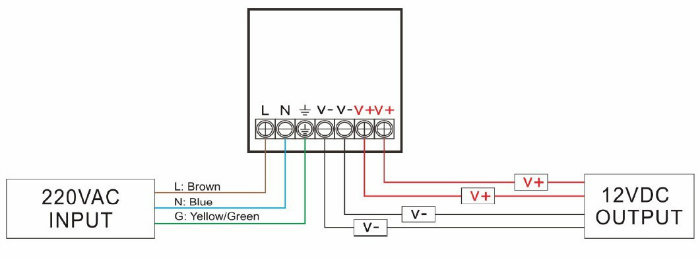

ELDV-12E100B wiring instruction:

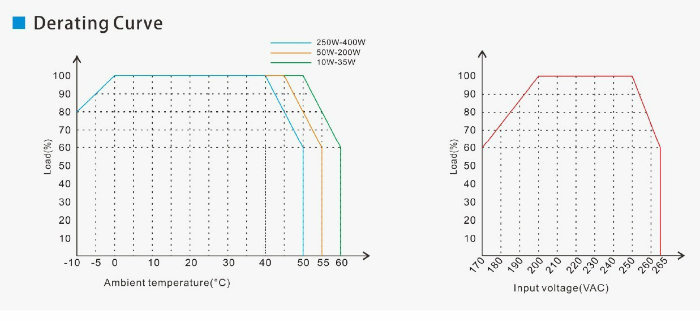

Derating curve:
