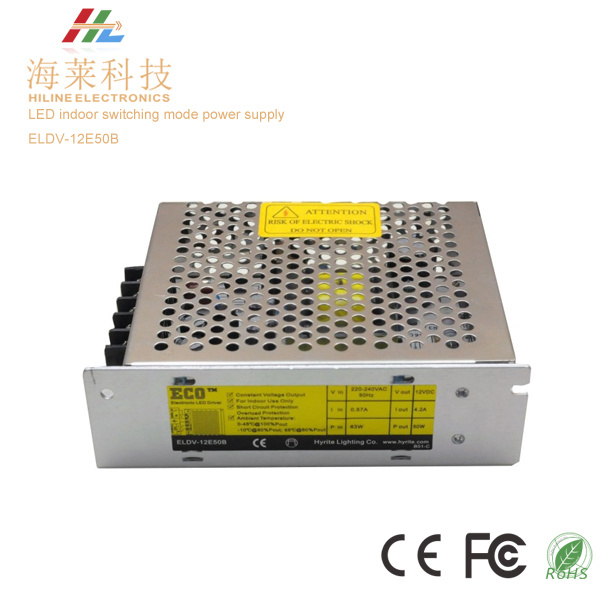

Switching Mode LED Indoor Power Supply 50W Eldv-12e50b

Name: Switching Mode LED Indoor Power Supply 50W Eldv-12e50b
Brand: all-electronics-online.com
SKU: 818872915
Availability: InStock
Rating: 4.3 (97 reviews)

Price:	US $ 5.1-6.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E50B
Size:	1299840 mm
Color:	White
Material:	Aluminum+PVC
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	Full Range
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	FCC

Product Description

ELDV-12E50B Features:
Indoor driver for LED module, strip, flex ribbon, bar light, panel light, LED-neon tube, pixel lamp, perforating lamp, etc...
Constant voltage output
Mesh case (or electric fan) for ventilation
100% burn-in test
ELDV-12E50B Technical parameters:

Model no.	ELDV-12E50B
Model series	ELDV
Input voltage	220-240VAC 50Hz
Power	50W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	75 %
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	4.2 A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60ºC,100%Pout@0~45ºC, 60%@60ºC, 80%@-10ºC
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	1299840 mm
Weight(kg)	0.2000

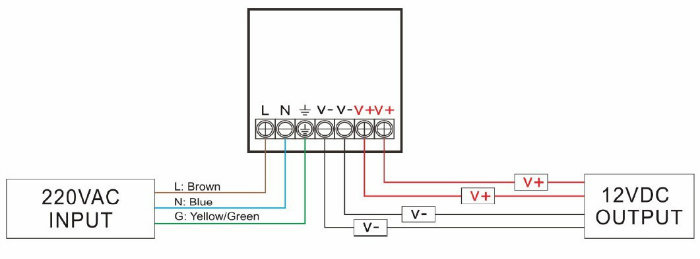

ELDV-12E50B wiring instruction:

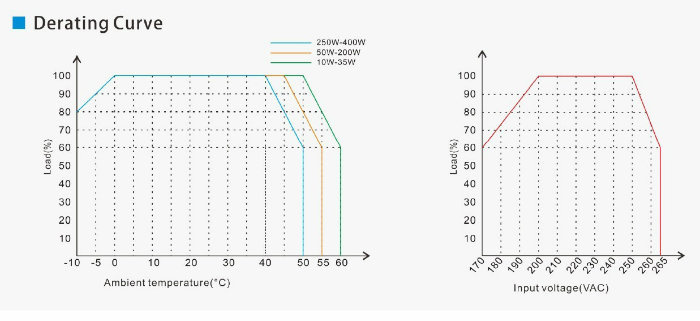

Derating curve:
