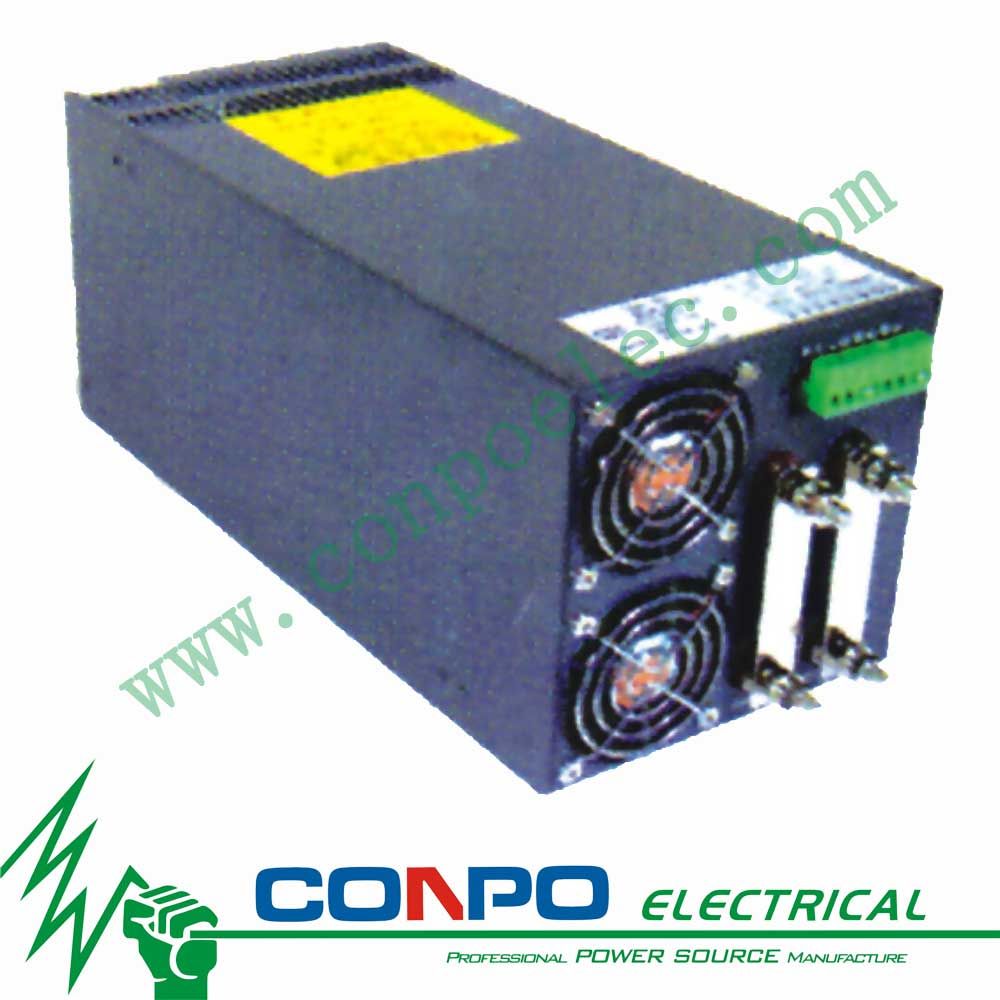

Switching-Mode Power Supply with Parallel Function 1500W
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
HSCN-1K5-... |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
2 Years |
| Output Type: |
Single |
| Certification: |
CE, RoHS, SGS, ISO9001 |
| Output Power: |
1500W |
Product Description
Feature:
1. High reliablility, low ripple noise
2. AC input voltage AC200~260V
3. Protections: Short circuit/over loade/over voltage/over temp. Protection function
4. Built-in remote ON-OFF control and remote sense funciton
5. With parallel function
6. Can adjust from 20%-100% output voltage by external control 1-5V
7. Forced air cooling by built-in DC fan
Remarks:
Custom-made specifications are acceptable.
Specification:
|
Model |
HSCN-1K5-12 |
HSCN-1K5-15 |
HSCN-1K5-24 |
HSCN-1K5-48 |
|
Output |
DC voltage |
12V |
15V |
24V |
48V |
|
Voltage tolerance |
+/-1% |
+/-1% |
+/-1% |
+/-1% |
|
Rated current |
125A |
100A |
62.5A |
32A |
|
Current range |
0-125A |
0-100A |
0-62.5A |
0-32A |
|
Rated power |
1500W |
1500W |
1500W |
1500W |
|
Ripple & noise |
120mVp-p |
150mVp-p |
240mVp-p |
480mVp-p |
DC voltage
adj. range |
Can adjust from 20%-100% output voltage by external control 1-5V |
Setup, rise, hold
time |
800ms 50ms 16ms at full load |
|
Input |
Voltage range |
200~260VAC 290~370VDC 47~63Hz |
|
AC current |
12A/230VAC |
|
Efficiency |
83% |
84% |
85% |
87% |
|
Inrush current |
120A/230V |
|
Leakage current |
3.5Ma/240VDC |
|
Protection |
Over load |
110~135% |
|
Protection type: current limiting, delay shut down o/p voltage, re-power on to recover |
|
Over voltage |
110~135% |
|
Protection type: shut down o/p voltage, re-power on to recover |
|
Over temperature |
TSW1(Power transistor) Temp>100? Shut down o/p voltage, re-power on to recover |
|
Environment |
Working temp. & humidity |
-10~+65ºC, 20%~90%RH |
|
Storage temp. & Humidity |
-10?~+85ºC, 20%~95%RH |
|
Vibration |
10~200Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z aexs |
|
Safety |
Withstand voltage |
I/P-O/P, I/P-FG:>1500VAC |
|
Isolation resistance |
I/P-O/P-FG:>100MΩ/500VDC |
|
Standards |
Safety standards |
Design refer to UL1950, CSA22.2, IEC60950 |
|
EMC standards |
Design refer to FCC Part 15 Class A |
|
Others |
Weight |
4.5kg |
|
Packing |
4pcs/20kg/carton |
|
Special function |
DC voltage adj., remote sensing, remote control, parallel operation |
