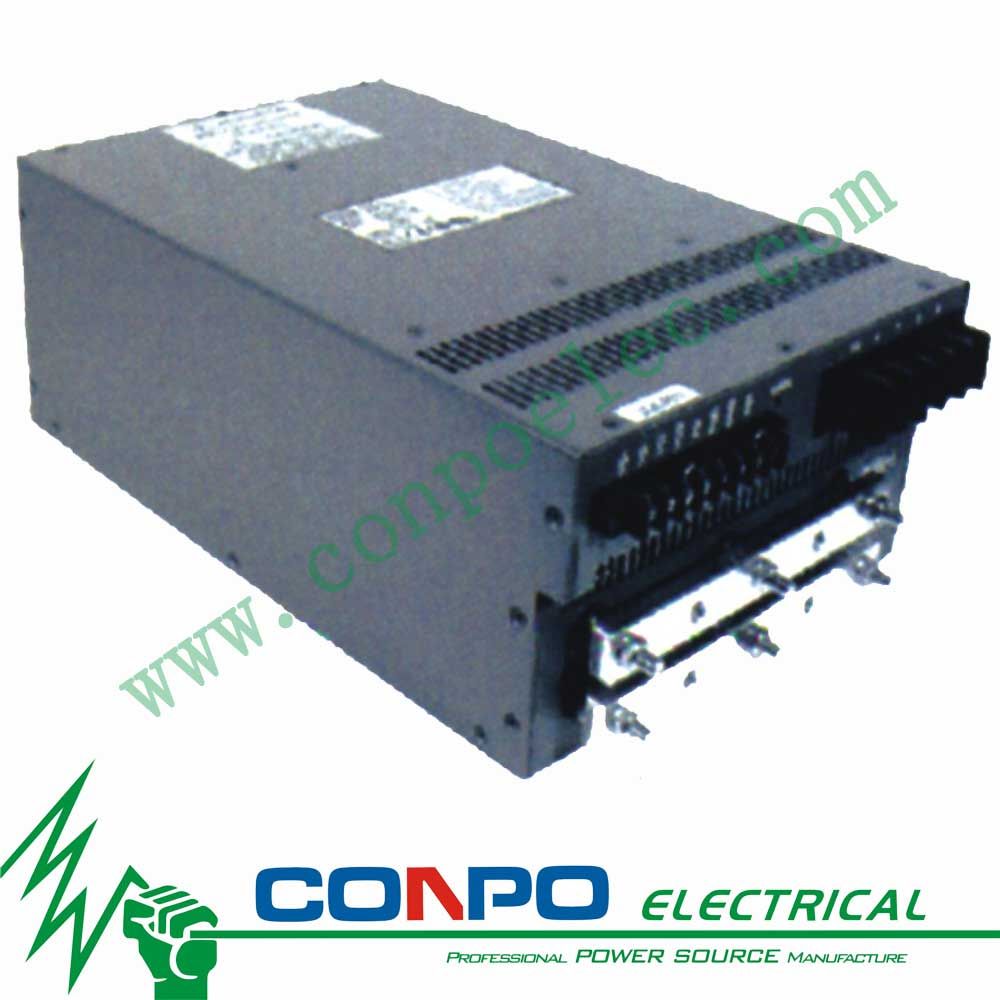

Switching-Mode Power Supply with Parallel Function & Pfc 2400W
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
HSCP-2K4-... |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
2 Years |
| Output Type: |
Single |
| Certification: |
CE, RoHS, SGS, ISO9001 |
| Output Power: |
2400W |
Product Description
Feature:
1. AC input 180~260VAC, 3Φ3 wire
2. AC 220V, 1Φ or 380V, 3Φ4 wire(option)
3. PF>0.98 @ 230VAC
4. Protections: Short circuit/over load/over voltage/over temp.
5. Built-in remote ON-OFF control and remote sense funciton
6. With good signal, parallel function(N+1)
7. Can adjust from 20%-100% output voltage by external control 1-5V
8. Forced air cooling by built-in DC fan
Remarks:
Custom-made specifications are acceptable.
Specification:
|
Model |
HSCP-2K4-9 |
HSCP-2K4-12 |
HSCP-2K4-15 |
HSCP-2K4-18 |
HSCP-2K4-24 |
HSCP-2K4-36 |
HSCP-2K4-48 |
HSCP-2K4-60 |
|
Output |
DC voltage |
9V |
12V |
15V |
18V |
24V |
36V |
48V |
60V |
|
Voltage tolerance |
+/-2% |
+/-1% |
+/-1% |
+/-1% |
+/-1% |
+/-1% |
+/-1% |
+/-1% |
|
Rated current |
266A |
200A |
160A |
133A |
100A |
66A |
50A |
40A |
|
Current range |
0-266A |
0-200A |
0-160A |
0-133A |
0-100A |
0-66A |
0-50A |
0-40A |
|
Rated power |
2400W |
2400W |
2400W |
2400W |
2400W |
2400W |
2400W |
2400W |
|
Ripple & noise |
90mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
200mVp-p |
DC voltage
adj. range |
Can adjust from 20%-100% output voltage by external control 1-5V |
Setup, rise, hold
time |
800ms 400ms 12ms at full load |
|
Input |
Voltage range |
180~260VAC 3Φ4 47~63Hz |
|
AC current |
15A/230VAC |
|
Efficiency |
83% |
84% |
85% |
86% |
88% |
88% |
89% |
89% |
|
Inrush current |
60A/230V |
|
Leakage current |
3.5Ma/240VDC |
|
Protection |
Over load |
110~140% |
|
Protection type: current limiting, delay shut down o/p voltage, re-power on to recover |
|
Over voltage |
110~135% |
|
Protection type: shut down o/p voltage, re-power on to recover |
|
Over temperature |
TSW1(Power transistor) Temp>100ºC Shut down o/p voltage, temp.<100ºC, O/I auto recovery |
|
Environment |
Working temp. & humidity |
-10ºC~+65ºC, 20%~90%RH |
|
Storage temp. & Humidity |
-10ºC~+85ºC, 20%~95%RH |
|
Vibration |
10~200Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
|
Safety |
Withstand voltage |
I/P-O/P: 3KVAC I/P-FG:>1.5KVAC O/P-FG:0.5KVAC |
|
Isolation resistance |
I/P-O/P-FG:>100MΩ/500VDC |
|
Standards |
Safety standards |
Design refer to UL1950, CSA22.2, IEC60950 |
|
EMC standards |
Design refer to FCC Part 15 Class A |
|
Others |
Weight |
9kg |
|
Packing |
1pcs/10kg/carton |
