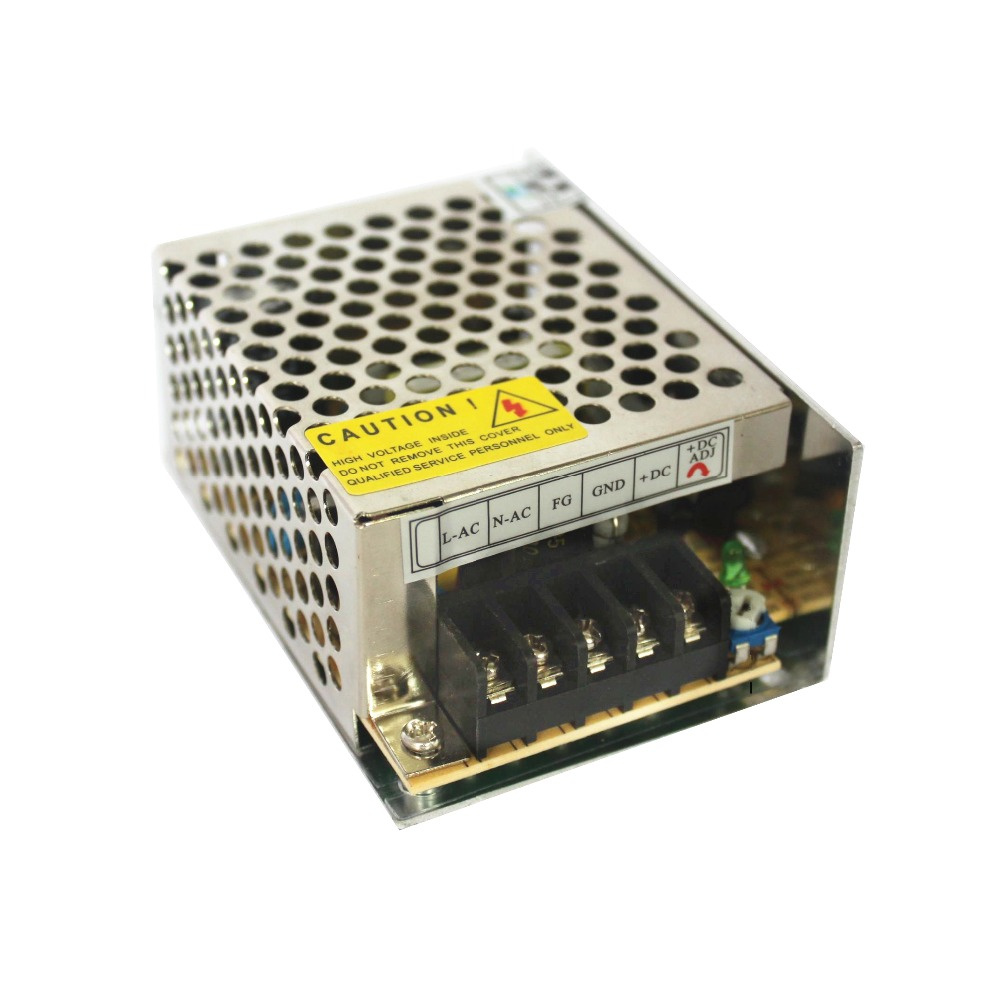

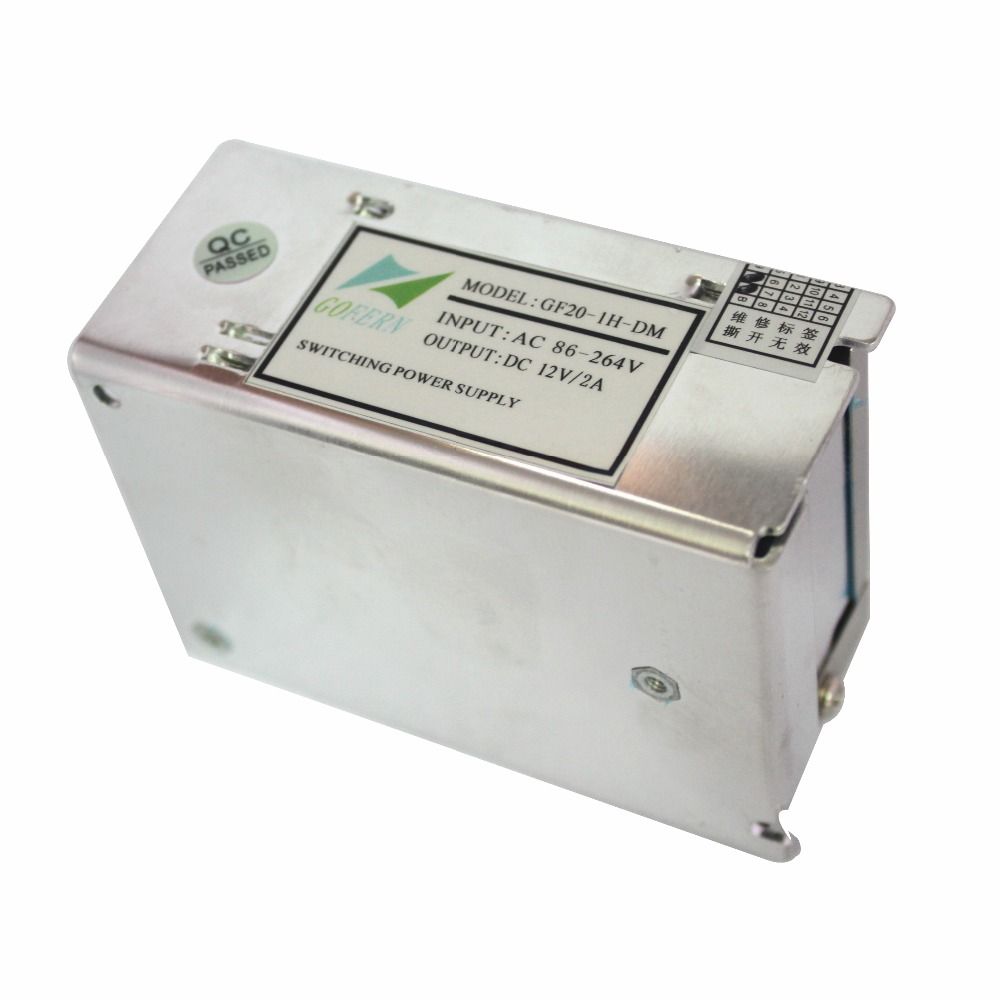

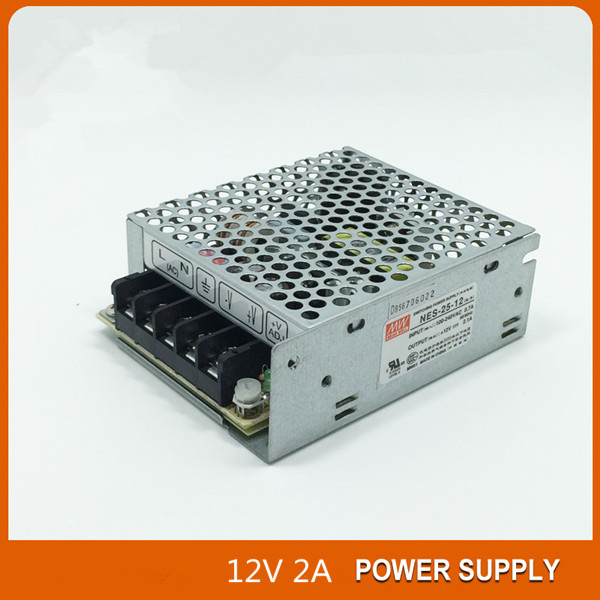

Switching Power Supply 12V 2A with Ce RoHS

Name: Switching Power Supply 12V 2A with Ce RoHS
Brand: all-electronics-online.com
SKU: 801217975
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	US $ 1.7-1.8/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-12V-2A
Input Frequency:	47-63Hz
Working Temperature:	-10-40
Output Current:	2A
Weight:	0.17kg
Output Type:	Single
Output Power:	201 - 300W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Level 1 Power Distribution Equipment
Certification:	RoHS

Product Description

Basic Info

place of origin:	Shenzhen,China	brand name:	louita	model no.:	LYD-12V-2A
output type:	single	output frequency:	50/60hz	dimension:	85X58X33mm
material:	Aluminium	weight:	0.17kg

Product Description
Features:
Using pulse width modulation (PWM) switching technology design,
is composed of the new highly efficient switching power supply chip, high reliability;
Built-in EMI filter,
100% load aging, over voltage, over current and short circuit protection;
Shell adopts hanging type design, input and output terminal connections, installation is simple and quick.

OUTPUT	DC VOLTAGE	12V/24V
	RATED CURRENT	2A/1A
	RATED POWER	24W
	Size	855833mm
	Weight	0.2256g
	Warranty	2 years
	RIPPLE & NOISE (max.) Note.2	150mVp-p
	VOLTAGEADJ. RANGENote.5	10.8 ~ 13.2V/22.4 ~ 25.6V
	VOLTAGE TOLERANCE Note.3	±2.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±1.5%
	SETUP. RISE TIME Note.7	2500ms, 80ms at full load 230VAC /115VAC
	HOLD UP TIME (Typ.)	16ms at full load 230VAC /115VAC
INPUT	VOLTAGERANGE	90 ~ 305VAC 127 ~ 431VDC
	FREQUENCYRANGE	47~63HZ
	EFFICIENCY (Typ.)	93%
	AC CURRENT (Typ.)	4A / 115VAC 2A / 230VAC 1.2A / 277VAC
	INRUSH CURRENT (Typ.)	COLD START 75A/230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
PROTECTION	OVER LOAD PROTECTION	95 ~ 108%
	OVER LOAD PROTECTION	105%-135% constant current limited, auto-recovery
	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.	-40 ~ +70°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80°C, 10 ~ 95% RH
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

Product show:

With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.

Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
