| Prod Model: |
XRP7664IDTR-F |
| Number Of Outputs: |
1 |
| Output Type: |
Adjustable |
| Output Voltage (V): |
0.925 to 16 |
| Maximum Output Current (a): |
2 |
| Minimum Input Voltage (V): |
4.75 |
| Maximum Input Voltage (V): |
18 |
| Switching Regulator: |
Yes |
| Efficiency (%): |
93 |
| Minimum Operating Temperature (°c): |
-40 |
| Maximum Operating Temperature (°c): |
85 |
Product Description
Hello, Thank you for your visiting!
We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation. | Lead time | Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery. |
| Guarantee | 100% original assembled new ; 30 days warranty |
| Payment | Hang Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express as you require |

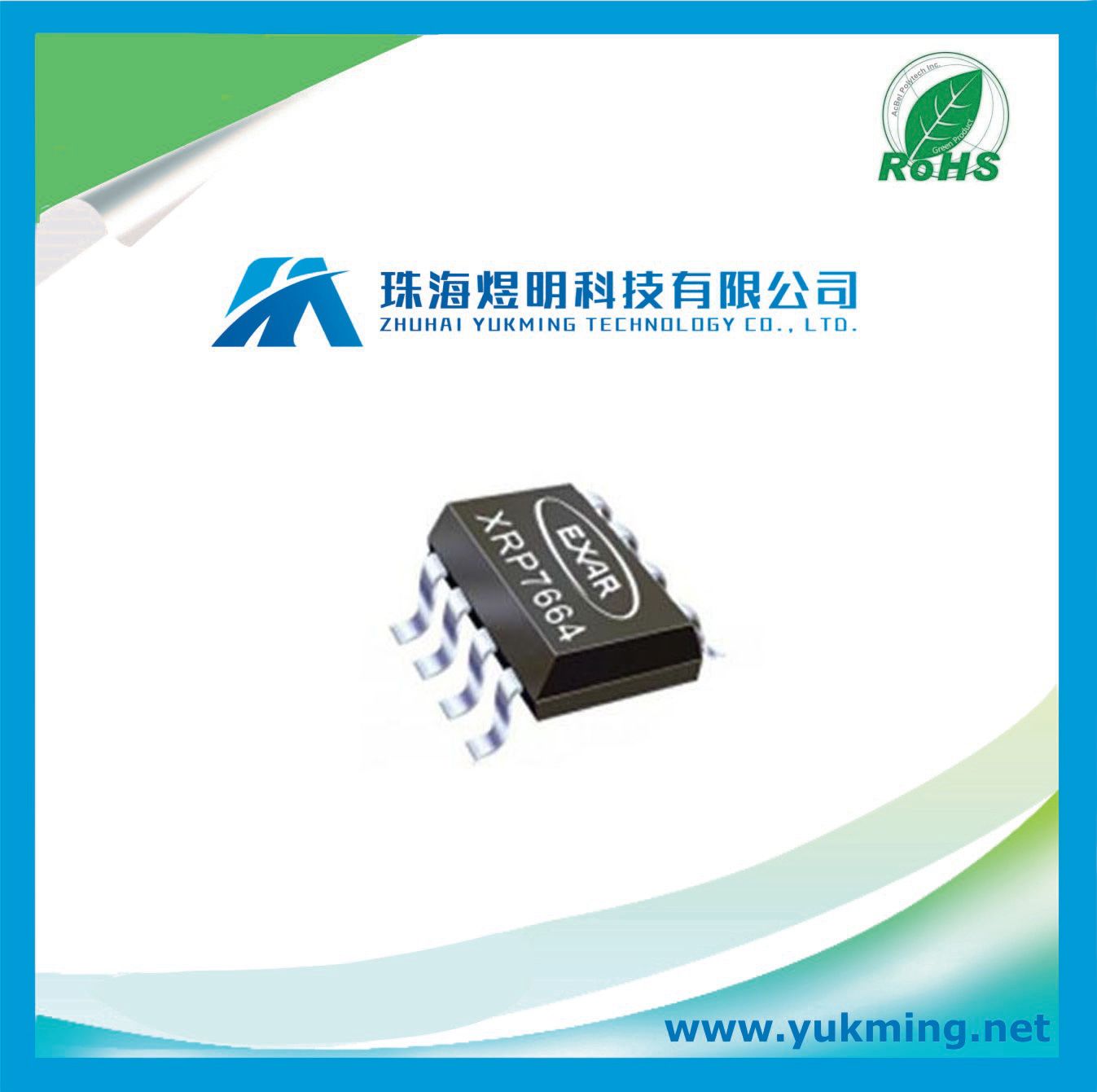

MANUFACTURERExar PRODUCT CATEGORYDC to DC Converter and Switching Regulator Chip DESCRIPTIONConv DC-DC 4.75V to 18V Synchronous Step Down Single-Out 0.925V to 16V 2A 8-Pin SOIC N T/R Adjust the voltage level of your devices with this step down XRP7664IDTR-F DC to DC converter from EXAR. This converter's single output can produce a current up to 2 A. It only needs a voltage of at least 4.75 V while not exceeding 18 V to effectively power your circuit. With an adjustable output that has a voltage of 0.925 to 16 V, this is power management at its best. This converter is 93 % efficient. Its switching regulator has a frequency of 380 kHz. SpecificationsEU RoHS Compliant Type Synchronous Step DownNumber of Outputs 1Output Type AdjustableOutput Voltage (V) 0.925 to 16Maximum Output Current (A) 2Minimum Input Voltage (V) 4.75Maximum Input Voltage (V) 18Switching Regulator YesEfficiency (%) 93Minimum Operating Temperature (°C) -40Maximum Operating Temperature (°C) 85Packaging Tape and ReelMounting Surface MountPackage Height (mm) 1.65(Max)Package Length (mm) 4.9Package Width (mm) 3.9PCB changed 8Standard Package Name SOPSupplier Package SOIC NPin Count 8Lead Shape Gull-wingMAJOR FEATURES
• Pin/Function Compatible to
MP1482
• 2A Continuous Output Current
• 4.75V to 18V Wide Input
Voltage
• PWM Current Mode Control
340kHz Constant Operations
Up to 93% Efficiency
• Adjustable Output Voltage
0.925V to 16V Range
3% Accuracy
• Programmable Soft-Start and
Enable Function
• Built-in Thermal, Over Current,
UVLO and Output Over Voltage
Protections
• RoHS Compliant, "Green"/
Halogen Free 8-Pin SOIC
Package
TYPICAL APPLICATIONS
• Distributed Power Architectures
• Point of Load Converters
• Audio-Video Equipments
• Medical & Industrial Equipments | Part No | Package | Operating temperature range | Comments |
| XRP7664IDTR-F | SOIC-8 | -40°C≤TA≤+85°C | 2.5K/Tape & Reel |
Any items you need, please send the BOM List to us, we will for sure to supply you not only with new and original products but also the best service by our professional team who are with us since our head office in Shenzhen was set up in 2009!
