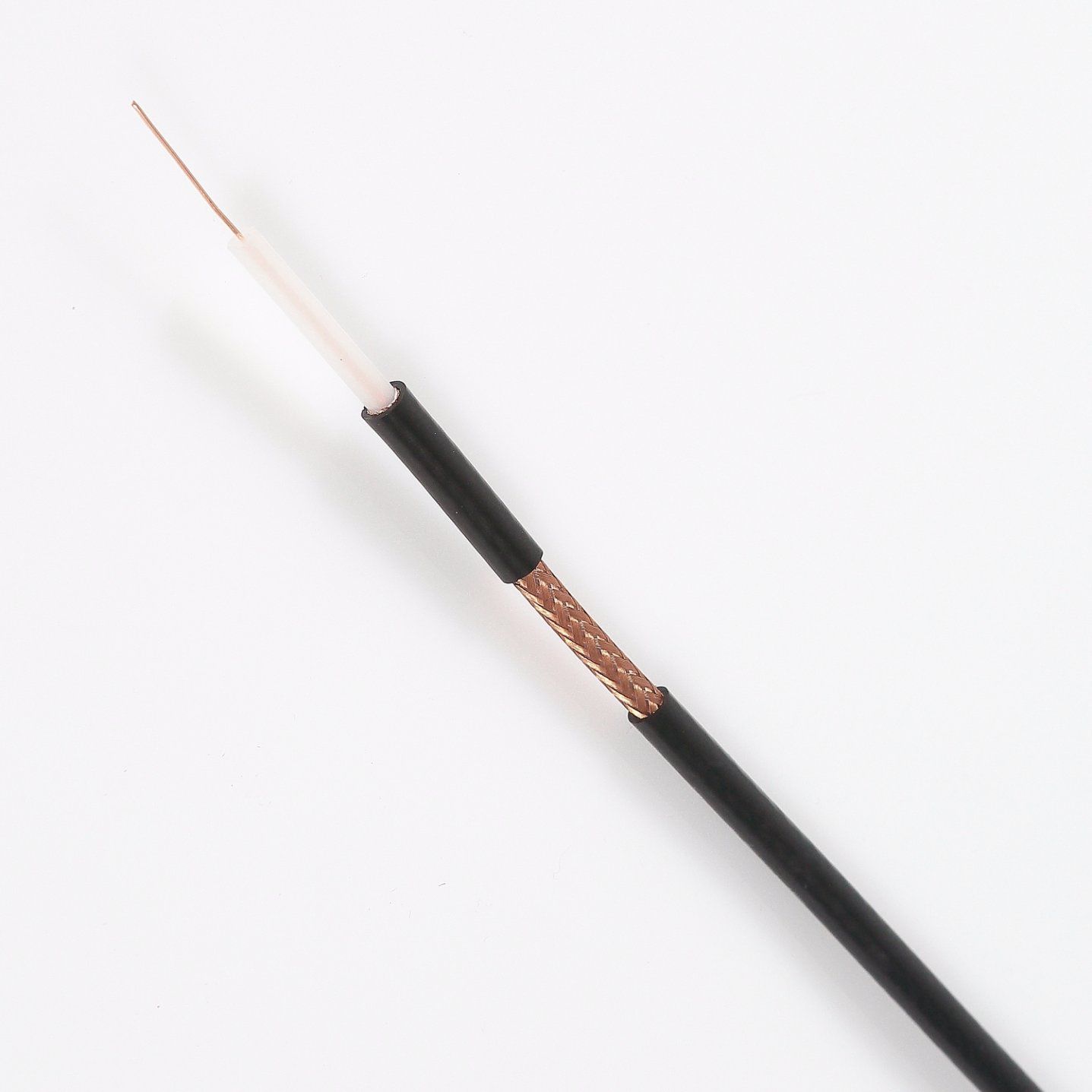

Syv75-5 Coaxial Cable 75ohm

Prod Model:	SYV75-5
Braid Material:	Al-Mg, CCA, Bc, Tc
Impendance:	75±3 Ω
Capacitance:	54 PF/M
Color:	as Client's Request
Application:	TV/CCTV/CATV Communication
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Model:	Syv75-5
Brand:	Jiuxin

Product Description

China manufacturer  syv 75-5 coaxial cable price


Name:75Ω Video Monitor Coaxial Cable
Type:SYV75-5
Structure:inner conductor 0.5 bare copper
Insulation:PE
Outer conductor:1.cCa 2. Braid cCa #64
sheath:Black PVC
Length:100m/roll; 200m/roll; 300m/roll
Resistanace:75Ω
Suitable temperature:-25 °c~-+70 °c.
Relative temperature:98% at 40ºC
Wire laying temperature not less -10 °c

NAME	SYV-75-5 coaxial cable	STANDARD	GB/T14864-1993	PRODUCT NO.
SPECIFICATION
STRUCTURE		SIZE	MATERIAL	COLOR
1	CONDUCTOR	0.8±0.01mm	CCS	yellow
2	INSULATION	4.57±0.10mm	FPE	white
4	WIRE BRAID	60%	Al Foil + Al Braid	Silvery white
5	JACKET	6.91mm	PVC	black/white
ELECTRICAL & PHYSICAL PROPERTIES
ITEM			UNIT	VALUE
CAPACITANCE			Pf/m	50
IMPEDANCE			Ω	75
VELOCITY RATIO			%	85
SPARKER TEST			VAC	4000
SRL			DB	20


Product Description
 1.Suitable for video field,communication system and signal control system.
Video monitoriong circuit,radio signal control.
Public television antenna.Cosed-circuit-television monitoring system.
2.Used for wireless communication transmission system and control oney-way or high frquency machine internal wiring.

3.allows the minimal bending:indoor is not less than 5 times the cable diameter. outdoor is not less 10 times the outerdiameter of cable.

Applications:
1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite

Packing details:
 1. Packing Lengths: 100m/roll, 200m/roll, 300m/roll, 500m/roll.
2. Inner packing: Wooden reel, plastic reel, and paper reel.
3. Outer packing: Carton box, pull out box, pallet available.
4. Other packing available according to client's request.

Question & Answer
 1. What is your MOQ?
Generally, we make mass production based on MOQ 500pcs, single blister packing, since our sub-supplier ask
for 500pcs MOQ for blister. So if bulk package is ok for you, we can accpet lower order quantity.

2. How about your delivery date?
Normally our delivery date is about 25-30days after payment received.

3. Can you supply sample for customer
We can supply sample for customer's quality checking before placing new order to us, the delivery
cost will be charged on customer's account.

4. How about your price?
We will do our best to offer a good price for our customers, usually our price is worked out according
to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!

About US

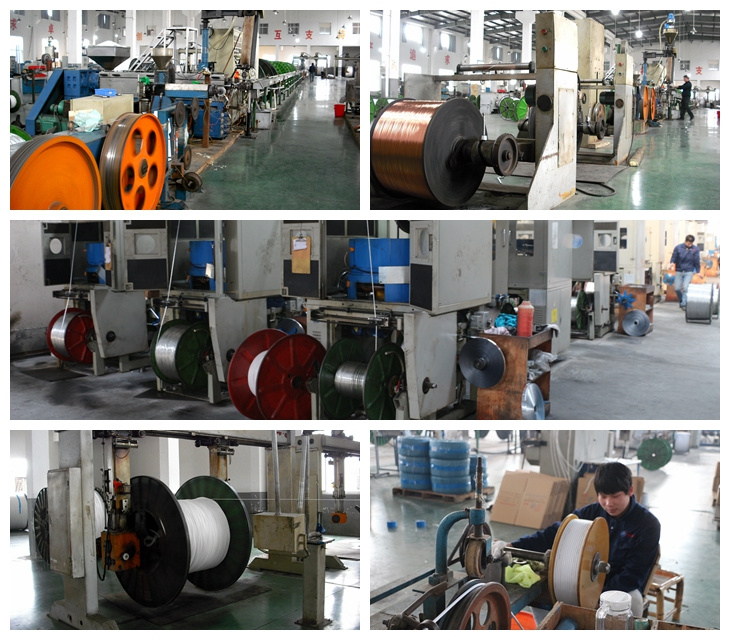

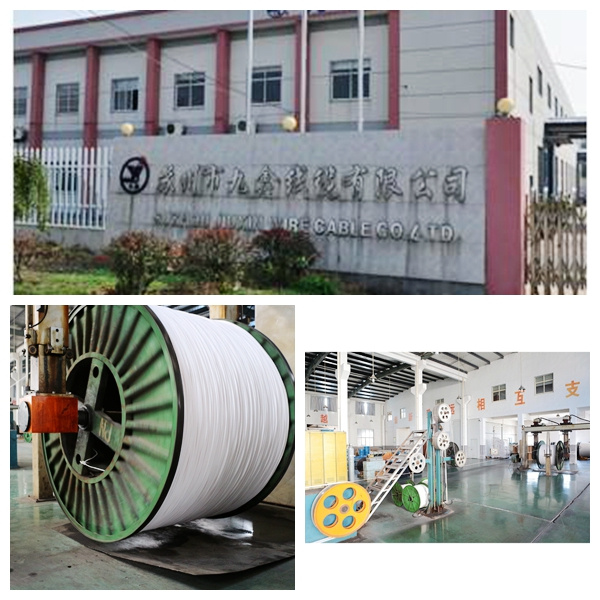

Suzhou Jiuxin Cable Co. Ltd was founded in 2003. is a professional manufacture of coaxial cable. located in Qidu town ,Wujiang District of Suzhou City. Company occupies the workshop area 3000 square meters, and employs 200 people.

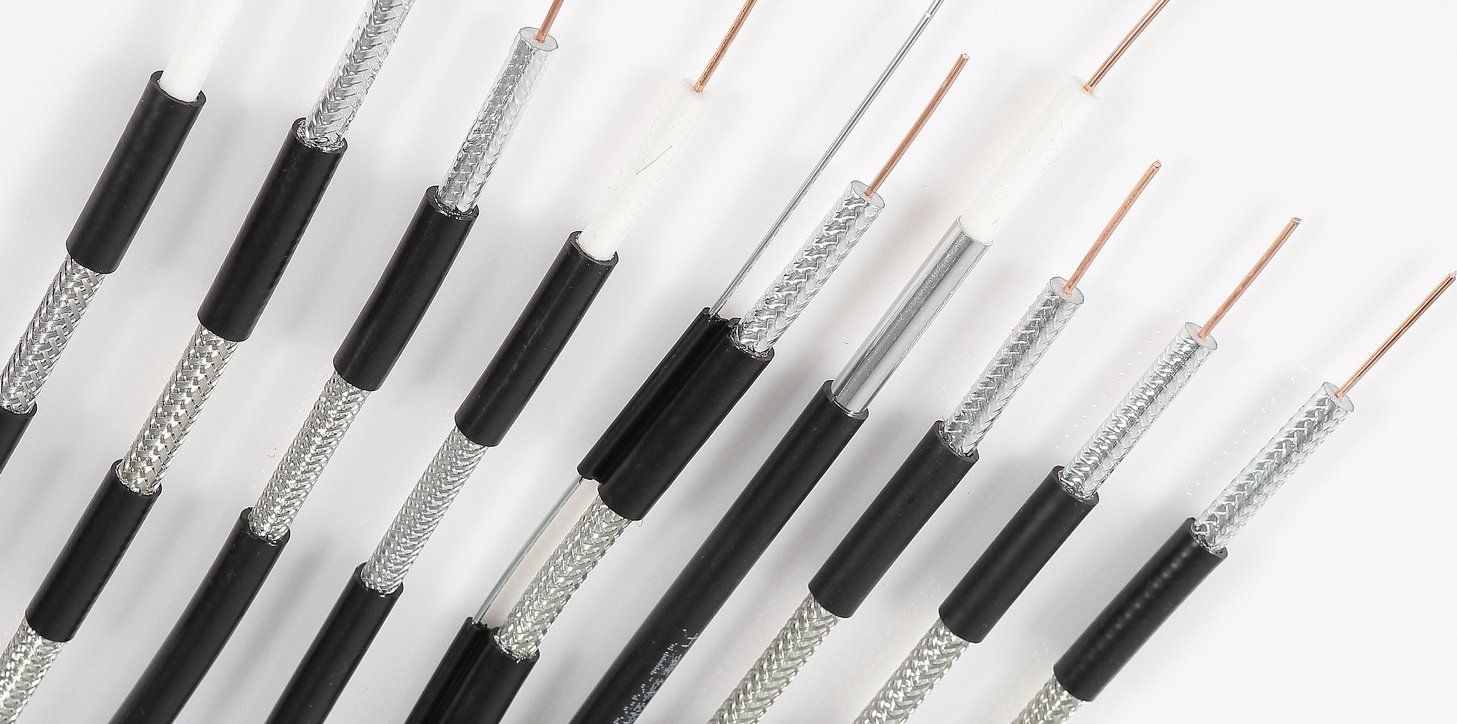

The company mainly produces CATV television cable (coaxial cable) SYWV75-5 series, SYWV (Y) 75-7 series, SYWV (Y) 75-9 series, SYWV (Y)75-12 series, SYWLY75-9/12 aluminum pipe cable series, RG6 series and RG11 series and so on. Inspection by professional organizations, the company's products meet national standards, and we have got  SARFT registration certificate and ISO quality system certification.
