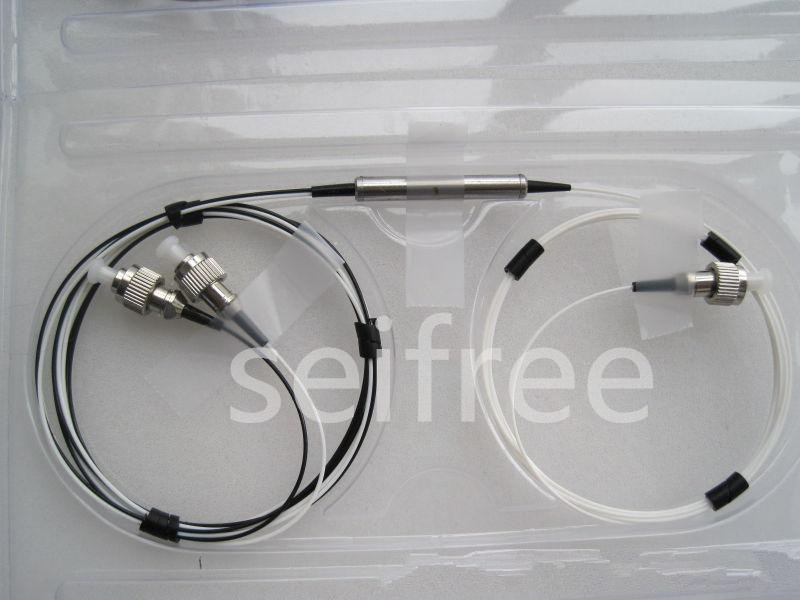

T1490 R1310/1550 Optical Wdm with FC/Upc Connectors

Name: T1490 R1310/1550 Optical Wdm with FC/Upc Connectors
Brand: all-electronics-online.com
SKU: 698105682
Availability: InStock
Rating: 4.6 (27 reviews)

Price:	US $ 8-16/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	STWDM-D-55-34-E-09-10-A6-FU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wavelength:	1310/1490/1550nm
Connector:	LC/FC/Sc...
Fiber Type:	Single Mode
Configuration:	Mux/Demux
Usage:	Server
Type:	Wired
Support Network:	3G
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

Description
The Triple-play WDM Based on thin-film filters technology and epoxy-free optical patch. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

Applications Features
Network Expansion/Monitoring Low Excess Loss
Bi-Directional Systems Wide Pass Band
WDM Systems High Reliability
CATV system

Ordering Information
STWDM-       -       -       -       -       -       -       -

Config.	Trans. Windows	Refl. Windows	Fiber Type	Pigtail Dia.	Pigtail Length	Package	Connector Type
M=Mux	31=1310nm	31=1310nm	E=SMF-28e	09=0.9mm	05=50cm	A6	FU(A)=FC/UPC(APC)
D=Demux	49=1490nm	49=1490nm	B=SMF-28e XB	20=2mm	10=100cm	B1(2)	SU(A)=SC/UPC(APC)
MD=M&D	55=1550nm	55=1550nm		30=3mm		C1(2)
	62=1625nm	62=1625nm			20=200cm	D(1, 3)	LU(A)=LC/UPC(APC)
	X=Customization

Package and Mounting Dimension (mm)

Stainless Steel Tube (A)

Plastic Box (B)

Aluminum alloy Box (C)

Aluminum alloy Rack (D)

Outline

Mounting

Outline

Mounting

Outline

A1=Φ3x50

A5=Φ5.5x34

B1=90x20x9.5

50x12x2Φ3.2

C1=85x18x8.4

44.5x13x2Φ3

D1=129x29x160(LGX)

A2=Φ3x54

A6=Φ5.5x38

B2=100x80x10

70x73.5x4Φ3.2

C2=90x72x8

86x68x4Φ3

D2=129x58x160(LGX)

A3=Φ3x60

A7=Φ5.5x50

B3=120x80x18

80x74.5x4Φ3.2

C3=110x95x7.5

99x84x4Φ3.5

D3=485x43.5x230(19' Rack)

A4=Φ5x70

A8=Φ5.5x64

B4=141x115x18

100x106x4Φ3.2

C4=110x95x15

99x84x4Φ3.5

D4=485x87x230(19' Rack)

Item

φ0.25 Stainless

φ0.9 Stainless

φ2/3 Stainless

φ0.9(φ2,φ3) Plastic

φ0.9(φ2/φ3) Aluminum Alloy

LGX

19' Rack

1X2

M&D

Specification

Operating Wavelength(nm)	1260~1620/1260~1650
Transmission Band	1260~1360	1260~1500	1260~1570	1525~1650	1480~1500	1615~1650	1535~1565
Reflection Band	1430~1620	1525~1620	1600~1650	1260~1500	1260~1450	1260~1580	1260~1500
					1525~1620
Insertion Loss (In->TX@λTB) (dB)	<0.8
Insertion Loss (In->RX@λRB) (dB)	<0.6
Isolation (In->TX@λRB) (dB)	>25/30/35/40
Isolation (In->RX@λTB) (dB)	>15/18/20/25
PDL (dB)	<0.1
Insertion Loss Temperature Sensitivity (dB/ºC)	<0.005
Wavelength Temperature Shifting(nm/ºC)	<0.002
Directivity (dB)	>50
Return Loss (dB)	>40
Fiber Type	SMF-28e/ SMF-28e XB
Pigtail Dia. (mm)	0.25 /0.9 / 2 / 3
Pigtail Length (cm)	>50
Power Handing (mW)	<500
Operating Tem.(ºC)	-20~ +70
Storage Tem.(ºC)	-40~ +85
