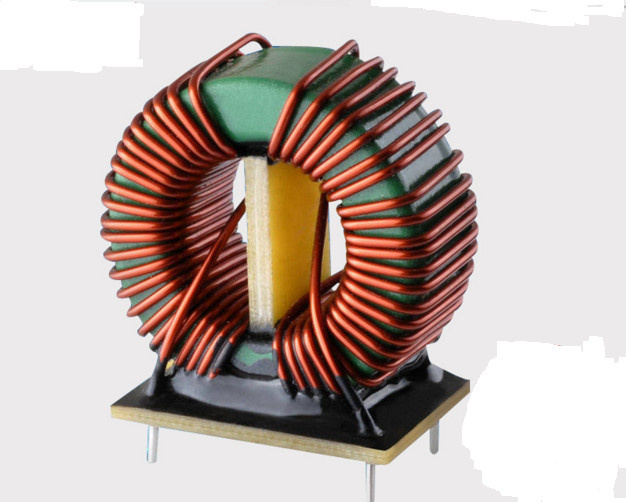

T311915 Two Phase Common Mode Choke with Interblock

Name: T31*19*15 Two Phase Common Mode Choke with Interblock
Brand: all-electronics-online.com
SKU: 806895275
Availability: InStock
Rating: 5 (52 reviews)

Price:	US $ 0.3-0.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T311915
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	Tdw

Product Description

Product Description

Toroid core datas	COILFORMER DIMENSIONS (mm)
TYPE	OD	ID	H	MASS (G)
T3.0	3.05	1.27	1.27	0.04
T3.9	3.94	2.24	1.3	0.05
T3.9/2	3.94	2.24	2.0	0.07
T4.0	4.0	2.4	1.6	0.06
T5.8	5.84	3.05	1.52	0.1
T5.8/3	5.84	3.05	3.0	0.3
T6.3	6.3	3.8	2.5	0.2
T9.5	9.53	4.75	3.17	0.8
T10	10.0	6.0	4.0	0.9
T12.5	12.5	7.5	5.0	1.8
T13.3	13.3	8.3	5.0	1.8
T14	14.0	9.0	5.0	2.0
T15	15.0	10.4	5.3	2.4
T16	16.0	9.6	6.3	3.7
T17	17.0	10.7	6.8	4.4
T20/7	20.0	10.0	7.0	7.6
T22	22.1	13.7	6.35	6.8
T23/8	22.6	14.7	7.6	8.1
T23/9	22.6	14.7	9.2	9.8
T25/10	25.3	14.8	10.0	16
T25/12	25.3	14.8	12.0	19
T25/15	25.3	14.8	15.0	24
T25/20	25.3	14.8	20.0	33
T29	29.5	19.0	14.9	27
T30	30.5	20.0	12.5	25
T34/10	34.0	20.5	10.0	27
T34/12.5	34.0	20.5	12.5	33
T36	36.0	23.0	15.0	43
T40	40.0	24.0	16.0	61
T42	41.8	26.2	12.5	48
T50	50.0	30.0	20.0	118
T58	58.3	40.8	17.6	115
T100	102	65.8	15.0	330
