T70 Split Core Current Transformer

Name: T70 Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 791956355
Availability: InStock
Rating: 4.6 (78 reviews)

Price:	US $ 2-8.3/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T70
Color:	Black
Accuracy:	Within 1%
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

Split Core Current Transformer

SPECIFICATIONS :
1,Rated Voltage:0.66KV
2,Insulation Voltage:2KV
3,Rated Frequency:50HZ or 60HZ
4,Operating Temperature:-15ºCto 60ºC
5,Flame resistance:UL94-V0
6,Certificates:CE,UL

FEATURES:
1,Small cost
2,Split core design ,Easier installation
3 Build diode ,no high voltage danager
4,Good linearity at very low current

XH-SCT-T70 Split Core Current Transformer
Specification:
Rated primary current: 100 to 1500A AC
Rated secondary current: 5 or 1A AC
Rated load: 1, 2.5, 5.0, 10 and 30VA
Accuracy: 0.5, 1.0 and 3.0 class
Rated short-time thermal current (Ith): 20In
Rated dynamic current (Idyn): 2.5Ith
Highest voltage for equipment (Um): 720V AC RMS
Rated power-frequency withstand voltage: 3, 000V AC RMS
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C
Split core design, safer, easy to install and portable
Accessories: Supplied with feet for base mounting if required

Applications:
Current, power, energy and monitoring devices
Relay protection devices
Power factor correction devices

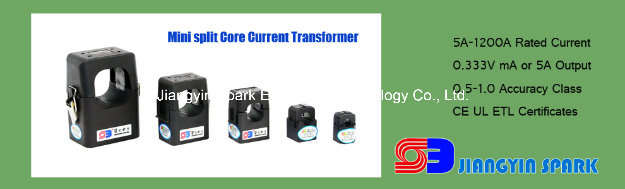

Available in 5 standard sizes
Standard: IEC 60044-1
RoHS Directive-compliant

DIMENSIONS( mm ):
70mm hole diameter

SPECIFICATION:
Model Input(A) Max current(A) coil ratio accuracy Output
SCT0070-1500/5A 100A-1500A 1500 200:1 0.5class 1A or 5A

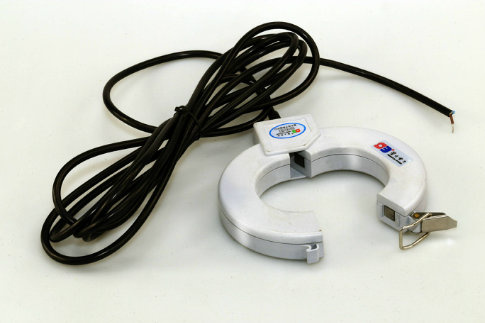

Clamp on Current Transformer 1500A/5A with 70mm hole diameter
1)Clamp-on Current Transformer 70mm hole diameter
2) Current Range 1500A
3)Accuracy class 0.5
4)Secondary current: 5A
5)ABS plastic casing
6)1.0M length black and red wire lead

Why choice split core current transformer from Jiangyin spark?

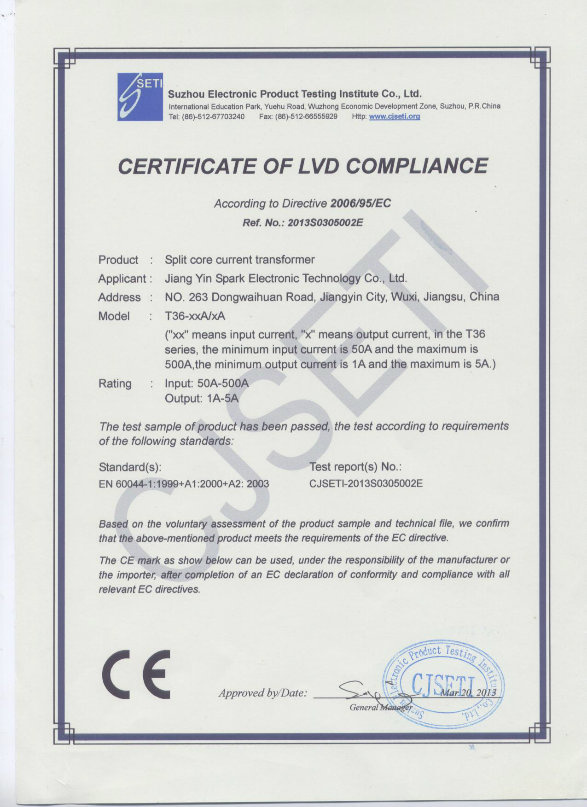

CE UL ETL, have good reputation in the market.
Our 60A/0.333V split core ct's accuracy can catch 0.3%, and it's price is the lowest on the market.
We still have very low current split core ct, 5A/0.333V, accuracy can reach within 0.5%.
Since 1995, have rich experience, 4-20mA/0.333V/0-10V/0-5V output we all have.

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
