Yueqing Kampa Electric Co., Ltd. >> T90 12V 24V 30A T90 (jqx-15f) 5 Pin Mini PCB Relay

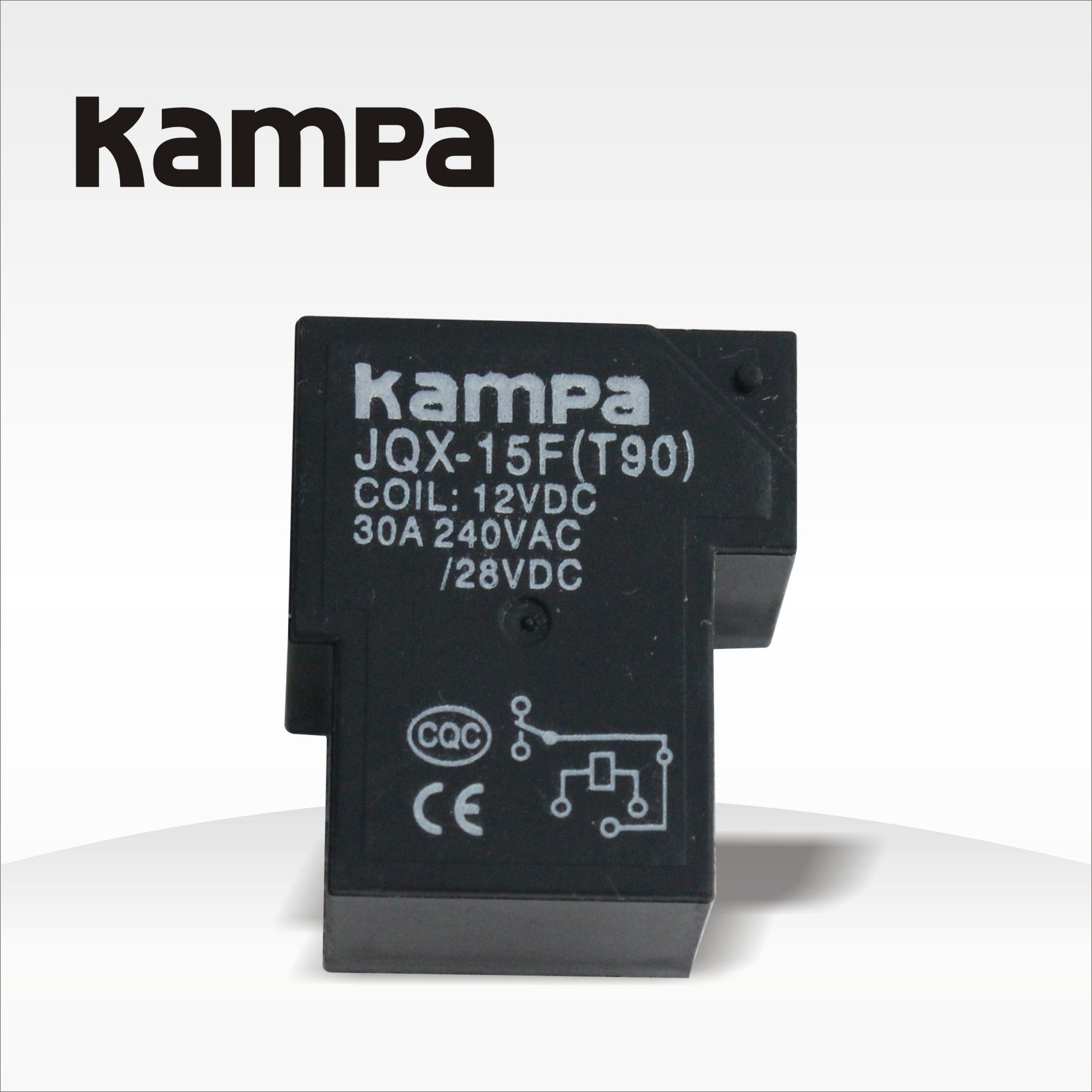

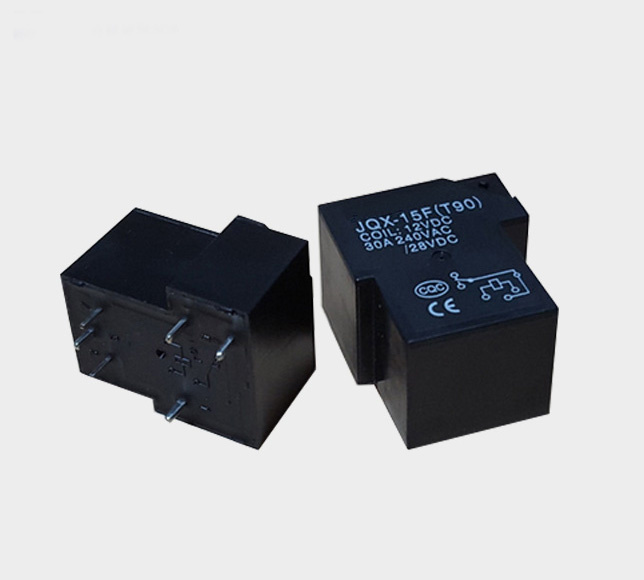

T90 12V 24V 30A T90 (jqx-15f) 5 Pin Mini PCB Relay

T90 12V 24V 30A T90 (jqx-15f) 5 Pin Mini PCB Relay
Price: US $ 0.385/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: T90
Contact Type: 1z,1h,1d
Contact Overload: 40A.30A 240VAC/28VDC
Rated Coil Power: DC0.93W,AC1.2va
Coil Specification: DC3V`110V AC6V~250V
Dimension: 440X310X345

Product Description

Coil sensitivityCoil voltage codeNominal voltageNominal current (mA)Power consumption(W)Pull-in voltage(VDC)Max-allowable voltage)VDCDrop-out voltage(VDC)
SLA055185Abt 0.93w75%Max120% Max10% Max
066150
09993
121277
151559
181847
242436
484820
1101109
TypeSLA
ItemFORM AFORM BFORM C

Resistive Load(cosF=1)

General Motor

30A 250VAC

30A 30VDC

250VAC 2HP

120VAC 1HP

15A 250VAC

10A 30VAC

250VAC 0.5HP

120VAC

0.25HP

N/0

20A 250VAC

20A 30VDC

250VAC 2HP

120VAC 1HP

N/C

10A 250VAC

10A 30VDC

250VAC 0.5HP

120VAC 0.25HP

Ballast10A 277VAC3A 277VAC10A 277VAC3A 277VAC
LRA-FLA240VAC 80/30240VAC 30/10240VAC 50/20240VAC 20/7
ItemSLA
Contact resistance100mW  Max
Operation Time15msec Max
Release Time10msec Max

Dielectric strength

Between coil&contact

Between Contacts

2000VAC 1500VAC
Insulation Resistance100MW min(500VDC)
Operating Ambient temperature-25~to +70ºC
Operating humidity45 to 85% RH
Coil temperature rise60 deg Max

Vibration Endurance

Error operation

10 to 55HZ double amplitude 1.5mm

10 to 55HZ double amplitude 1.5mm

Shock Endurance Error operation

100m/sec²(abt 100gs)

10m/sec(abt 10gs)

Life Expectancy mechanically Electrically

1000000

100000

Weightabt 20g

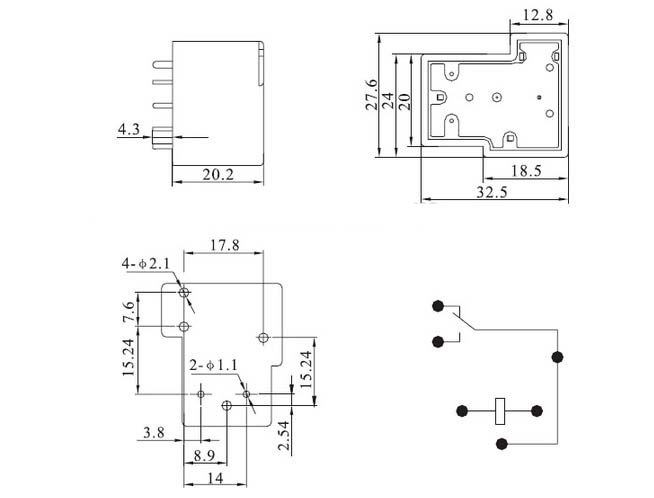

  3.Dimension








A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
