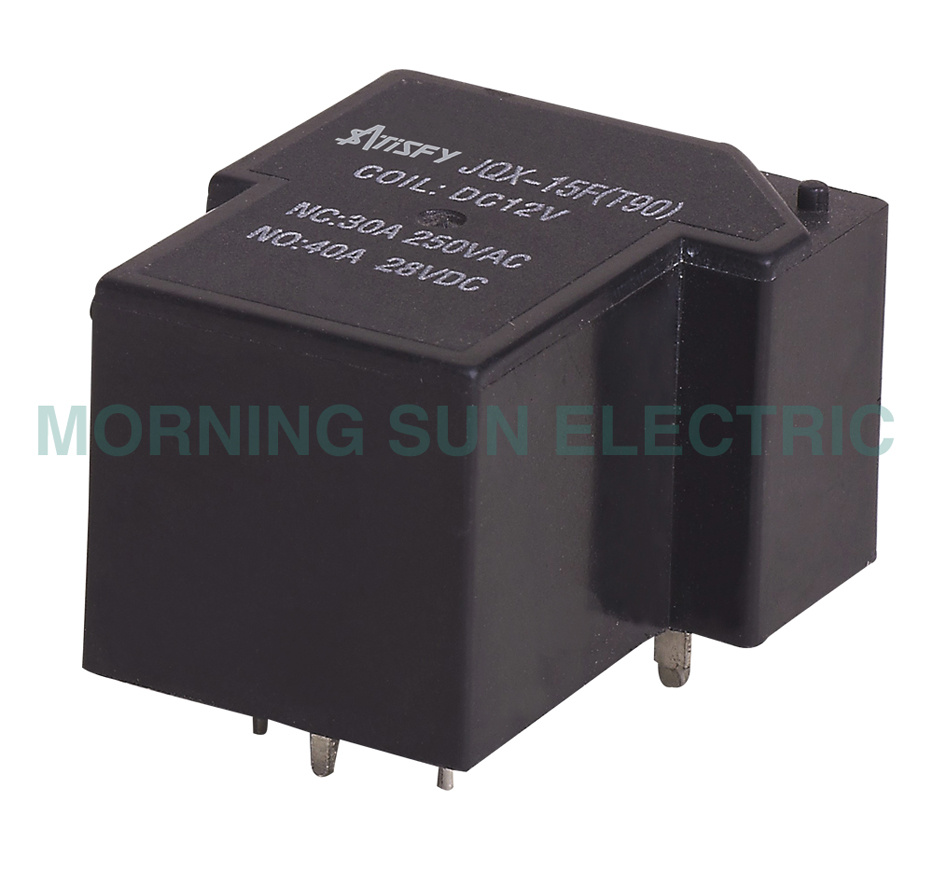

T90 PCB Relay

Name: T90 PCB Relay
Brand: all-electronics-online.com
SKU: 694636535
Availability: InStock
Rating: 4.8 (104 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Automotive PCB Relay
Relay size: 19X15.4X15.6
Contact arrangement: 1A, 1C
Contact capacity: 10A/12A 120VAC 7A 250VAC
Max. Switching voltage: 30VDC/250VAC
Max. Switching power: 280W/1250VA
Coil voltage: 3~48VDC
Pull-in voltage: ≤ 75%
Release voltage: ≥ 5%
Operate/Release time: ≤ 8ms/5ms
Coil power: 0.36W
Contact resistance: ≤ 100MΩ
Insulation resistance: ≥ 100MΩ
Ambient temperature: -40oC~+85oC
Certifications: TUV, UL, RoHS, REACH
Contact Material: AgNi, AgSnO2

Model No.	JQX-15F(T90)
Contact Arrangement	1H, 1Z
Contact Material	Ag-Ni Alloy/AgSnO
Contact Rating (at Resistive Load)	30A, 250V AC 30A 30VDC


Max. Switching Voltage	250VAC, 30VDC
Max. Operating Power	6250VA
Max. Switching current	30A
Min. Switching Load	10mA 10VDC
Coil Rated Voltage	5VDC-48VDC
Coil Rated Current	18.75mA-180mA
Pick-up Voltage	75%Max. of nominal Voltage
Drop-out Voltage	10%Min. of nominal Voltage
Coil Resistance	27.8-2560Ω ± 10%(at 20)
Contact Resistance	Max. 50mΩ (initial)
Insulation Resistance	Min. 100MΩ at 500VDC
Dielectric Strength Between Coil & Contact Between Contacts	1800VAC 50 HZ/60 HZ (1 minute 1200VAC 50 HZ/60 HZ (1 minute)




Operate Time	Max. 15mSec.
Release Time	Max. 10mSec.
Ambient Temperature	-55~+85
Vibration Resistance (Endurance)	1.5mm D. A. 10-55HZ
Shock Resistance	Min. 10G Unerror
Mechanical Life	10, 000, 000 Operations (no load)
Electrical Life	100, 000 Operations (at rated load)
Terminal Strength	1500 500gr. For 1 minute at horizontal direction


Weight	Approx. 30g
