T93 PCB Relay

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

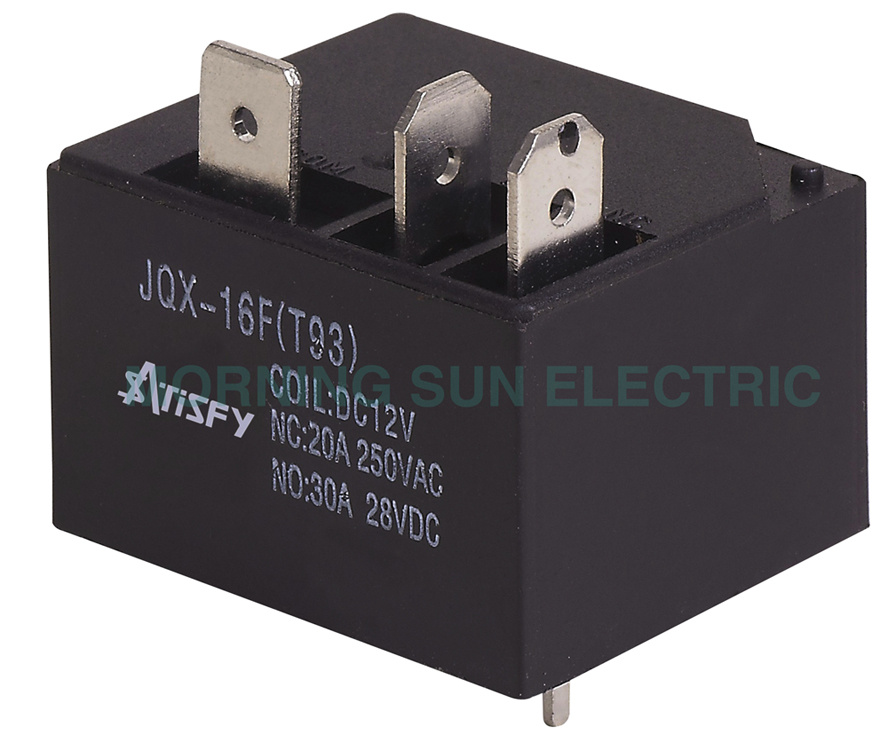

T93 PCB Relay, power relay, mini relay
1. Relay Dimension (mm): 32.1*26.9*20
2. Contact Form: 1H 1Z 1D
3. Coil power: 0.9W

T93 PCB Relay, power relay, mini relay

Model: JQX-30F(T93)
1) Outline dimensions: 32.1*26.9*20.0mm
2) Contact data:
A) Contact arrangement: 1A 1C 1B

B) Material: Silver alloy
3) Max. Switching current: 25A 30A

4) Max. Switching voltage: 28V DC / 250V AC
Max. Switching power: 840W/7.5kVA

Rated load(Resistive): 20 30A/250VAC

5) Coil data:
A) Nominal voltage: 3-110VDC/6-240VDC

B) Pick-up voltage: DC ≤ 75% AC ≤ 80%
C) Drop-out voltage: DC ≤ 10% AC ≤ 30%
D) Coil power: 0.9W

6) Specifications data:
A) Contact resistance: ≤ 50MΩ
B) Insulation resistance: ≥ 100MΩ
C) Dielectric strength Vr. M. S:
I) Between open contacts: ≥ 1500VAC
Ii) Between coil and contacts: ≥ 2500VAC
Iii) Between contacts form: ≥ 2000VAC
D) Ambient temperature: -55 - +100oC
E) Operation/release time: ≤ 15/10ms
