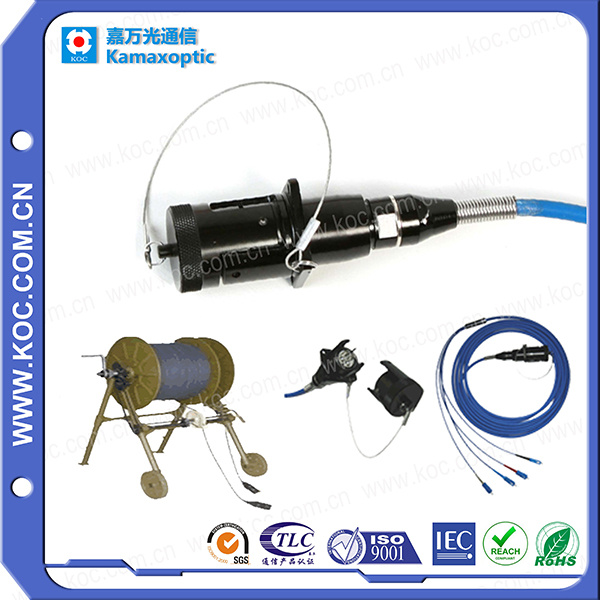

Tactical Optical Armored Patch Cord

Name: Tactical Optical Armored Patch Cord
Brand: all-electronics-online.com
SKU: 712822165
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	US $ 2-5/Piece
Trade Terms:	FOB,CFR
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Tactical Optical Armored Patch Cord
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fibers:	2~6 Cores
IP Class:	67
Fiber Type:	Single Mode, Multimode
Fiber Quantity:	2-4 Fibers or 5-6 Fibers
Crush Resistance:	600n Continuous, 800n Shock
Application:	Probe
Certification:	CE
Type:	Single-Mode or Multi-Mode
Connection Structure:	2.5mm or 1.25mm Ferrule
Brand:	Koc
Sheath Material:	PVC, Lszh, PE, Pue

Product Description

Key Features:
All dielectric, high mechanical performance and wide operating temperature range cable.
Standard neutral click-lock Tactical Connector is water resistant and dust-proof.
Neutral connectors that can provide direct connect between socket and flanging socket, socket and socket, flanging socket and flanging socket.
The pin design orientation ensures fast blind connection, and the precision ferrule gives enhanced interchangeable and repeat connection performance.
Special design reel with automatic cable arranger for fast and problem-free laying and retrieval.
Applications:
Millitary optical communication
Radar vehicle
Television re-broadcasting vehicle
Emergency repairing

Item	Parameter
Fiber Type:	Single Mode		Multimode
	2-4 fibers	5-6 fibers	2-4 fibers	5-6 fibers
Insertion Loss	≤1	≤1.2	≤0.8	≤1
IL Change Character	≤0.3
Repeatability	≤1.3	≤1.5	≤1.1	≤1.3
Times:	≥1000
Tensile:	≥1000
Vibration:	10Hz-500Hz, 98m/s 2
Crush:	490m/ s 2 , 11ms
Working temperature:	-40ºC- +85ºC
Temperature Crush:	-40ºC- +85ºC, three cycles
N 0 of Fibers:	2-6
Crush Resistance:	600N ( continuous ) 800N ( shock )

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
