Name: Tactile FPC Flexible Circuit EL Panel Membrane Switch
Brand: all-electronics-online.com
SKU: 715177035
Availability: InStock
Rating: 5 (49 reviews)

Price:	US $ 3-4/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-EL-013
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Exterior:	Good Looking
Touch Feeling:	Excellent Touch Feeling
Type:	Flexible
Application:	Telecommunication Equipment
Material:	EL Panel

Product Description

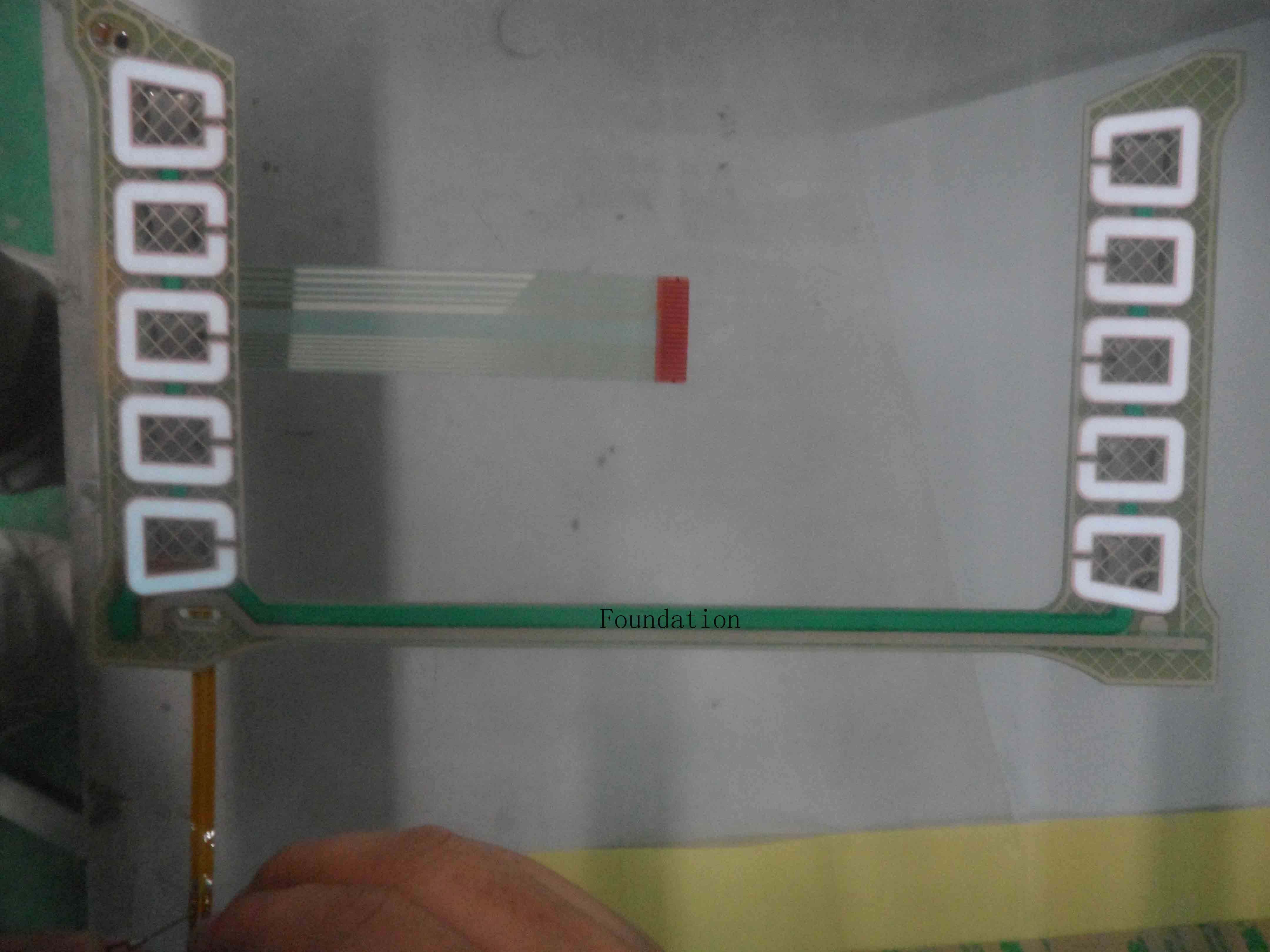

Tactile Fpc Flexible Circuit El Panel Membrane Switch

1) Custom made
2) Any size and shape available
3) Energy save product, low power consuming.
4) Withstand millions of cycles

Our membrane switches are widely used in:

3C Electronics,
Automobile industry
Decoration light project
Art work and gifts
Commercial usage.
Public facility

Both OEM and ODM orders are welcome.
1, Structure: a flexible plate (R) and rigid plate (Y)
    1), R structure: membrane switch panel layer, isolation layer, circuit layer of all the various different types of soft films, such as: PET, PC, PVC composition.
    2), Y structure: switch the graphics and lines are made in the ordinary double-sided printed circuit copper complex on both sides, through the metal holes will line both sides of communication, and welding in the back of the device, with a metal guide plate as guide through the maze touch the contact plate, then rub with pieces of wire wound into a flat cable.
    3, membrane switch using a film sheet
    Panel timber: British Ketu Tai and international cooperation with Third AUTO TEX products, the thickness of different specifications, there are (thickness 0.12 ~ 0.25UM) panel timber.
    PET with sand surface: F series (fine sand surface), V series (coarse sand surface). Have to play convex, two special chemical treatment after the polarity of good sheet, sand surface may be printed on a transparent window, liquid, smooth can be printed PVC, PC type ink.
    Hard coating chemical treatment of the PET: EBG (smooth) family of EBA (Matte) series
    PC hard coating film have different specifications: AUTOFLEXPC G (Glossy) AUTOFLEXPC A (Matte)
    Circuit layer with a sheet: a: AUTOTEX product specific PET.
    The thermal stability and anti-shrink treatment and adhesion treated PET sheet of smooth, there AUTOSTAT CT3, CT4, CT5, CT7, thickness, respectively 25,100,125 UM.
    The thermal stability and anti-shrink treatment and adhesion treated PET sheet mist for HT5, thickness 125UM.
    The thermal stability and anti-shrink treatment and adhesion treatment opaque white satin-like PET sheet for WT5, thickness 125UM.
    Isolation layer is usually 0.05 ~ 0.2MM thick PET, PVC, its thickness depends on the key spaces and isolated fenestrae size and form. Fenestrae is made of separate stamping.

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
