Product Description

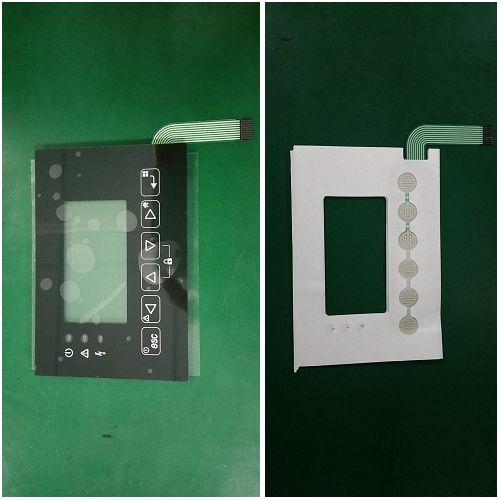

Flex & Rigid Membrane Switches
Details of Flex & Rigid Membrane Switches
The circuit of membrane switches can be flex and rigid. It depends on the customer end application and also related to the cost budget and other considerations. For example, life, resistance, connection type on main board etc.
For the flex circuit membrane switches, there are two types. They are silver printed PET circuit and copper etched FPC circuit. Their difference and advantages&disadvantages listed bellow:
Items | Silver Printed Circuit | Copper Etched FPC Circuit |
Material | PET (Polyester) | Copper |
Conductor | Printed silver | Copper |
Contact Fingers | Silver and Carbon | Gold plated |
Contact Buttons Pads | Silver | Gold plated |
Life & Reliability | normal | good |
Stability | normal | good |
Resistance | low | Very low |
Cost | low | high |
Lead Time | 2-3 days | 7-10 days |
Pitch | 0.5mm (not suggested), 1.0mm,1.27mm,2.54mm | 0.5mm, 1.0mm,1.27mm,2.54mm |
Usually if the membrane switches need assembled many LEDs, then we suggest to use FPC circuit, it can get more stable LED soldering quality. For the normal application the PET circuit is enough, which is more economical. In addition if the conductor pitch is 0.5mm, although we also can print it, but we still suggest to use FPC circuit. Because of that 0.5mm pitch is too small and it is easy to occur the short circuit problem.
For the Rigid circuit membrane switches, the circuit is rigid printed circuit board. The material of rigid PCB is usually FR4 and Copper. By this type of membrane switch, the connector usually is the SMD connector(sometimes also can be straight through connector). For some application which need very stiff capability, then use PCB circuit membrane switch.
Dongguan LuPhi Electronics Technology Co., Ltd. is a professional manufacturer of high quality HMI products and electronics project assembly, offers a wide range of innovative membrane switch panel capabilities. LUPHI utilizes the latest switch panel technologies, high quality imported raw materials and specializes in integrated switch panel assemblies. These membrane switch panels are ideal for a variety of medical industry application. LUPHI's membrane switch panels can be ergonomically designed for ease of use.
LUPHI's dynamic membrane switch panels feature embossed graphics, integrated LED's, selective solvent resistant textures, colored window displays, waterproof, LGF backlighting, custom sheet metal backers or enclosures and ESD shielding. These panels can be designed for specific environments including operating rooms, diagnostic centers and bedside use where sealing and durability are required.
LUPHI's highly knowledgeable Field Applications Engineers hasve extensive medical device experience which aid the design process. Additionally, LUPHI can integrate switches from its broad catalog offerings such as E-stops, key switches, toggles and pushbuttons with necessary wiring harnesses included.
Panels are typically designed with Ni-plated metal dome for a durable tactile response but can also incorporate polyester domes or be supplied without tactile feedback. Mechanical switches can be integrated in the design to provide additional functionality. For most applications, a NEMA-4 or IP65 seal can be achieved and, for more demanding applications, IP67 can be achieved. For flexible panels, a variety of interconnect technologies can be utilized to provide the best connection to suit the customer's packaging.
About LUPHI Since 1998, LUPHI has started the business of the HMI products in China mainland. Offering one of the broadest product lines on the market, LUPHI's products line includes super big size membrane switches, big size PET printed circuits, LED backlighting membrane switches, LGF backlighting membrane keypads, El backlighting keypads, capacitive membrane keypads, PCB/FPC circuit membrane switches, rubber keypad, LCDs, touch panels, OCA full lamination processing, PCB Assembly, turnkey project assembly etc. For more information about LUPHI or its broad line of products, contact us right now for your needs.
