Takfly 1.25gbps 1550nm CWDM SFP Transceiver Module

Takfly 1.25gbps 1550nm CWDM SFP Transceiver Module
Price: US $ 10-16/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: sfp module
Data Rate: 1.25gbps
Working Power: DC5V 1A
Operating Temperature: 0~70deg
Gross Weight: 0.4kg - 0.5kg
Delivery Time: 3~5 Days
Sample Order: Available
Export Markets: Global
Usage: Laptop
Type: Wireless
Support Network: Ethernet
Information Content: Data
Certification: GS
Condition: New

Product Description

Takfly 1.25gbps 1550nm CWDM SFP Transceiver Module

Feature
:
Data-rate of 1.25Gbps operation
9 CWDM DFB wavelengths
 laser and PIN photodetector for 80km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:Standard :  0 to +70°C

Application:
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems


Description:
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF.

The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Spec
ParameterSymbolMinMaxUnit
Supply VoltageVcc-0.54.5V
Storage TemperatureTs-40+85°C
Operating Humidity-585%
EncapsulationSFP
Function TypeCWDM
Data RateUp to 1.25Gb/s
Wavelength1550nm
Distance80Km on 9/125μm SMF
ConnectorDual SC
Supply Voltage3.3V
Operating TemperatureCom. 0~+70ºC
Digital diagnostic monitoring(DDM)YES
BrandOEM accept

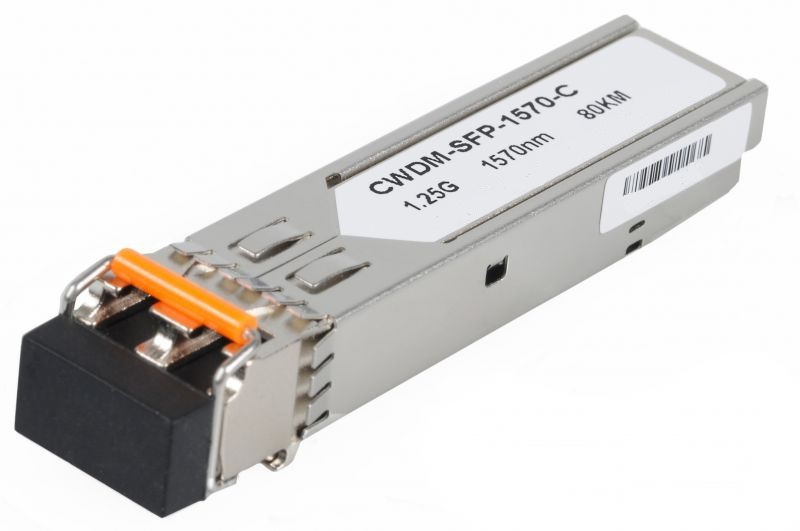

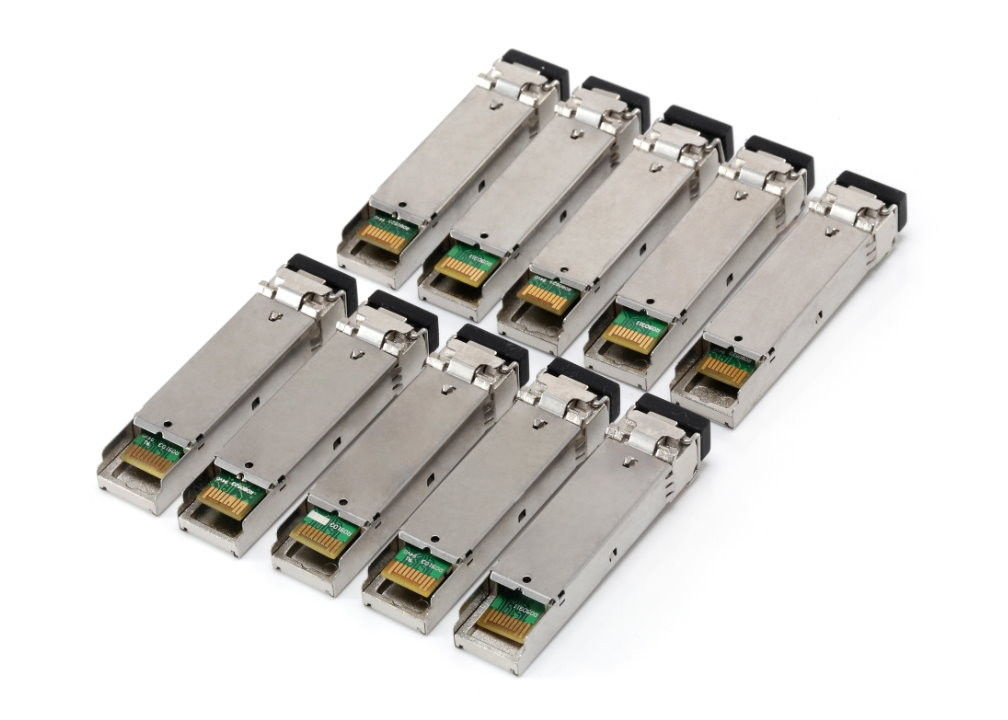

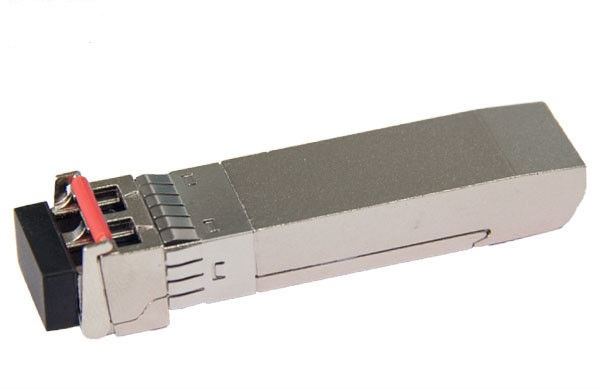

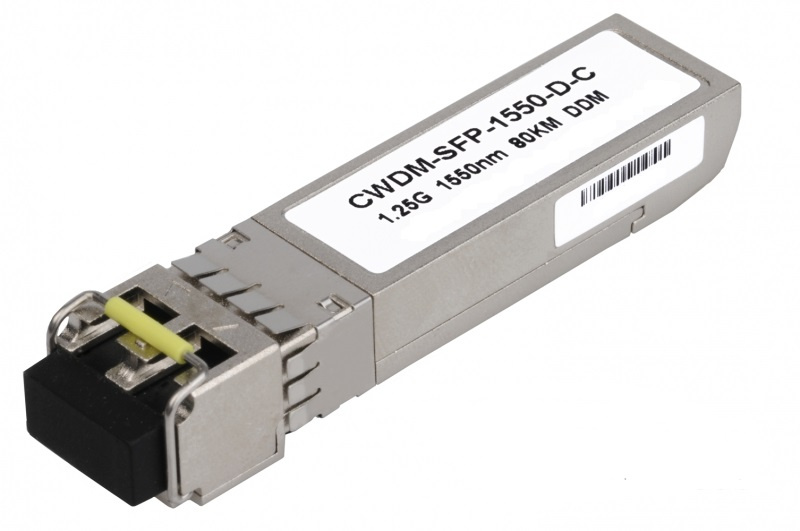

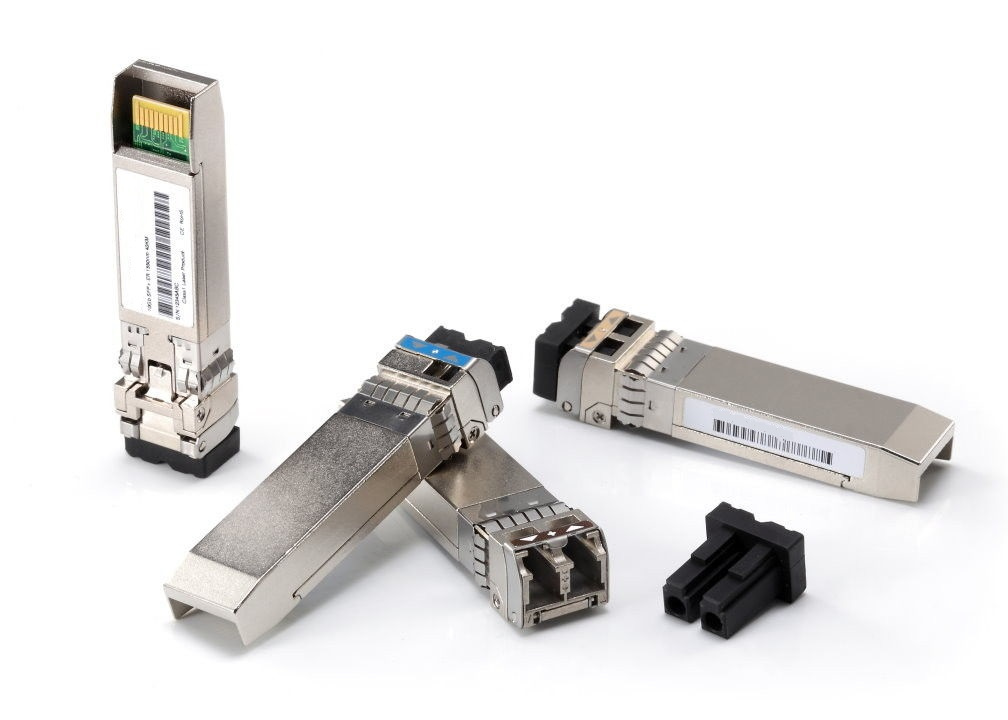

Product pic:





Ordering information
Part NumberProduct Description
DF-xx24-08CCWDM 1450nm~1610nm, 1.25Gbps, 80km, 0ºC ~ +70ºC
DF-xx24-08CDCWDM 1450nm~1610nm,1.25Gbps,80km,0ºC~+70ºC,With Digital Diagnostic Monitoring

Our products cover:
Patch Cords,Pigtail /MPO(MTP)/ Optical Fiber Cable/Optic Terminal Box / ODF,Patch Panels /Optic Splice Closure / SFP Module/ Media Converter / Video Optical transceiver /Connector /Adapter / AttenuatorCoupler / PLC Splitter / CWDM / DWDM / FWDM / OADM etc.

Our advantage:
1.15 years experience in manufacturing fiber optic products.
2.Availability of R&D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice

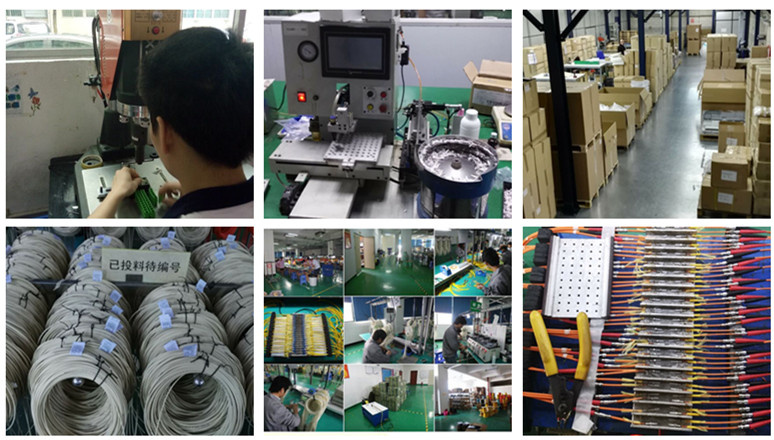

Our factory:

Should any questions about the product  just feel free to contact me  *^__^*

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
