| Prod Model: |
MPO |
| Business Type: |
Manufacturer |
| Length: |
Customized Design |
| Certification: |
RoHS, Ce, ISO9001, CCC |
| Polish: |
Upc |
| Connector: |
MTP-MTP |
| Mode Type: |
Sm |
| Transmission Medium: |
Multimode |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
APC |
| Connector Type: |
MPO/MTP |
| Structure: |
MPO/MTP |
Product Description

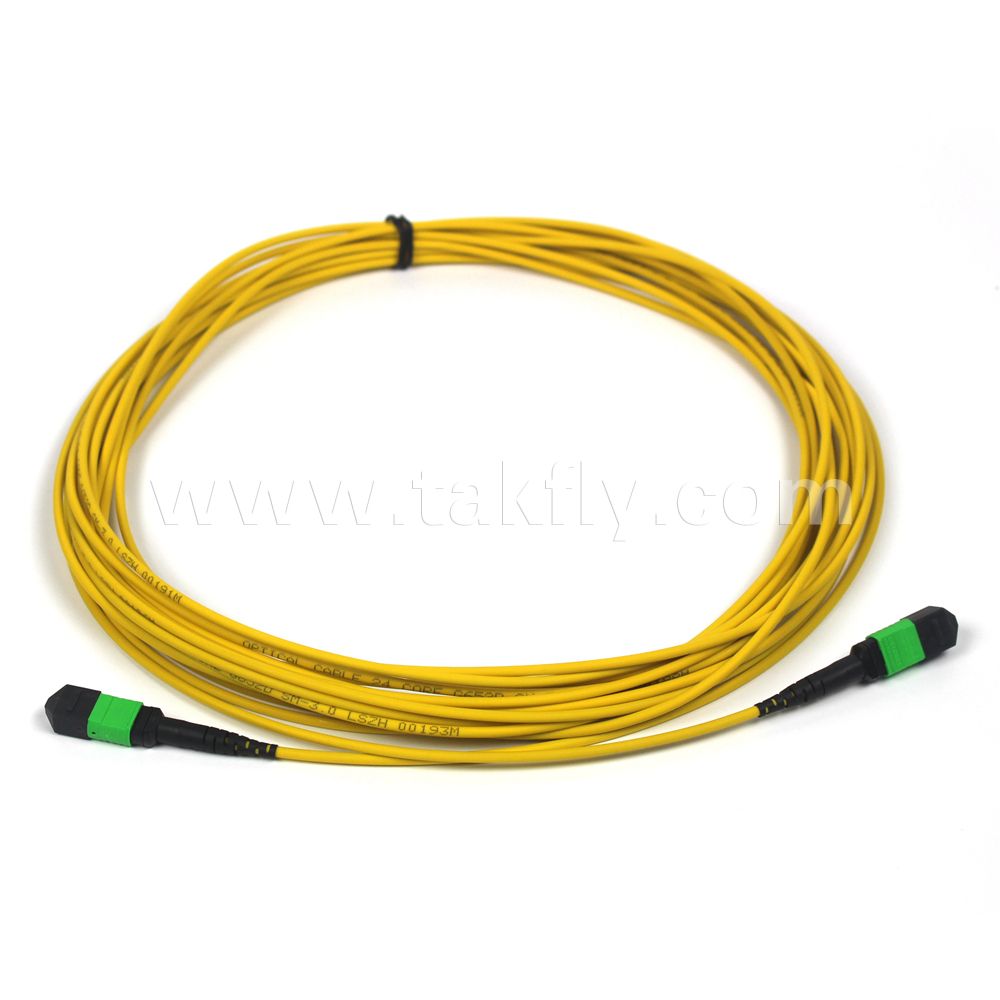

OM4 MPO/MPT Direct Harness Fiber Optic Patch Cord
Description:
MPO and MTP fiber optic patch cords and cable assemblies, with 8-96 cores, compatible for round cable or flat cable, Single mode and Multimode are available, male connector and female connector are available.
Applications:
Used for interconnection or cross connection in local fiber transmission links, data centers, backbone, CATV networks, various kinds of testing and self-control system.
Features:
Factory pre-terminated, eliminates the need for field terminations or splices, reduce installation time & save on-site labor cost
8 or 12 fibers for option
SM 9/125, MM 50/125 or 62.5/125, MM 10Gig fiber cable available
Full range of SC, LC, ST, FC, MTRJ, MU, DIN, D4 connectors available
PC, UPC or APC end-face polishing for all discrete connectors
Customized length, staggering, connector type, breakout style(0.9mm or 2.0mm), and labeling
100% factory tested with complete test results
Pulling eye available for connecter protection, easy and quick installation
Competitive Advantage:
Work team with over 10 years experience of fiber optic patch cord producing
UL and RoSH certified cables and connectors used
Quick delivery time to support customer to win more business
More cable types, jacket color, fan-out, labeling available
OEM service available
SPECIFICATIONS:
| EM | PARAMETER |
| Single Mode | Multi-Mode |
| Insertion Loss | MPO:typical≤0.50dB,Max≤0.70dB MPO:typical≤0.40dB,Max≤0.50dB |
| Return Loss | APC≥50dB |
| Durability (1000 Mating) | ≤0.20dB typical change,500 mating |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Tensile Strength | ≥120N(without 0.9mm patchcord) or customized |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
ORDERING OPTIONS:
| Fiber Type | Cable Type | Connector | Boot Size | Boot Color | Polishing Type | Polishing Type |
| SM: 9/125 | Simplex(2-fiber) | Male | 2.0mm | Black | PC | Customized |
| MM: 50/125 | Duplex | Female | 3.0mm | | APC | Customized |
| MM: 62.5/125 | Ribbon | | Ribbon | | APC | Customized |
| MM: OM3 | Breakout | | | | APC | Customized |
| MM: OM4 | Breakout | | | | APC | Customized |
Quality Control:
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage:
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB / C&F
Payment:
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Shipping:
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, ETC.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
