Tamperproof Thermostats (Pre-set) Fts 011/Fto 011

Name: Tamperproof Thermostats (Pre-set) Fts 011/Fto 011
Brand: all-electronics-online.com
SKU: 792855565
Availability: InStock
Rating: 4.9 (120 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTS 011/FTO 011
Fts 011:	No
Fto 011:	Nc

Product Description

Specifications
small Thermostat,CE Certification
Large setting range ,Small size
Mechanical bimetal type
High switching performance

Tamperproof Thermostats (Pre-set) FTS 011

Small size
Default temperature settings
Easy to install
High switching tolerance

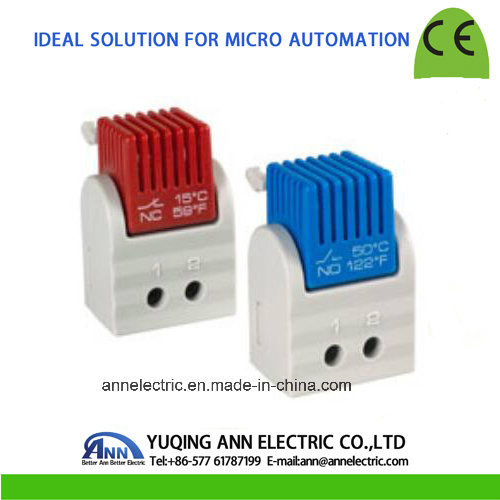

Tamperproof (Pre-set) Thermostat FTO 011
Contact breaker /NC (red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens when temperature is rising.
Tamperproof (Pre-set) Thermostat FTS 011
Contact maker /NO (blue casing) for regulating filter fans, heat exchangers, cooling devices or for switching signal devices when temperature limit has been exceeded. The contact closes when temperaure is rising.

Technical Data

Sensor element	thermostatic bimetal
Contact type	snap-action contact
Service life	> 100,000 cycles
Max. switching capacity	240V AC, 5 (1.6)A
	120 VAC, 10 (2)A
	DC 30W
Max. inrush current	AC 10A
Connection	2-pole terminal for 2.5mm², torque 0.8Nm max.
Mounting	clip for 35mm DIN rail, EN 60715
Casing	plastic according to UL94 V-0, light grey
Dimensions	47 x 33 x 33mm
Weight	approx. 30g
Fitting position	variable
Operating/Storage temperature	-40 to +80°C (-40 to +176°F) / -45 to +80°C (-49 to +176°F)
Operating / Storage humidity	max. 90 % RH (non-condensing)
Prot. type	IP20
Approvals	CE

Technical Data

Art. No.	Contact type	Switch-off temperature	Switch-on temperature
01160.0-00	Contact breaker (NC)	+15°C / +59°F (± 5K tolerance)	+5°C / +41°F (± 5K tolerance)
01160.0-01	Contact breaker (NC)	+25°C / +77°F (± 5K tolerance)	+15°C / +59°F (± 5K tolerance)
		Switch-on temperature	Switch-off temperature
01161.0-00	Contact maker (NO)	+50°C / +122°F (± 6K tolerance)	+40°C / +104°F (± 7K tolerance)
01161.0-01	Contact maker (NO)	+60°C / +140°F (± 6K tolerance)	+50°C / +122°F (± 7K tolerance)
01161.0-02	Contact maker (NO)	+35°C / + 95°F (± 6K tolerance)	+25°C / +77°F (± 7K tolerance)
