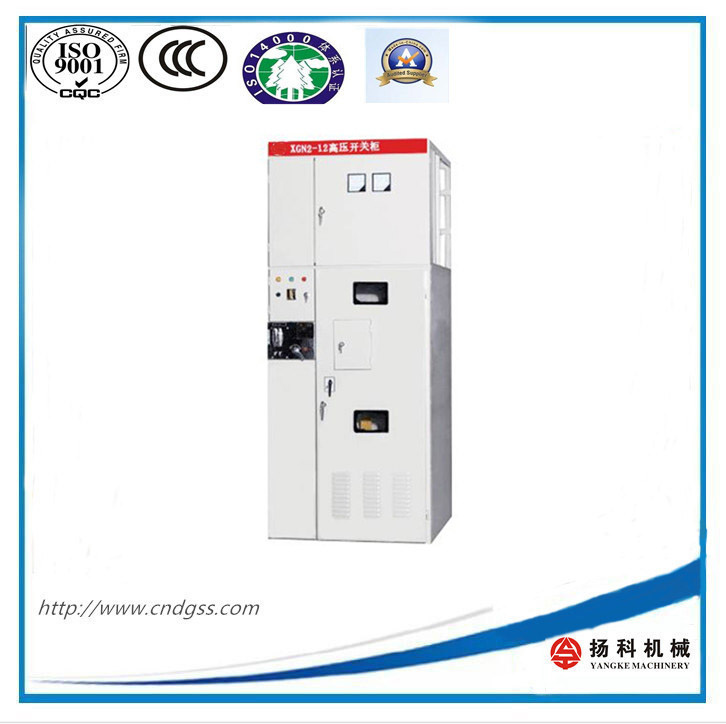

Tank-Type Fixed Metal Closed Switch

Prod Model:	XGN2-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12kv
Rated Current:	500-3000A
Rated Breaking Current:	20 25 31.5 40 Ka
Rated Short-Circuit Close Current:	50 63 70 100ka
Rated Short-Circuit Withstand Current:	50 63 70 100ka
Rated Withstand Current:	20 25 31.5 40 Ka
Degree Of Protection:	IP2X
Rated Withstand Time:	4s
Protection Degree:	Single Bus,Single Buswith by-Pass
Operating Type:	Electromagnectic,Sping Energy Load
Type:	Power
Structure:	Fixed Board
Certification:	Ice60298
Shell Protection Grade:	IP2X
Brand:	Yangke

Product Description

The switch is suitable for system of single busbar and single-busbar by-pass.It is whole enclosed without any insullating parts in it .Air-insullating distance is >125mm. There is sufficent insulativity for the cubicle, big-creepage insulation casing. Road-plate five protections ad reliable operation. The product meets standards:GB3906, IEC60298,DL404 etc.

Working conditions:
1. Environmental temperature: - 25º C~ + 40º C; - 10º C~ + 40º C;
2. Altitude: ≤ 1000m (Corresponding change based on the national standards is available if >1000m)
3. Relative humidity: Daily average ≤ 95%, daily average of water vapor pressure ≤ 2.2 Mpa; Monthly average ≤ 90%; Saturated vapor pressure: Daily average ≤ 2.22.2x10-3 Mpa; Monthly average ≤ 1.8x10-3 MPa,
4. No air condensation in normal situation (no more than twice per month). No class 1 pollution.
5. Installation conditions: Free of explosive and corrosive gas, no severe vibration and shock
Angle of inclination is ≤ 5°

Technical parameters
Main busbar	Rated voltage(kV)		3       6      10
	Maximum working voltage(kV)		3.6     7.2     12
	Rated working current (A)		630	1000	1250	1500		2000	2500	3000
	Rated dynamic current (kA)		50	50	80	125		125
			31.5
	Rated short-time withstand current (kA-s)		20-4	41384	31.5-4	14642		14702
			12.5-4
	Model	LMY	60 x 8	80 x 10		100 x 10			2 (100 x 10)
		TMY	50 x 5	80 x 6		100 x 6		100 x 8	100 x 10	2(100 x 8)	2(100 x 10)
Circuit breaker	Model		ZN28(A)-10
Rated insulation level	Power-frequency withstand voltage		Between poles, pole to earth: 42KV/1 min; Isolated open contacts: 48KV/1 min
	Impulse withstand voltage (1.2/50μs)		Between poles, pole to earth: 75KV; Isolated open contacts: 48KV
Rated distance	Clearances distances		≥125
	Charged body to insulated partition		≥300
	Creepage distance		Inorganic insulation materials≥207mm; Organic insulating material≥230mm
Outline Dimension	Width*Depth*Height		1218 x 3170 x1200				1418 x 3170 x 1200
Switch cabinet weight (kg)			800~1000				1000~1200
