| Prod Model: |
K |
| Dia: |
0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm |
| Surface: |
Bright/ oxidized |
| Grade: |
I/II/III |
| Tensile Strength: |
more than 390 |
| Shape: |
wire, rod, ribbon wire |
| Item: |
Tankii K type mineral insulated thermocouple wire |
| Type: |
Bare |
| Conductor Type: |
Solid |
| Application: |
Heating |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Range Of Application: |
heating |
| Brand: |
Tankii |
| Conductor Material: |
Chromel Alumel |
Product Description
Product Description

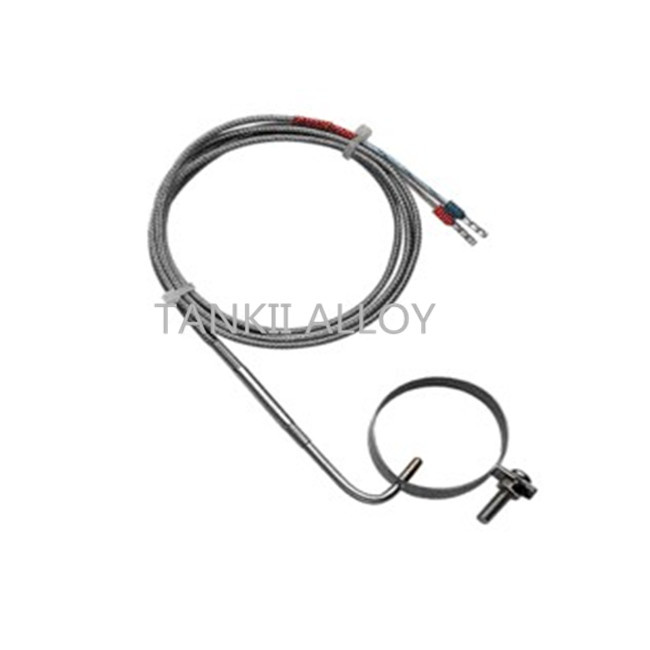

Tankii k type mineral insulated thermocouple wireA Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction experiences a change in temperature, a voltage is created. The voltage can then be interpreted using thermocouple reference tables to calculate the temperature.
NiCr-NiSi /NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.
NiCr-NiAl thermocouple wire can be produced as per the chemical composition requirement of the customers.
Insulation material: PVC, PTFE, FB or as per the customer's requirement.
Application of thermocouple wire
1. Heating - Gas burners for ovens
2. Cooling - Freezers
3. Engine protection - Temperatures and surface temperatures
4. High temperature control - Iron casting
Parameters
| Chemical Composition |
Conductor Name |
Polarity |
Code | Nominal Chemical Composition /% |
| Ni | Cr | Si |
Ni-Cr |
Positive |
KP |
90 |
10 |
-- |
Ni- Si |
Negative |
KN |
97 |
-- |
3 |
| Working Temperature |
Diameter
/mm
|
Long time Working temperature
/ºC
| Short period Working temperature
/ºC |
0.3 |
700 |
800 |
0.5 |
800 |
900 |
0.8,1.0 |
900 |
1000 |
1.2,1.6 |
1000 |
1100 |
2.0,2.5 |
1100 |
1200 |
3.2 |
1200 |
1300 |
Packing And Delivery
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Detail: 7 days, as the order quantity.
