Tape Wound Toroidal Current Transformers with Long Flying Leads

Name: Tape Wound Toroidal Current Transformers with Long Flying Leads
Brand: all-electronics-online.com
SKU: 615548604
Availability: InStock
Rating: 5 (148 reviews)

Price:	US $ 4.5-5.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWD-0007
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Current Transformer
Display:	Digital
Weight:	0-10kg
Customized:	Non-Customized
Power Rating 0.6va:	Transformation Ratio 1:2500
Transformer:	20A 40A 60A 80A Current Transformer Type
Usage:	Tester

Product Description

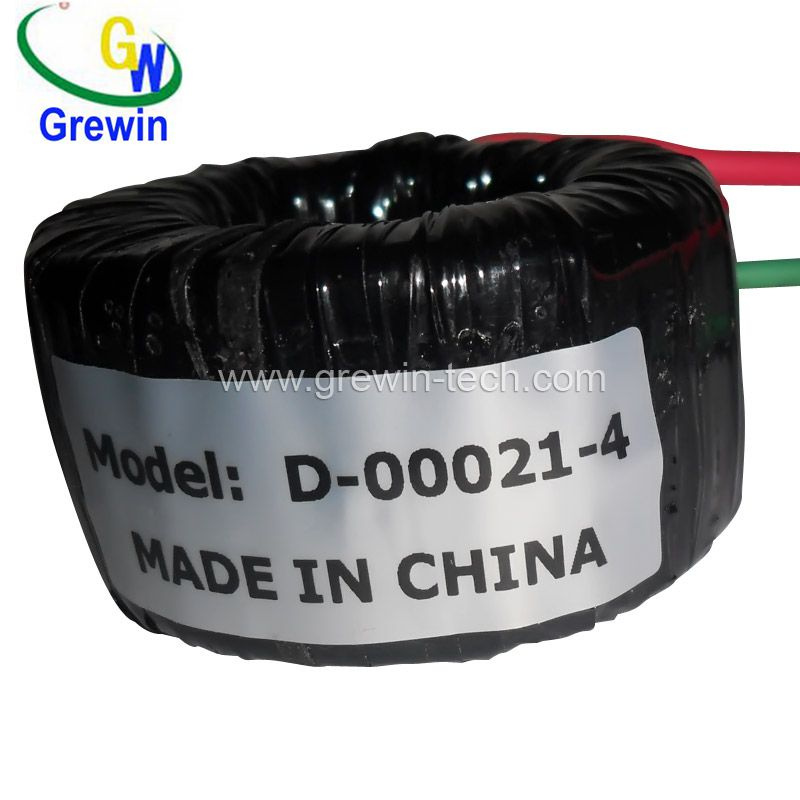

Tape wound toroidal current transformers with long flying leads

Current transformer mainly used in all kinds of electricity meter such as energy meter, water meter or electricity meter. We have current transformers both with and without DC immune. We can offer through-hole type, PCB type, Busbar type and flying wir type in mounting. Product with high accruacy up to 0.5, small phase error etc. We can also design and manufacture all kinds of current transformer according strictly to customer's special requirements.
Feature
1), All enclosed design, good performance of mechanical and insulation.
2), Pin design, easy to installate in PCB.
3), This series of CTs have small size that can be used as separate.
4), Linear output with high accuracy current.
5), Smalll size, light weight, standard hole easy to installation, Normal specifications and parameters as follow.

Applications
For applications that required high precisionand minimal phase angle error watt-hour
metre ect. electric energy measurement device.

Specifications
Exterior Material: PBT Resin UL flame retardant rating 94-V0

Isolation Current:2500 Vrms for 1 minute

Dielectric Resistance:1000 M Ohms @ 500 Vdc
Surge Withstand: 5000V(1.2/50μs standard shock wave)
Operating Temperature:-25 to +55°C,-40 to+85°C optional
Frequency:50 to 400 Hz
Accuracy Class:as defined in IEC 60044-1 Part 1 Current Transformers Class 0.1,0.2
RoHS Compliant..

WHY CHOOSE US?

Quality and honest first!

A. Flexible service for diffierent transformers with high efficiency performance.

B. Over 40 years experience of transformer designing and producing.

C. 100% test of every single product we produce from incoming material checking.

D. UL, CE, ROHS, ISO9001:2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We deliver the quality you expect at consistently competitive prices

G. Transformer quality lifetime:10 Years.

H. Specialty Sales service:5 -10 Year.

Contact Name Card:

Alice

Tianjin Grewin Technology Co.,Ltd.

We chat :warm_room

Website:

http://www.grewin-tech.com

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.

Contact Information:

Tianjin Grewin Technology Co., Ltd.

TEL: +86 22 84943756

Web: www.grewin-tech.com
