Tb-35b Save Energy 24 Hours Timer Switch AC 220V

Tb-35b Save Energy 24 Hours Timer Switch AC 220V
Price: US $ 10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: TB-35B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Timer Switch Maximum Current: 16A
Timer Switch Maximum Voltage: 110, 230VAC
Full Time Range: 24h
Timer Switch Theory: Mechanical
Minimum Setting Unit: 15minutes
Usage: Timer Switch, Multifunctional, Time Counter
Function: Addition Counter
Theory: Mechanical
Carry Mode: Synchronous Counter
Carry Base: Module-n Synchronous Counter
Mechanism: Electronic
PLC Type: SE PLC

Product Description

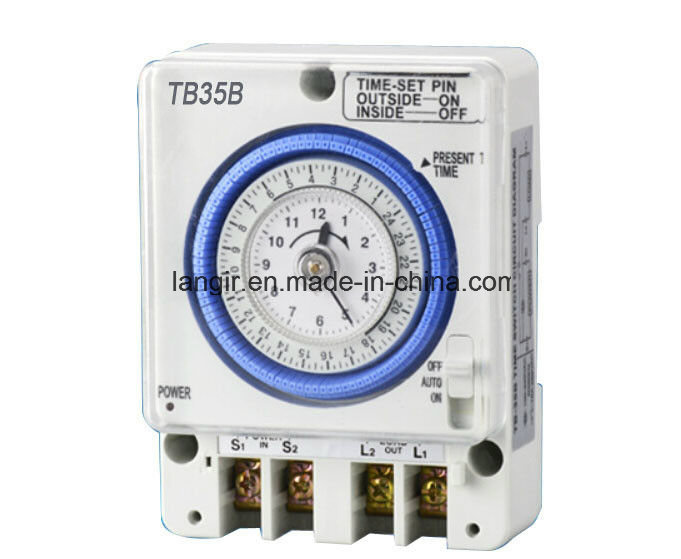

TB-35B Save Energy 24 Hours Timer Switch AC 220V
Description:
- Timer switch full range is 24 hours, 15 minutes mini setting unit, can be operation 96 times in 24 hours.
- Come with a English manual for read and use timer switch easily.
- Use for control the electric circuit connect and disconnect. Save energy and protect the device.
- A clear cover for protect the dial well, it is detahcable.

Technical Data

ClassificationTimer
ModelTB35TB35B
Contact CapacityAC220V 10A
Full Timing Range24h
Contact Resistance≤50mΩ
Insulation Resistance≥100mΩ
Coil Voltage100~240V AC
LifeElectrical105times
Mechanical107times
Operating Temperature-40ºC~+55ºC
Storage Battery(Working Reserve)Without Battery150h
Min. Setting Unit15 Minutes
Set Up Times15m/per times 96times
Remarks--

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
