Tb Series 180° Hinges with Lock System Metal Terminal Box

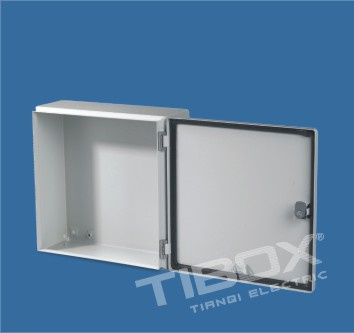

Name: Tb Series 180° Hinges with Lock System Metal Terminal Box
Brand: all-electronics-online.com
SKU: 744916875
Availability: InStock
Rating: 4.3 (97 reviews)

Price:	US $ 16.62-29.54/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Distribution Metering Box
Structure:	Protection
Shell Protection Grade:	IP66
Brand:	Tibox

Product Description

Packaging & Delivery
Packaging Detail: In cartons
Delivery Detail: In 45 days for a 1x40HQ container after confirme the order
Specifications
1. Product Name: TB series hinges with lock
2. Material: Sheet steel 1.2mm
3. Protection Level: IP66
4. Color: RAL7032; RAL7035

Product Description
1. Material: Sheet steel 1.2mm
2. Protection Level: IP66
3. Color: RAL7032 or RAL7035
4. Against mechanical impacts: IK10
5. Paint Finish: Epoxy polyester powder coating textured finish
6. Supply include: -enclosure with gland holes
-cover with sealing gasket
-fixing accessories
-galvanized mounting plate can be supplied separately

MODEL	W	H	D
	MM	MM	MM
TB15158	150	150	80
TB15308	150	300	80
TB20208	200	200	80
TB20308	200	300	80
TB20408	200	400	80
TB151512	150	150	120
TB153012	150	300	120
TB202012	200	200	120
TB203012	200	300	120
TB204012	200	400	120
TB205012	200	500	120
TB303012	300	300	120
TB304012	300	400	120
TB3040155	300	400	155
TB3060155	300	600	155
TB3080155	300	800	155

Zhejiang tianqi electric Co., Ltd., with 10 years experience in electrical industry, is one of the leading manufacturer of distribution boxes and panel meters in China. Founded in China 1998, located in the beautiful land scape of the largest China bamboo sea in anji economic development zone which place is in the north of zhejiang, covers an area of 100, 000 square meters and has 500 employees.

T&j's product range consists of wall mounting enclosures, floor standing cabinets, stainless steel enclosures, plastic enclosures, terminal boxes, power distribution cabinets, floor standing modular cabinets, console systems, analog panel meters, digital panel meter, DIN rail panel meter, current transformer, shunt.

We also got the quality system certificate of CE, rosh, IP65 and ISO 9002 for our products. It has established the good commercial relations with America, west-europeam, east-Asia, Africa etc.

All kinds of electronics products and its accessories will be designed and manufactured according to the customer' s special requirement.

Sticking to the policy as "no quality, no future!
