| Prod Model: |
TB-1512 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current: |
15-100A |
| Application: |
Car |
| Environmental Protection: |
Resistance to Environmental |
| Connection Mode: |
In-Line Connector |
| Shape: |
Rectangle |
| Contact Termination Form: |
Screws Fixed |
| Brand: |
Tosunlux |
Product Description
APPLICATION:
Current: 15A, 25A, 35A, 45A, 60A, 100A
Poles: 3, 4, 6, 10, 12
Housing Material: polyphenyl or polycarbonate
Contact: copper pieces, tin plated brass screws
Cover: reinforced plastic, ensures heat-resistance, good toughness and no crack
Rated voltage: 600V
SPECIFICATION:

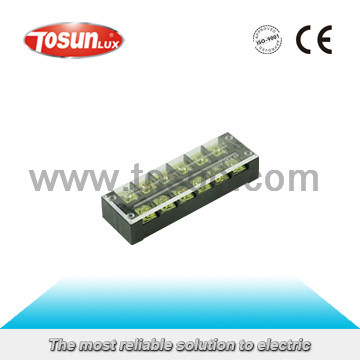

TB Terminal Block
| Model | Current | No. of Poles | Dimension(mm) |
| L | L1 | A | B | C | D | E |
| TB-1503 | 15A | 3 | 46 | 36.5 | 7.5 | 9 | M3 | 22 | 17 |
| TB-1504 | 4 | 55 | 45.5 | 7.5 | 9 | M3 | 22 | 17 |
| TB-1506 | 6 | 73 | 63.5 | 7.5 | 9 | M3 | 22 | 17 |
| TB-1512 | 12 | 127 | 118 | 7.5 | 9 | M3 | 22 | 17 |
| TB-2503 | 25A | 3 | 50 | 40 | 10.5 | 12 | M4 | 30 | 20 |
| TB-2504 | 4 | 62.5 | 57 | 10.5 | 12 | M4 | 30 | 20 |
| TB-2506 | 6 | 91 | 81.5 | 10.5 | 12 | M4 | 30 | 20 |
| TB-2512 | 12 | 163 | 153 | 10.5 | 12 | M4 | 30 | 20 |
| TB-3503 | 35A | 3 | 50 | 40 | 10.5 | 12 | M4 | 30 | 20 |
| TB-3504 | 4 | 62.5 | 57 | 10.5 | 12 | M4 | 30 | 20 |
| TB-3506 | 6 | 91 | 81.5 | 10.5 | 12 | M4 | 30 | 20 |
| TB-3512 | 12 | 163 | 153 | 10.5 | 12 | M4 | 30 | 20 |
| TB-4503 | 45A | 3 | 70 | 60.5 | 15 | 17 | M5 | 38 | 23.5 |
| TB-4504 | 4 | 86 | 75.5 | 15 | 17 | M5 | 38 | 23.5 |
| TB-4506 | 6 | 126.5 | 110 | 15 | 17 | M5 | 38 | 23.5 |
| TB-6003 | 60A | 3 | 70.5 | 65.5 | 15.5 | 18 | M6 | 38 | 31 |
| TB-6004 | 4 | 93.5 | 82.5 | 15.5 | 18 | M6 | 38 | 31 |
| TB-6006 | 6 | 129 | 118 | 15.5 | 18 | M6 | 38 | 31 |
| TB-10003 | 100A | 3 | 86.5 | 75.5 | 20 | 22 | M6 | 43.5 | 35 |
| TB-10004 | 4 | 108 | 96 | 20 | 22 | M6 | 43.5 | 35 |
| TB-10006 | 6 | 153 | 140 | 20 | 22 | M6 | 43.5 | 35 |
TC Terminal Block
| Model | current | No. of poles | Dimension(mm) |
| L | L1 | a | b | c | d | e |
| TC-603 | 60A | 3 | 28.5 | 86.5 | 38 | 42.7 | 25.5 | 31 | 15 |
| TC-604 | 4 | 28.5 | 115 | 38 | 42.7 | 25.5 | 31 | 15 |
| TC-1003 | 100A | 3 | 34.5 | 113.5 | 46.5 | 55.2 | 28 | 36.3 | 17.3 |
| TC-1004 | 4 | 34.5 | 137.5 | 46.5 | 55.2 | 28 | 36 | 17.3 |
| TC-1503 | 150A | 3 | 38.5 | 115. | 57.2 | 67 | 30.5 | 40 | 19.8 |
| TC-1504 | 4 | 38.5 | 153 | 57.2 | 67 | 30.5 | 40 | 19.8 |
| TC-2003 | 200A | 3 | 44.5 | 133 | 63 | 72.1 | 34 | 44.4 | 23 |
| TC-2004 | 4 | 44.5 | 177 | 63 | 72.1 | 34 | 44.4 | 23 |
| TC-3003 | 300A | 3 | 55 | 164 | 78 | 89.4 | 47.5 | 50.6 | 27 |
| TC-3004 | 4 | 55 | 218 | 78 | 89.4 | 47.5 | 50.6 | 27 |
| TC-4003 | 400A | 3 | 55 | 164 | 78 | 89.4 | 47.5 | 50.6 | 27 |
| TC-4004 | 4 | 55 | 218 | 78 | 89.4 | 47.5 | 50.6 | 27 |
