Tbtc CE RoHS Terminal Block Connector Tb4504 Tc3003
| Price: |
US $ 0.26/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MG-TBTC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
Tb Tc |
| Environmental Protection: |
Resistance to Environmental |
| Shape: |
Rectangle |
| Application: |
Car |
| Contact Termination Form: |
Screws Fixed |
| Connection Mode: |
In-Line Connector |
| Brand: |
Mogen |
Product Description

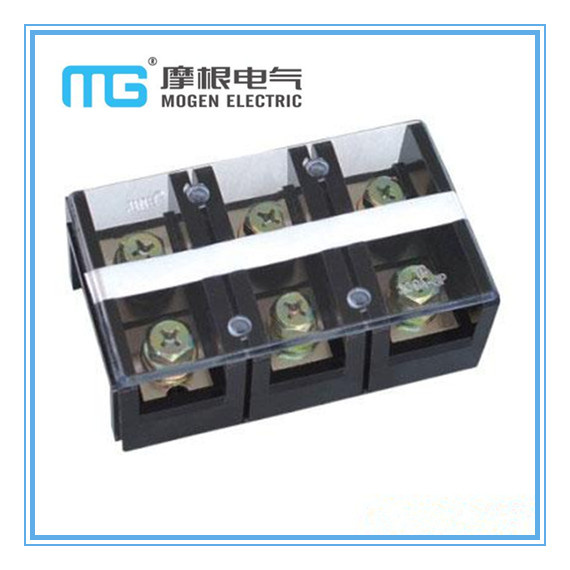

TB TC Terminal Block
TB TC series adopt plate-type,screw-clamping,low base, sealed and integral construction,
rating voltage 600V,
rating current :15A,25A,35A,45A,60A,100A .
Can realise the adjacent terminals' connection through BC series plug-in units.
Cross section: 0.5-22mm2,
Features : simple construction, convenient to install, reliable.
Adopt flaming- retarding VO- grade PC as plastic base.
The screw increase the bearing force after heart treatment, no slip thread.
In normal circumstance, the screw will not rust away for long time after special anti-salt and fog treatment. Also , stainless steel screw are available, special use for high-acidity and on the sea for long time.
Our TB TC series Terminals all past ROHS and CE certificate.
- Current: 15A, 25A, 35A, 45A, 60A, 100A
Poles: 3, 4, 5, 6, 10, 12 - Housing Material: polyphenyl or polycarbonate
- Contact: copper pieces, tin plated brass screws
- Cover: reinforced plastic, ensures heat-resistance, good toughness and no crack
- Rated voltage: 600V
- Matched with OT, UT terminals
|
Type |
Current |
No. ofpoles |
Dimension (mm) |
|
L |
L |
A |
B |
C |
D |
E |
F |
G |
|
TB-1503 |
15A |
3 |
46 |
36.5 |
7.5 |
9 |
M3 |
22 |
17 |
|
|
|
TB-1504 |
4 |
55 |
45.5 |
7.5 |
9 |
M3 |
22 |
17 |
|
|
|
TB-1506 |
6 |
73 |
63.5 |
7.5 |
9 |
M3 |
22 |
17 |
|
|
|
TB-1512 |
12 |
127 |
118 |
7.5 |
9 |
M3 |
22 |
17 |
|
|
|
TB-2503 |
25A |
3 |
50 |
40 |
10.5 |
12 |
M4 |
30 |
20 |
|
|
|
TB-2504 |
4 |
62.5 |
57 |
10.5 |
12 |
M4 |
30 |
320 |
|
|
|
TB-2506 |
6 |
91 |
81.5 |
10.5 |
12 |
M4 |
30 |
20 |
|
|
|
TB-2512 |
12 |
163 |
153 |
10.5 |
12 |
M4 |
30 |
20 |
|
|
|
TB-3503 |
35A |
3 |
50 |
40 |
10.5 |
12 |
M4 |
30 |
20 |
|
|
|
TB-3504 |
4 |
62.5 |
57 |
10.5 |
12 |
M4 |
30 |
20 |
|
|
|
TB-3506 |
6 |
91 |
81.5 |
10.5 |
12 |
M4 |
30 |
20 |
|
|
|
TB-3512 |
12 |
163 |
153 |
10.5 |
12 |
M4 |
30 |
20 |
|
|
|
TB-4503 |
45A |
3 |
70 |
60.5 |
15 |
17 |
M5 |
38 |
23.5 |
|
|
|
TB-4504 |
4 |
86 |
75.5 |
15 |
17 |
M5 |
38 |
23.5 |
|
|
|
TB-4506 |
6 |
120.5 |
110 |
15 |
17 |
M5 |
38 |
23.5 |
|
|
|
TB-6003 |
60A |
3 |
70.5 |
65.5 |
15.5 |
18 |
M6 |
38 |
31 |
|
|
|
TB-6004 |
4 |
93.5 |
82.5 |
15.5 |
18 |
M6 |
38 |
31 |
|
|
|
TB-6006 |
6 |
129 |
118 |
15.5 |
18 |
M6 |
38 |
31 |
|
|
|
TB-10003 |
100A |
3 |
86.5 |
75.5 |
22 |
20 |
M6 |
43.5 |
35 |
|
|
|
TB-10004 |
4 |
108 |
96 |
22 |
20 |
M6 |
43.5 |
35 |
|
|
|
TB-10006 |
6 |
153 |
140 |
22 |
20 |
M6 |
43.5 |
35 |
|
|
|
TC-603 |
60A |
3 |
28.5 |
86.5 |
38 |
42.7 |
25.5 |
31 |
15 |
17 |
M6 |
|
TC-604 |
4 |
28.5 |
115 |
38 |
42.7 |
25.5 |
31 |
15 |
17 |
M6 |
|
TC-1003 |
100A |
3 |
34.5 |
113.5 |
46.5 |
55.2 |
28 |
36.3 |
17.3 |
22.5 |
M6 |
|
TC-1004 |
4 |
34.5 |
137.5 |
46.5 |
55.2 |
28 |
36 |
17.3 |
22.5 |
M6 |
|
TC-1503 |
150A |
3 |
38.5 |
115 |
57.2 |
67 |
30.5 |
340 |
19.8 |
25.3 |
M8 |
|
TC-1504 |
4 |
38.5 |
153 |
57.2 |
67 |
30.5 |
40 |
19.8 |
25.3 |
M8 |
|
TC-2003 |
200A |
3 |
44.5 |
133 |
63 |
72.1 |
34 |
44.4 |
23 |
28.3 |
M8 |
|
TC-2004 |
4 |
44.5 |
177 |
63 |
72.1 |
34 |
44.4 |
23 |
28.3 |
M8 |
|
TC-3003 |
300A |
3 |
55 |
164 |
78 |
89.4 |
47.5 |
50.6 |
27 |
30 |
M10 |
|
TC-3004 |
4 |
55 |
218 |
78 |
89.4 |
47.5 |
50.6 |
27 |
30 |
M10 |
|
TC-4003 |
400A |
3 |
55 |
164 |
78 |
89.4 |
47.5 |
50.6 |
27 |
30 |
M10 |
|
TC-4004 |
4 |
55 |
218 |
78 |
89.4 |
47.5 |
50.6 |
27 |
30 |
M10 |
Wenzhou Mogen Electric Co., Ltd founded in 1999, has been a comprehensive enterprise incorporating industry and trade after more than 10 years' Development,
Which is professionally engaged in designing, exploring and manufacturing various terminals and connectors.
Our main products are terminal blocks, insulated terminals and non-insulated terminals, terminal ends, cable clips as well as cable glands, mainly sold to the Middle East, Southeast Asia, South Africa, Europe, America and Australia. The company has established quality system according to the ISO9001 International standards, applied to the whole process of controlling the design and production of the products and as well as the service. We have obtained the Certifications of ISO9001, TUV, CE, RoHS, SGS, etc.
We provide the high-quality matched products and excellent services for various industries, such as electricity, communications, machinery, construction, petroleum, chemical, aviation, transport, automobile manufacturing, household appliances,
And electrical installations etc.
We have strong technical force, advanced technique of production and complete testing equipments. We maintain "Excellent quality, Exceeding customer needs" as our business purposes, supply electrical products to our customers with the quality of "Safe, Reliable, Suitable and Steady", observe the commitment of "Leader in science and technology, Honest operation, Best Quality and Customer first", and provide best
After-sell services to our new and old clients from both domestic and abroad with our sincere hearts.
