| Prod Model: |
UTL-TC-XX |
| Color: |
Black |
| Current: |
60A/100A/150A/200A/300A/400A/600A |
| Voltage: |
600V |
| Cable Size: |
6mm2 to 300mm2 |
| Poles: |
3 or 4p/Each |
| MOQ: |
1PC |
| Lead Time: |
2-3 Days |
| Type: |
Socket Terminals |
| Application: |
Transmission of Electrical Signals |
| Material: |
Brass+ Steel |
| Certification: |
Ce |
| Brand: |
Utl |
Product Description

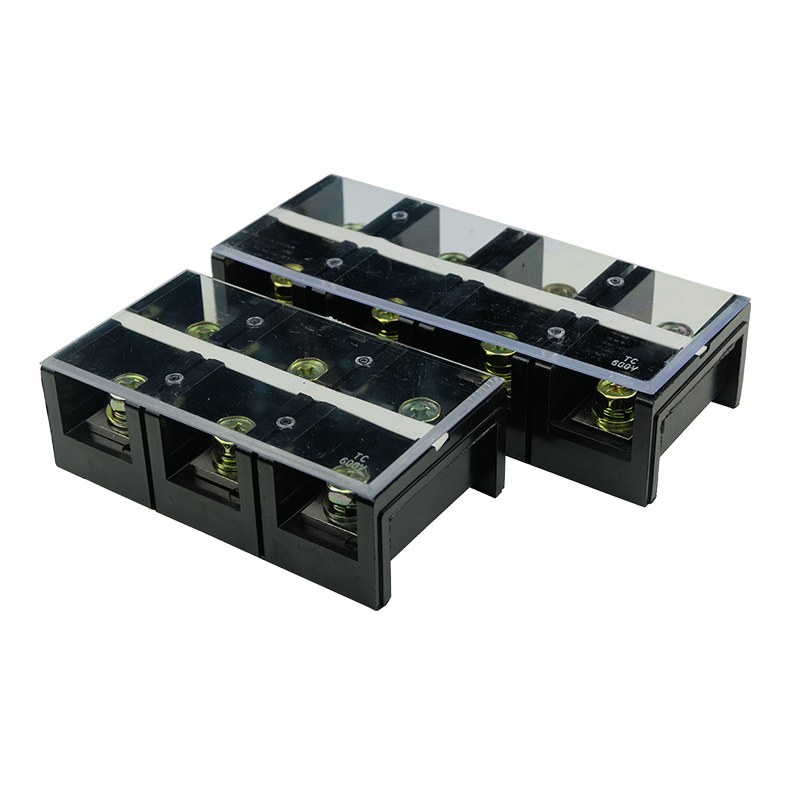

TC series High-current barrier feed-through Terminal block with cover
1. Current: 60A/100A/150A/200A/300A/400A/600A
2. Voltage: 600V
3. Pole #: 3/4
4. Cable size: 6mm2 to 300mm2
Product List
| Mode Co. | A/V | mm2 | LxWxH(mm) | Poles |
| TC-603 | 60A/600V | 6~14mm² | 85x43x32.5 | 3 |
| TC-604 | 60A/600V | 6~14mm² | 112x43x32.5 | 4 |
| TC-1003 | 100A/600V | 10~22mm² | 104x55.4x37.8 | 3 |
| TC-1004 | 100A/600V | 10~22mm² | 136x55.4x37.8 | 4 |
| TC-1503 | 150A/600V | 40~60mm² | 117x67x40.8 | 3 |
| TC-1504 | 150A/600V | 40~60mm² | 157x67x40.8 | 4 |
| TC-2003 | 200A/600V | 60~100mm² | 134x72x46.5 | 3 |
| TC-2004 | 200A/600V | 60~100mm² | 177x72x46.5 | 4 |
| TC-3003 | 300A/600V | 100~150mm² | 164x90.5x50.6 | 3 |
| TC-3004 | 300A/600V | 100~150mm² | 220x90.5x50.6 | 4 |
| TC-4003 | 400A/600V | 150~200mm² | 164x90.5x50.5 | 3 |
| TC-4004 | 400A/600V | 150~200mm² | 220x90.5x50.6 | 4 |
| TC-6003 | 600A/600V | 200~300mm² | 205x100x75 | 3 |
| TC-6004 | 600A/600V | 200~300mm² | 275x100x75 | 4 |
