Tc Screw Type Connection Terminal

Name: Tc Screw Type Connection Terminal
Brand: all-electronics-online.com
SKU: 714585535
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TB, TC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Tb, Tc
Rated Voltage(V):	600V
Rated Current(a):	100A
Standards:	IEC 60947-7-1
Connection Mode:	Threaded Connection
Contact Termination Form:	Screws Fixed

Product Description

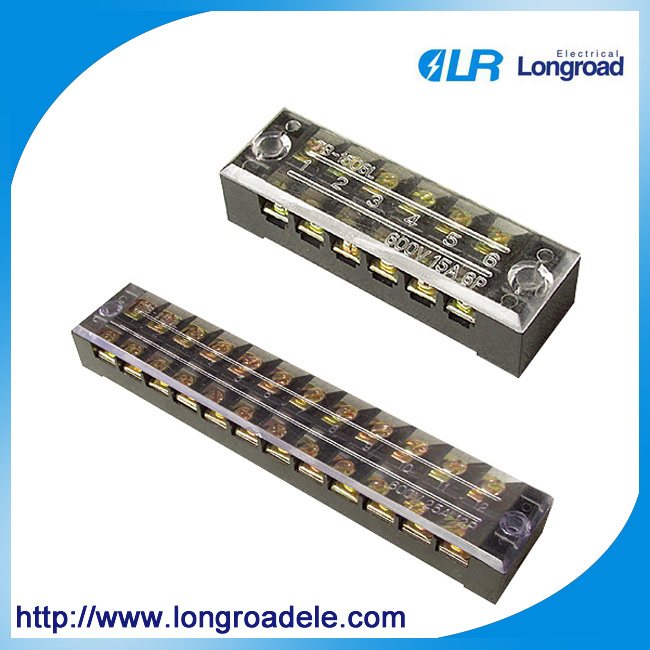

TB,TC Screw Type Connection Terminal
It is suitable for circuits of AC 50Hz, with the rated voltage up to 600V, and rated current up to 100A, to be used for connection between the wires.
Standard: IEC 60947-7-1

Type	Current	No. ofpoles	Dimension (mm)
Type	Current	No. ofpoles	L	L	A	B	C	D	E	F	G
TB-1503	15A	3	46	36.5	7.5	9	M3	22	17
TB-1504		4	55	45.5	7.5	9	M3	22	17
TB-1506		6	73	63.5	7.5	9	M3	22	17
TB-1512		12	127	118	7.5	9	M3	22	17
TB-2503	25A	3	50	40	10.5	12	M4	30	20
TB-2504		4	62.5	57	10.5	12	M4	30	320
TB-2506		6	91	81.5	10.5	12	M4	30	20
TB-2512		12	163	153	10.5	12	M4	30	20
TB-3503	35A	3	50	40	10.5	12	M4	30	20
TB-3504		4	62.5	57	10.5	12	M4	30	20
TB-3506		6	91	81.5	10.5	12	M4	30	20
TB-3512		12	163	153	10.5	12	M4	30	20
TB-4503	45A	3	70	60.5	15	17	M5	38	23.5
TB-4504		4	86	75.5	15	17	M5	38	23.5
TB-4506		6	120.5	110	15	17	M5	38	23.5
TB-6003	60A	3	70.5	65.5	15.5	18	M6	38	31
TB-6004		4	93.5	82.5	15.5	18	M6	38	31
TB-6006		6	129	118	15.5	18	M6	38	31
TB-10003	100A	3	86.5	75.5	22	20	M6	43.5	35
TB-10004		4	108	96	22	20	M6	43.5	35
TB-10006		6	153	140	22	20	M6	43.5	35
TC-603	60A	3	28.5	86.5	38	42.7	25.5	31	15	17	M6
TC-604	60A	4	28.5	115	38	42.7	25.5	31	15	17	M6
TC-1003	100A	3	34.5	113.5	46.5	55.2	28	36.3	17.3	22.5	M6
TC-1004	100A	4	34.5	137.5	46.5	55.2	28	36	17.3	22.5	M6
TC-1503	150A	3	38.5	115	57.2	67	30.5	340	19.8	25.3	M8
TC-1504	150A	4	38.5	153	57.2	67	30.5	40	19.8	25.3	M8
TC-2003	200A	3	44.5	133	63	72.1	34	44.4	23	28.3	M8
TC-2004	200A	4	44.5	177	63	72.1	34	44.4	23	28.3	M8
TC-3003	300A	3	55	164	78	89.4	47.5	50.6	27	30	M10
TC-3004	300A	4	55	218	78	89.4	47.5	50.6	27	30	M10
TC-4003	400A	3	55	164	78	89.4	47.5	50.6	27	30	M10
TC-4004	400A	4	55	218	78	89.4	47.5	50.6	27	30	M10
