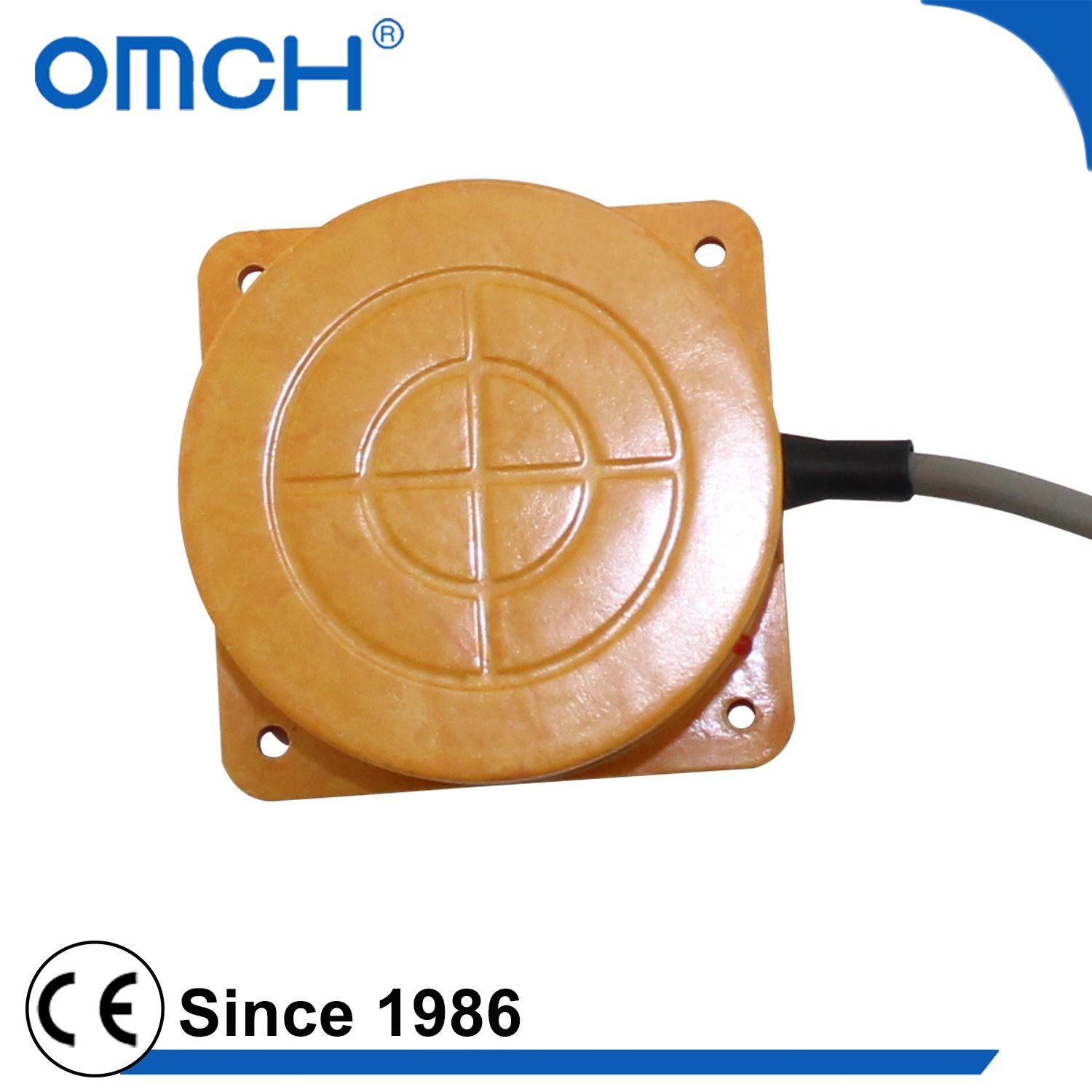

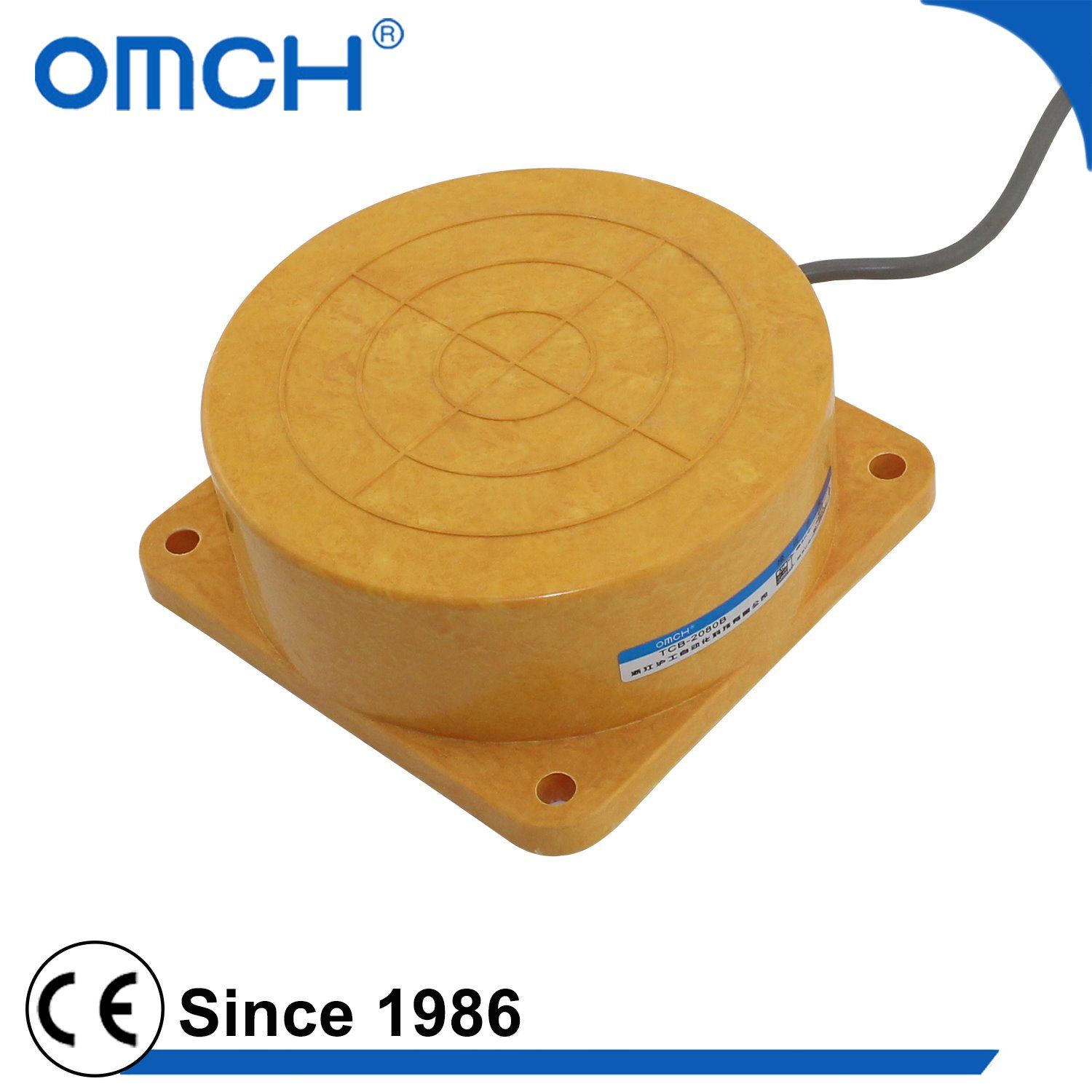

Tco-3040 Tco-2040 40mm Non-Screen Shield Oval Type Inductive Proximity Switch Sensor Dia 80 X 40

Name: Tco-3040 Tco-2040 40mm Non-Screen Shield Oval Type Inductive Proximity Switch Sensor Dia 80 X 40
Brand: all-electronics-online.com
SKU: 840404125
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	US $ 2-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TCO-3040/ TCO-2040
Type:	Infrared Sensor Switch
Standard:	Standard
Certification:	CE
Wires:	2-Wires, 3-Wires,4-Wires

Product Description

TCO-3040 TCO-2040 40mm Non-screen Shield Oval Type Inductive Proximity Switch Sensor Dia 80 x 40

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP67 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification

We sincerely welcome agents from all over the world

Dimension				Dia 80X40
Mounting way				Non-Screen shield type
T Y P E	DC type	N P N	NO	TCO-3040A
			NC	TCO-3040B
			NO+NC	TCO-3040AB
		P N P	NO	TCO-3040C
			NC	TCO-3040D
			NO+NC	TCO-3040CD
		Two wire	NO	TCO-3040AL
			NC	TCO-3040BL
	AC type	Two wire	NO	TCO-2040A
			NC	TCO-2040B
		Three wire	NO+NC	TCO-2040AB
Detection distance				40 mm+/-10%
Set distance				0~35mm
Standard detection object				Iron80802mm
Response frequency				DC:0.5Khz AC:25Hz
Delay distance:				10% below of the detection distance
Detection object				Magnetic metal (the detection distance decreases when it is non-magnatic metal)
Supply voltage				DCtype:DC12-24V(6-36V)Impulse(p-p)10%below Actype:AC110-220V(36-250V)50/60Hz
Insulation resistance				50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage				AC1000V50/60Hz 1 min between charging and housing
Temperature influence				Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence				Inside+/-15%rated supply voltagerange,at rated supply voltage value
Protection sturcture				IP65 ICE specification
material				(Housing ABS), Detection surface:ABS)

AUTHENTICATION

FAQ

We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
