| Prod Model: |
TDGC2-0.5KVA~40KVA 1Phase; TSGC2-3KVA~100KVA Phase |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Frequency Characteristics: |
50Hz/60Hz |
| Application Range: |
Used in Region Where The Net Voltage Is Flucuating |
| Brand: |
Conpo |
| Usage: |
Used in Region Where The Net Voltage Is Flucuating |
| Frequency: |
50Hz/60Hz |
| Size: |
0.5kVA~40kVA 1phase, 3kVA~100kVA 3phase |
| Power Source: |
Contact Voltage Regulator or Variable Transformer |

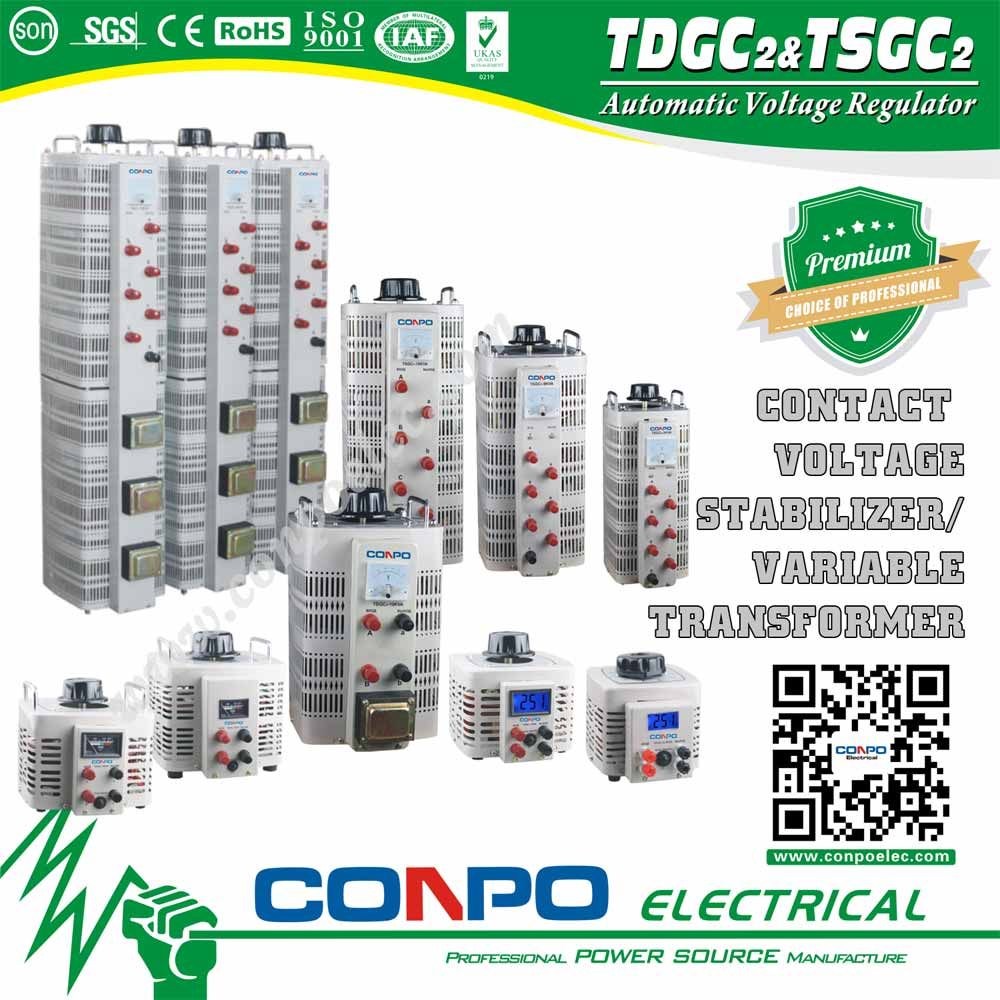

Product Description
Feature:
This series energy-saying voltage regulator are made of imported silicon steel, it can successively adjust the output voltage(single-phase 0~250V, three-phase 0~430V), with the features of no waveform distortion, small volume, light weight, high efficiency, convenient use, reliable performance and so on.
Application:
It can be applied in industry, scientific experiment, public facilities and domestic appliances to achieve the goal of voltage regulating, temperature controlling, light regulating, power controlling and so on.
Specification:
Phase No.: Single phase, Threee phase
Input voltage: 220V/1Phase, 380V/3Phase
Output voltage: 0~250V/1Phase, 0~430V/3Phase
Frequency: 50Hz/60Hz
Efficiency: >95%
Remarks:
Custom-made specifications are acceptable.
1). 1Phase TDGC2 specifications:
| Model | Phase No. | Rated power(KVA) | Pkg size(cm) | Unit per pkg |
| TDGC2-0.5KVA | 1Phase | 0.5 | 34x45x22 | 6 |
| TDGC2-1KVA | 1Phase | 1 | 22x42x26 | 4 |
| TDGC2-2KVA | 1Phase | 2 | 22x42x20 | 2 |
| TDGC2-3KVA | 1Phase | 3 | 29x50x26 | 1 |
| TDGC2-5KVA | 1Phase | 5 | 39x42x31 | 1 |
| TDGC2-7KVA | 1Phase | 7 | 39x42x31 | 1 |
| TDGC2-10KVA | 1Phase | 10 | 43x48x51 | 1 |
| TDGC2-15KVA | 1Phase | 15 | 43x48x67 | 1 |
| TDGC2-20KVA | 1Phase | 20 | 43x48x67 | 1 |
| TDGC2-30KVA | 1Phase | 30 | 45x48x117 | 1 |
| TDGC2-40KVA | 1Phase | 40 | 45x48x117 | 1 |
2). 3Phase TSGC2 specifications:
Model | Phase No. | Rated power(KVA) | Pkg size(cm) | Unit per pkg |
| TSGC2-3KVA | 3Phase | 3KVA | 25*26*58cm | 1 |
| TSGC2-6KVA | 3Phase | 6KVA | 29*30*58cm | 1 |
| TSGC2-9KVA | 3Phase | 9KVA | 32*30*58cm | 1 |
| TSGC2-12KVA | 3Phase | 12KVA | 43*43*67cm | 1 |
| TSGC2-15KVA | 3Phase | 15KVA | 43*43*67cm | 1 |
| TSGC2-20KVA | 3Phase | 20KVA | 45*47*117cm | 1 |
| TSGC2-30KVA | 3Phase | 30KVA | 45*47*117cm | 1 |
| TSGC2-40KVA | 3Phase | 40KVA | 45*47*117cm | 1 |
| TSGC2-45KVA | 3Phase | 45KVA | 45*47*117cm | 1 |
| TSGC2-50KVA | 3Phase | 50KVA | 45*47*117cm | 1
|
