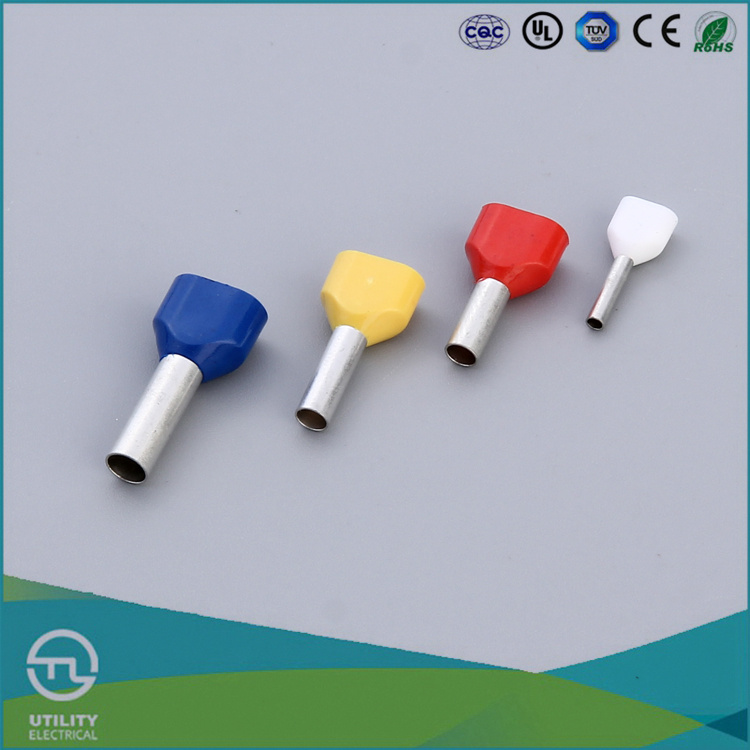

Te Type Insulated Cold End Terminal

Te Type Insulated Cold End Terminal
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: TE0508
AWG: 2-22
Voltage: 300V
Thickness: 0.3mm
Soft Cable: 0.5mm2
Material: Copper
Application: Transmission of Electrical Signals
Type: Lug
Species: Lug
Shape: Pipe-Shape Header
Certification: Ce
Brand: Utl

Product Description

 UTL  Low Price Electrical TE Type Insulated Cold End Terminal Crewel Copper Tube Termianl
Model No.TE0508
Item name Crewel Pre-insulated copper tubular cable lugs
MaterialTerminal : Copper  ,  Insulate : PA66
Size F:8mm   L: 14.5mm   W:5mm  B:6.5mm   D:1.8mm   C:1.5mm
Thinckness of terminal 0.3mm
Rigid/soft Cable2*0.5mm2
Conductor Size2*22AWG
Voltage rating300V
ColorWhite or OEM
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL/RoHS/SGS/CQC  approved standard


Item No.ConductorDimensions (mm)Terminal
Thinckness
Colour
mm²FLWB(mm)
TE05082*0.5814.55.06.51.81.50.3

White
TE75082*0.75814.75.56.72.11.8Blue
TE75101016.65.56.72.11.8
TE10082*1.0815.15.57.12.32.0Red
TE10101017.15.57.12.32.0
TE15082*1.5815.56.47.22.62.3Black
TE15121219.56.47.52.62.3
TE25122*2.51018.58.08.53.32.90.4Gray
TE25131321.58.08.53.32.9
TE40122*4.01223.18.811.14.23.8Orange
TE60142*6.01426.19.512.15.34.9Green
TE10-142*101426.612.612.06.96.5Brown
TE16-142*161431.319.017.38.78.3Mile
  UTL specialized in producing all kind of terminal block.Through persistent research and development, we have grown into a leading manufacturer of this line.We produce several series products for you choose,if you are interesting in any of our product Please feel free to contact us or E-mail us we are happy to give you more details.


UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
