Techwin China Arc Fusion Splicer Similar to Fujikura Fusion Splicer

Prod Model:	Fusion Splicer TCW-605C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Fusion Splicer Tcw-605c
Work Mode:	Automatic/Manual
Return Loss:	60dB or Greater
Fiber Coating:	100um~1000um
Storage:	4000 Results
Align Mode:	Advanced Profile Alignment System(PAS)
Dimensions (L*W* H):	160mm*150mm*145mm
Data Transmission:	USB Port
Warranty:	One Year or More
Work Altitude:	0~5000 Meters Above Sea Level
Wiring Devices:	Integrated Wiring
Certification:	ISO
Condition:	New
Type:	Fiber Optic Equipment

Product Description

Techwin China Arc Fusion Splicer Similar to Fujikura Fusion Splicer


Product Description

product description

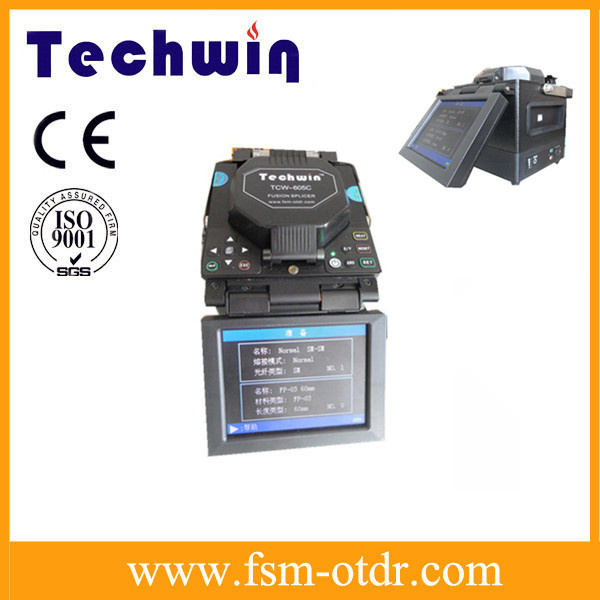

Techwin Fibre Optic Splicing Machine  TCW-605C ( One Year Warranty )

Fibre splicing machine TCW-605c  fusion splicer adopts high-speed image processing technology and special precision- positioning technology,automatically finish the whole process of fiber fusion in 8 seconds typically, TFT LCD monitor displays all steps of fiber fusion clear at a glance.

Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.

Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.
Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, Italian, Turkish

Splicing machine Tcw-605c with THREE advantages:

--Suitable for 0.25mm bare fiber, 0.9mm buffered fiber, Splice on Connector, Flat FTTH ---Fiber Cable(Drop Cable), clamp Change free(The First, Unique in the world)

--Button and Menu is same as FSM-60S, in accord with the habit of usage

--One Step Fiber Cleaver with Automatic Blade Rotation (The First, Unique in China)

Features
Techwin Fibre Optic Splicing Machine  TCW-605C ( One Year Warranty )

--PAS image digital processing system,core or clad alignment is optional;

--The arc is calibrated by the environmental parameters as temperature and pressure;

--Variety display group,the Maximum image magnification is 300;

--Typical splicing time is 8 seconds,30 seconds heating;

--Intelligence operate,auto heat or work when open the shield;

--High definition 5.7' colorful LCD;

--Hight to 4000 groups fusion records can be stored;

--High capacity,plug battery,long work time;

--Multilingual machine




Product Details
Techwin Fibre Optic Splicing Machine  TCW-605C ( One Year Warranty )


5.6 inch TFT color LCD monitor display
The fiber magnify  up to 3000 times,all steps of fiber fusion clear at a glance.
Auto caculate splicing loss,low splicing loss.



The Manu of  Fiber Cable Splicing Machine TCW-605C
Mutilanguage to be provided
Arc Calibration free system



The Advanced core to core fiber profile alignment system(PAS)
Heater built-in tube heater,the average haeting time 28 seconds
Long life battery,support 220 cycle (splicing/tubeheating),to meet one days work




Delivery:
7 days after receiving the payment.

Operate environment:

Parameter calibration experiments:

 High voltage arcing circuit environment parameter calibration experiments have been carried out in Shanghai, Xi'an, Lanzhou, Xining, Lhasa, 0 to 5000 m altitude.

The machines can be intelligent perception of the change of the outside temperature, pressure and other environmental parameters, automatically adjusts discharge parameters to produce a stable arc.
