Tefc (IP54) Three-Phase Electric Motor (for Glass Edging Machine)

Name: Tefc (IP54) Three-Phase Electric Motor (for Glass Edging Machine)
Brand: all-electronics-online.com
SKU: 720953485
Availability: InStock
Rating: 4.7 (38 reviews)

Price:	US $ 145/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	M803-2, 3kW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection Class:	IP44
Insulation Grade:	B
Duty Type:	S1
Frequency:	50Hz
Voltage:	380V
Power:	1.5kw-3kw
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Brand:	Yinda

Product Description

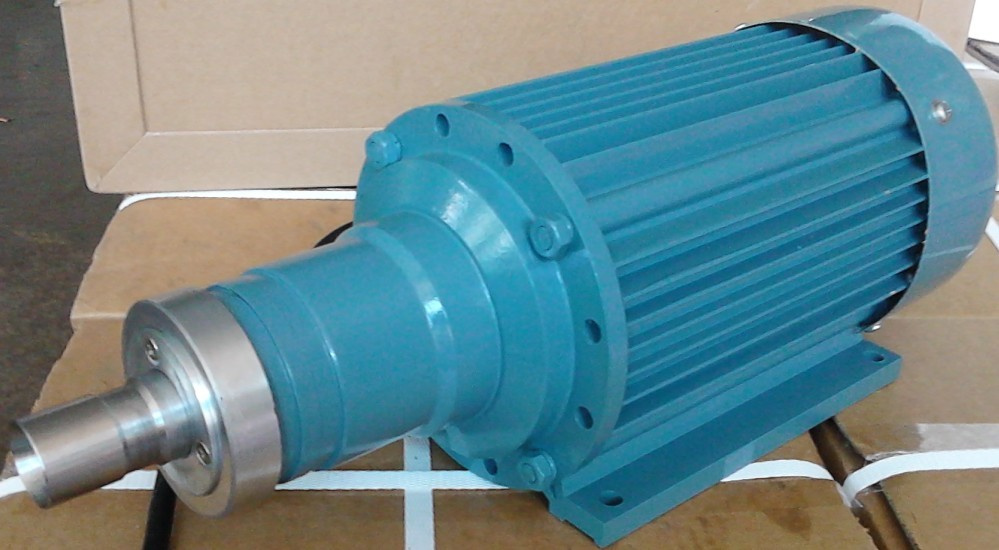

TEFC ( IP54)Three-Phase Electric Motor ( for Glass Edging Machine)

Product Features:
(Electric Motor, Electrical Motor, Ac Moor, Inductioin Motor, Asynchronous Motor)

M series three-phase asynchronous motor is designed for all types of glass machinery Its main features:
1, excellent performanceof waterproof and dustproof to meet the requirements of glass machining;
2, samll radial and axial clearances
3, LOW-vibration design to ensure the dimensional accuracy and surfacefinish;

Technical data

Type	kw	r/min	%	cosΦ	A	Ist	Tst	Tm	Lp dB(A)	mm/s	kg
M801-2	1.5	2840	81	0.85	3.3	7	2.2	2.5	67	1.8	25
M801-2	1.75	2840	81	0.86	3.8	7	2.2	2.5	67	1.8	27
M802-2	2.2	2840	82	0.87	4.7	7	2.2	2.5	67	1.8	28
M803-2	3	2840	85	0.88	6.1	7	2.2	2.5	72	1.8	29.5
M802-4	1.5	1400	77	0.8	3.7	6	2.2	2.5	58	1.8	28
M901-2	1.5	2840	81	0.85	3.3	7	2.2	2.5	67	1.8	24.5
M901-2	1.75	2840	81	0.86	3.8	7	2.2	2.5	67	1.8	26
M902-2	2.2	2840	82	0.87	4.7	7	2.2	2.5	67	1.8	27.5
M903-2	3	2840	85	0.88	6.1	7	2.2	2.5	72	1.8	29
M90-4	1.5	1400	77	0.8	3.7	7	2.2	2.5	58	1.8	27.5

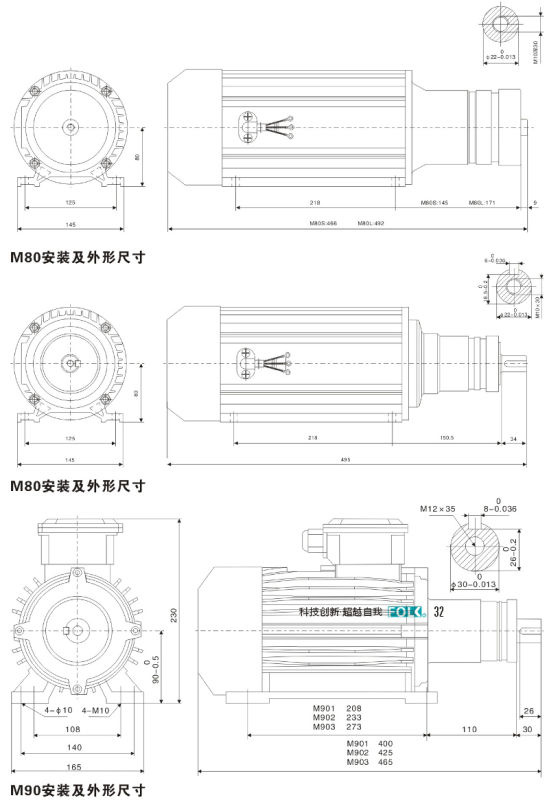

Dimension Drawing
