Teflon Insulated Thermocouple Cable

Name: Teflon Insulated Thermocouple Cable
Brand: all-electronics-online.com
SKU: 782740705
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 0.4-0.44/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	200/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Type K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	All Type Available
Sample:	Available
Positive Pole:	Chromel
Negative Pole:	Alumel
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Insulation Material:	Teflon
Certification:	RoHS
Conductor Material:	Alumel and Chromel
Sheath Material:	Teflon

Product Description

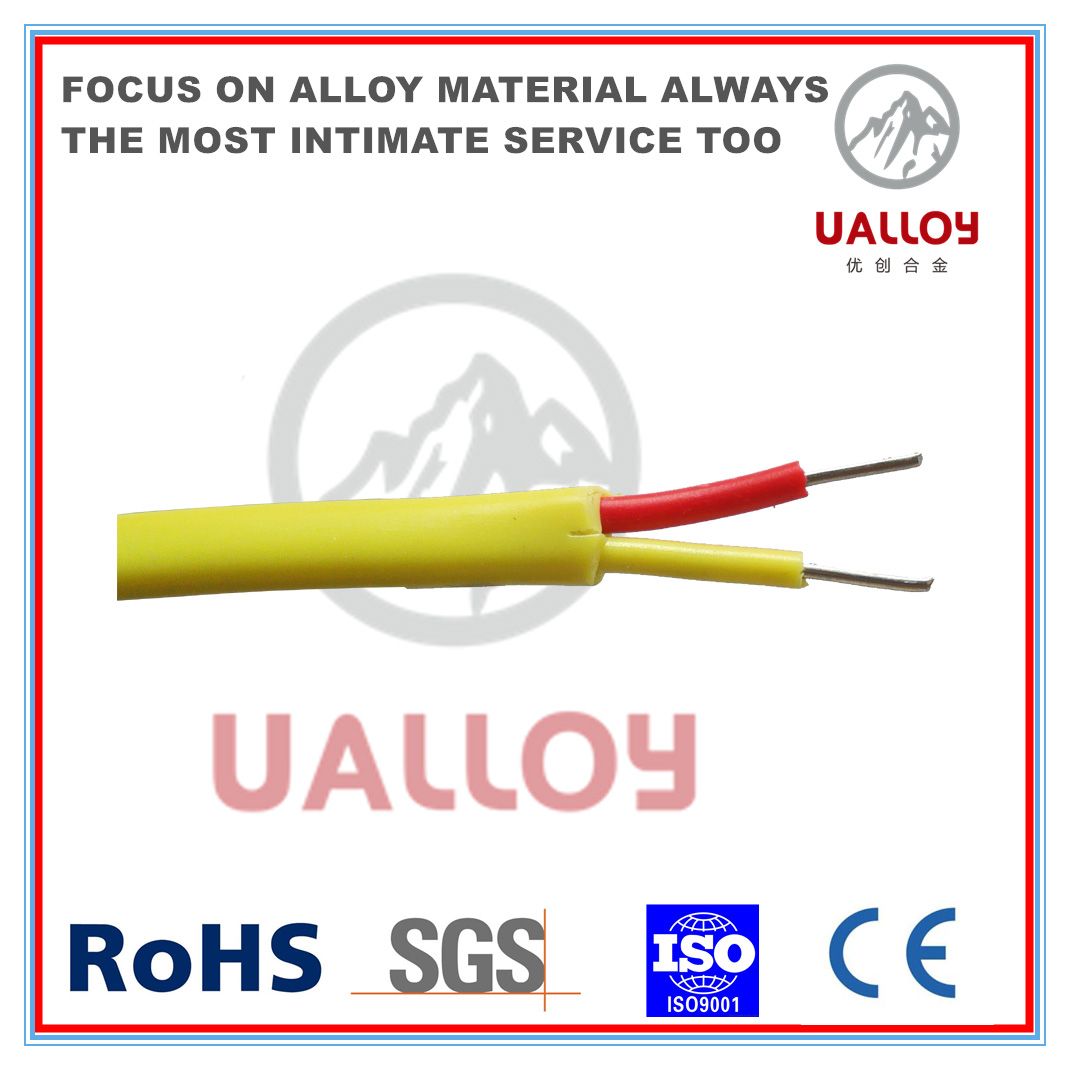

Teflon Insulated Thermocouple Cable
The products is manufactured according to the standards of GB/T4989-1994 "Compensating Wire for
Thermocouples" and JB/T7495-1994 "Compensating Cable for Thermocouples".
This kind of products are mainly used as the connect wire in the automatic measure instruments in the
electronic power industry, chemical industry, petroleum industry, metallurgy industry and national
defense industry, etc.
More details about the product:

Item No.	K-PT-PT-0.5R
Conductor Material	+Chromel, -Alumel
Conductor Dia	0.3mm*7/2
Insulation material	PTFE
Insulation color	+ red, -yellow
Cable Construction	Parallel
Inner Shielding material	PTFE
Jacket material	PTFE
Jacket color	red
Outer Shielding Material	/
Ground wire	/
Cable Dielectric Test	DC.500v
Net weight	25kg/km

Other sizes are available upon your request.
