Teflon MIL SPEC RF Coaxial Cable RG303

Name: Teflon MIL SPEC RF Coaxial Cable RG303
Brand: all-electronics-online.com
SKU: 644116945
Availability: InStock
Rating: 4.3 (143 reviews)

Price:	US $ 1.35-1.75/Meter
Trade Terms:	By Sea/ By air
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG303
Inner Conductor:	silver-plated copper
Insulation:	PTFE
Jacket:	FEP
Application:	RF Cable
Certification:	CPR
Conductor Material:	silver-plated copper
Cover Material:	FEP
Type:	RF CABLE

Product Description

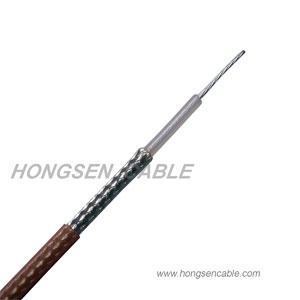

RG303 MIL-C-17 Coaxial Cable with Solid PTFE Insulated, Silver Plated Copper Braid, FEP Jacket

Physical properties:
Inner conductor: 0.94mm silver-plated copper
Insulation: 2.95mm solid PTFE,
Outer conductor: 3.45mm silver-plated copper braid, 96% coverage,
Jacket: 4.32mm FEP

Electrical properties:
Capacitance (pF/m): 96.5
Impedance (Ω ): 50.0
Velocity of Propagation (%): 69.5
Conductor DCR (Ohm/km): 25
Outer Shield DCR (Ohm/km): 14.1
Max Operating Frequency (MHz): 3000.0
Max Operating Voltage (RMS): 1900.0
Operating Temp Range (º C): -55 to 200

Construction

Item	Material		Diameter (inch/mm)
Inner Conductor	Silver Plated Copper Clad Steel		0.037	± 0.001	0.94	± 0.03
Dielectric	PTFE		0.116	± 0.005	2.95	± 0.13
Shield	95% Silver Plated Copper Braid		0.136	± 0.005	3.45	± 0.13
Jacket	FEP		0.170	± 0.005	4.32	± 0.13


Electrical Characteristics

Capacitance (pF/m)			96.5
Impedance (Ω)			50± 2
Velocity of Propagation (%)			70.0
Conductor DCR (Ohm/km)			53.5
Outer Shield DCR (Ohm/km)			14.1
Max Operating Frequency (MHz)			3000.0
Max Operating Voltage (RMS)			1400.0
Corona Extinction voltage (VRMS)			1900.0
Voltage Withstand (VRMS)			5000.0
Spark Test (VRMS)			2000.0
Operating Temp Range (ºC)			-55 to 200


Typical Attenuation ( @ 20 ºC)

Frequency (MHz)		Attenuation (dB/100ft)	Attenuation (dB/100m)
10		1.1	3.6
50		2.7	8.9
100		3.9	12.8
200		5.6	18.4
400		8.2	26.9
700		11.0	36.1
900		12.5	41.0
1000		13.5	44.3
3000		25.0	82.0

Application:
RG303 Coaxial cable are used in wireless communication, broadcast and military equipments for transmission of radio frequency signals.
