Telecom 75 Ohm Coax Cable (BT2001)

Name: Telecom 75 Ohm Coax Cable (BT2001)
Brand: all-electronics-online.com
SKU: 752197895
Availability: InStock
Rating: 4.8 (79 reviews)

Price:	US $ 0.01-1.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BT2001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc
Insulation:	Solid PE
Shield:	Bc/Tc Braid
Jacket:	PVC
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial

Product Description

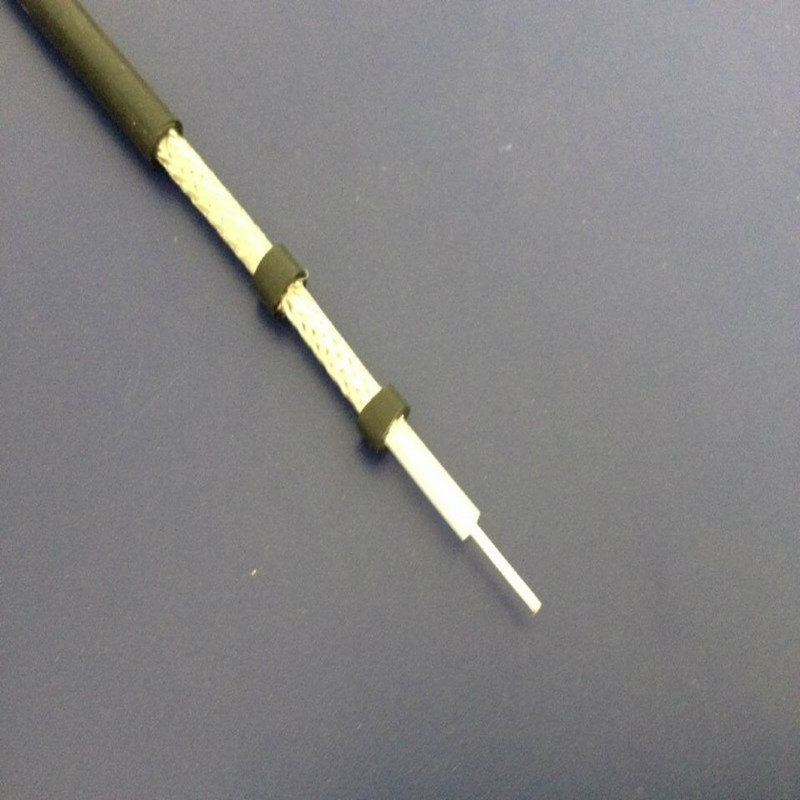

Telecom Coaxial Cable BT2001 Single Core

This 75 Ohm Telecommunication coaxial cables BT2001, especially designed for digital telephone exchange and interconnection of telecommunication equipment, in a range of telecommunication systems.

Telecom Coaxial Cable BT2001 Single Core
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper		7*0.2
Dielectric	Solid PE		2.45
Shield	Bare Copper Braid		112*0.1
Jacket	PVC/LSZH		4.40

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	75	@1MHz	1.26
Velocity of Propagation(%)	67	@50MHz	9.6
Return Loss(dB)	≥20	@100MHz	13.8
Capacitance	66	-----	-----
Shielding Effectiveness(dB)	≥90	-----	-----
Operating Temperature(ºC)	-30 to +70	-----	-----

Remarks:
1). 8 cores and 16 cores of BT2001 are also available.
2).Regular color of cable jacket: white, grey, black.... can also be made as per cusotmer's reuquirements.
3).Packing:1000M/Reel, can also be packed as per customer's requirements.
4).Lead time: Within 2 weeks.

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
