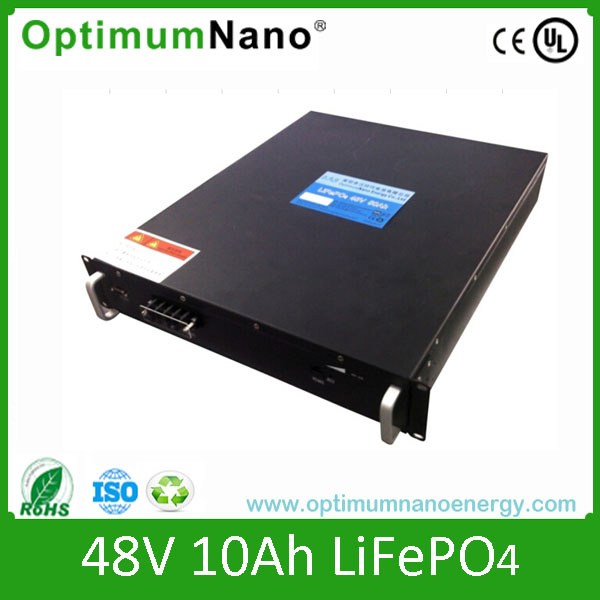

Telecom Base 48V 10ah Lithium Ion Battery
| Price: |
US $ 350-410/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
OPT-48-010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery Model: |
48V 10ah Lithium Ion Battery |
| Components: |
LiFePO4(Lithium Iron Phosphate) |
| Rated Voltage: |
48V |
| Standard Capacity: |
10ah |
| Dimension: |
485*442*46mm |
| Weight: |
About 10kg |
| Application: |
Telecommunication Base |
| Build-in BMS: |
Yes |
| Package: |
Black Iron Case |
| Warranty: |
2year |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Rated Capacity: |
10ah |
| Standard Voltage: |
48V |
| Usage: |
Telecom Base |
Product Description
Telecom Base 48V 10ah Lithium Ion Battery
Quick DetailsPlace of Origin: Guangdong, China (Mainland)
Brand Name: OptimumNano
Model Number: OPT-48-010
Type: Li-ion
Nominal Voltage: 48V
Size: 485*442*46mm
Nominal Capacity: 10Ah
Case material: steel case
charging current: 10A(adjustable)
Voltage range: 40V-58.4V
constant Discharge current: 10A(adjustable)
Max Discharge current: 15A(adjustable)
Working temperature: -20~+60°C
Expected Cycle life: 3000times
Certificate: SGS, UL, CE, RoHS, IEC-62133, TS16949 etc.
Warranty: 2 yearsProduct datasheet:| Item | Parameter |
| Rated voltage | 48V |
| Rated capacity | 10Ah |
| Charge current | 10A |
| continuous discharge current | 10A |
| Max discharge current | 15A |
| Dimension | 185*442*46mm |
| Weight | ~10kg |
| Built-in BMS | Yes |
| Communication | RS45/RS232 |
Packaging & DeliveryPackaging Details: 1battery per wooden caseDelivery Detail: 15-22DaysCertification UL,CE,ROHS,UN38.3,TS1649,ISO9001AdvantagesGeneral features of OptimumNano Lithium Iron Phosphate Battery(LiFePO4 Battery): 1. Long life cycle, no memory effect.
2. High C-Rate Discharge capability, can be fast charged.
3. High peak power available under high depth of discharge.
4. High energy density, small size, light weight.
5. Good performance in high/low temperature working condition.
6.100% safe / environmental friendly / maintenance free. Why choose OptimumNano LiFePO4 batteries? Comparing with other China energy suppliers who only begin to engage in this vocation one or two years ago, we are the one or two producers started to research and develop LiFePO4 BATTERY as early 2006 and had been the main supplier of the Shenzhen 26th Summer Unversiade New Energy Automitive Lithium Iron Phosphate Battery Power System. In May 2008, we have finished the First Pure Electric Bus for Shanghai Expo Project. Until now ,we have become famous Electric vehicle power battery supplier. OptimumNano LiFePO4 Battery test - Performance testOptimumNano engineers take some tests to know battery performance clearly. Those tests include the different C-rate discharge, battery performance in difference temperatures, fast charging, and cycle life curves. OptimumNano LiFePO4 Battery test - Abuse testUnlike LiMo2O4 or LiCoO2 batteries, LiFePO4 modular structure is very stable, thus LiFePO4 battery is very safe in mis-opertation and hard conditions, Here are some abuse tests, such as Over-charge performance, Over-discharge performance, Short-circuit performance in normal temperature, Acupuncture performance, Thermal Shock safe performance etc. OptimumNano Battery quality control method 8conformity:make sure the battery stability and long lifetime1.Conformity in capacity2. Conformity in voltage3. Conformity in impedance4. Conformity in electricity5. Conformity in self-discharging6. Conformity in discharging platform7. Conformity in CC charging8. Conformity in lifetime OptimumNano all in one solution, Battey pack + BMS + ChargerOptimumNano offer "Battery Pack + BMS + Charger ", as all in one solution. Our engineers would test / adjust all related components if customer needed. Like CAN BUS communication or on-off signal way details. Workshop: | Lifepo4 Battery Compared with SLA Battery |
| No. | Item | LiFePO4 Battery | SLA Battery | Notes |
| 1 | Weight to Power Ratio | 120-130Wh/kg | 32-37Wh /kg | 4:01 |
| 2 | Dimension to power ratio | 210Wh/L | 70Wh/L | 3:01 |
| 3 | Cycle Life Time | More 2000 times | 300 times | 6:01 |
| 4 | High Rate Charge /Discharge Performance | Higher than 96% | 60~70% | 1.6:1 |
| 5 | Charging performance | 1Hour | 4Hours | 1:04 |
| 6 | Temperature Range & performance | Below20~60degree centigrade LiFePO4 High temperature discharge current is about 105% | Below20~45degree centigrade SLA Battery temperature discharge current is about 80% | 1.3:1 |
| 7 | Monthly Self-discharge Rate | About 3% | More than 10% | 1:03 |
| 8 | Safety | Not cause fire and explosion when against overcharge, acupuncture, extrusion, high temperature and other unusual conditions. | Good safety | LiFePO4 Battery is the safest lithium battery in the market |
| 9 | Environmental | Environmental friendly | Environment pollution | Without any heavy metals or rare metals
|
Welcome to visit OptimumNano Energy Co., Ltd
Company Name: OptimumNano Energy Co., Ltd
Name of Exhibition: The China Sourcing Fair
Address: Hong Kong Asia Exhibition Hall
Booth No: At at 9B05
Dates: Oct 11-14, 2015(4 Days)
In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.
In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future
In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.
In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".
In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.
In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.
In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.
In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry
OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.
After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
