| Prod Model: |
Outdoor Battery Cabinets |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Voltage: |
220/230/240VAC |
| Voltage Range: |
115~295VAC(±3VAC) |
| Frequency Range: |
50Hz(46~54Hz),60h(56Hz~64Hz) |
| Power Factor: |
0.98 |
| Voltage Precision: |
220/230/240X (1±2%)VAC |
| Frequency Precision: |
50/60Hz±0.05Hz |
| Wave Distortion: |
Linear Load <3% Non-Linear Load <6% |
| Transfer Time: |
0ms(AC to DC ) |
| Crest Factor: |
3:1 |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Unbalanced Loads |
| Brand: |
Sorotec |
Product Description

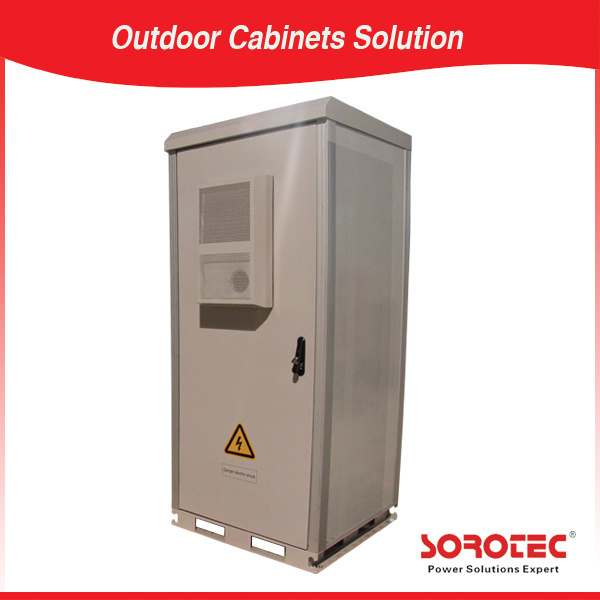

Telecom distribution box Outdoor battery cabinet
IP55 Outside Plant Power Outdoor Cabinet Outdoor cabinet is the high protection grade battery cabinet Specialized for the outdoor base station power supply Facilities.The system integrate of Intelligent temperature Controlled ventilation system, heater and reserve battery Installation space.The high protection grade battery Cabinet and the advanced temperature control design Guarantee the reliable operation of the system in the Outdoor environment
Advantages and Characteristics:
1.Wide working temperature range:-10--+45° C( Southern type), -40--+45° C(Northern type)
2.The battery warehouse space:Two groups reserved battery installation space, each group capacity biggest to150AH
3.Easy maintenance:Completely front-side operation and maintenance
4.Easy to install:Suitable for the ground, platform of roof, the tower platform etc
5.Protection level:IP44, effectively separated from external factor, guarantee equipment can operate reliably
6.Intelligent ventilation system:Effectively reduce the system consumption
7.Security design:With the intelligent entrance guard alarm function and strong prevention of burglary module
Features:
1.High transfer efficiency, highest can reach 90%. No load cost is no more than 5W.
2.Output pure sine wave.
3.Protections: against short-circuit, overload, battery reverse polarity, low-voltage, and over-voltage protection, etc.
4.Strong ability of resist concussion, can load all kinds of electric apparatus and industry equipments, such as air condition, refrigerator, television, fan, washer, etc.
5.with temperature control function, which can save energy consumption.
6.with overload automatic recovery function
7.The service life can reach a decade
Technical Specifications of Outdoor UPS HW9110E Series:
Model |
HW9110E 1-10KVA |
1KVA |
2KVA |
3KVA |
6KVA |
10KVA |
Capacity |
1KVA/800W |
2KVA/1600W |
3KVA/2400W |
6KVA/4800W |
1000KVA/8000W |
Nominal voltage |
220/230/240VAC |
Nominal frequency |
50/60HZ |
Input |
Voltage Range |
115~295VAC(±3VAC) |
176~297VAC(±3VAC) |
Frequency Range |
50HZ(46~54HZ),60H(56HZ~64HZ) |
Power Factor |
0.98 |
Output |
Voltage Precision |
220/230/240X (1±2%)VAC |
Frequency Precision |
50/60HZ±0.05Hz |
Power Factor |
0.7/0.8(optional) |
Wave Distortion |
Linear load <3% Non-linear load <6% |
Overload capability |
Overload (110% ~ 150%) for 30 seconds,then automatically transfer to bypass.When load is normal,it can automatically transfer to normal mode. |
Crest factor |
3:1 |
Transfer Time |
0ms(AC to DC ) |
Battery |
DC supply voltage |
36VDC |
96VDC |
96VDC |
240VDC |
240VDC |
Charge current |
4A/8A(optional) |
4A/8A(optional) |
4A/8A(optional) |
4.2A |
4.2A |
Internal battery capacity |
(38/65/80/100AH)optional |
Panel display |
LCD |
Display input and output voltage, frequency, battery voltage, battery capacity, load percentage |
Communications |
communicate interface |
RS232,SNMP card(optional) |
Work environment |
Temperature |
0~40°C |
Humidity |
0~95% Non-condensing |
Storage temperature |
-25°C~55°C |
Elevation |
<1500m |
Acoustic Noise ( within 1 meter) |
<50dB |
Physical Characteristics |
Weight(KG)
|
85 |
125 |
125 |
150 |
155 |
Dimensions ( Wx D x H )mm |
640×900×900 |
640×900×1185 |
640 ×900×1185 |
940×940×1770 |
940×940×1770 |
|
|
|
|
|
|
