| Prod Model: |
TL12-180 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Capacity: |
12V10ah |
| Dimension: |
560*125*316 |
| Weight: |
54.0kg |
| Certifications: |
CE RoHS UL ISO |
| Color: |
Black/ White/ Grey |
| Company Type: |
Factory |
| Container Material: |
ABS |
| Configuration: |
Mh-A31A6+/7- |
| Internal Resistance: |
3.0m Ohm |
| Terminal Type: |
T46 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

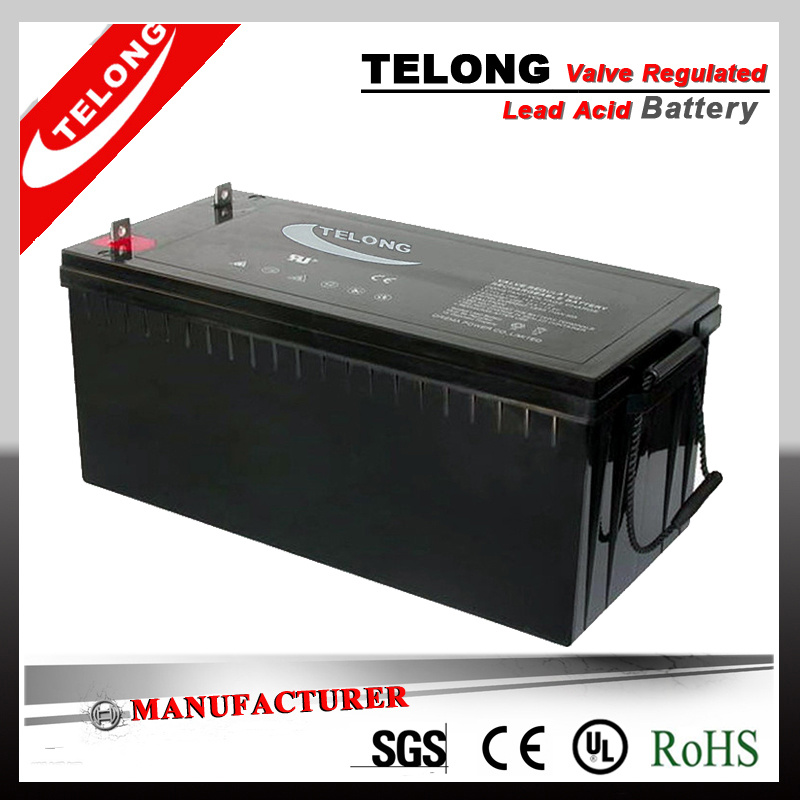

12V180ah Rechargeable Front Terminal Lead Acid Battery Solar Power Battery UPS Battery
Model: TL12-180
Product Description
1. Specification
- Rated Capacity: 12V180AH
- Dimension: 560*125*316
- Weight: 54.0kg
- Certifications: CE RoHS UL ISO
- Color: Black/ White/ Grey
- Company Type: Factory
- Container Material: ABS
- Configuration: Mh-A31A6+/7-
- Internal Resistance: 3.0m Ohm
- Terminal Type: T46
2. Applications
- Remote Switching Control equipments
- Communication systems Portable Lights
- Alarm systems Power tools
- Medical equipments Electric toys
- Fire and lighting for Emergency systems
- Uninterruptible power supplies (UPS) and stand-by power for computers
3. Features
- When it is safe surroundings, maintenance free, and add water is not need.
- Equalization charges are not required and cycle or standby (or float) use.
- Long life for 3 year.
- low resistance and energy output is more remarkable.
- Fully enclosed (not liquid leakage, no acid gas spill).
- Low self-discharge rate.
4. Quality Assurance
- Equipment control
We adopt the entire computer automatic control (Density testing, adding acid, charging, etc. )
- Raw material control
Any raw material will be forbidden used in the production if they didn't pass the testing by laboratory strictly.
- Production process control
The semi-finished products must pass several inspections in the production line.
- Finished products control
Before packaging, the finished battery must be tested 100% by our function testing machine and pass the inner resistance testing, density testing, 3-5º C discharge performance testing etc.
- Shipment control
The goods can't be sold unless their appearance and performance are tested 100% by the professional inspector.
5. Welcome to visit our website
http://www.sztlg.com/
http://tlgbattery.en.made-in-china.com/
| NO. | Model No. | Nominal Voltage
(V) | Rated Capacity
(AH) | Dimension(mm) | Terminal | Weight
±4%(Kg) |
| L | W | H |
| mm | mm | mm | Type | Kg |
| 1 | TL12260 | 12 | 26 | 165 | 125 | 174 | F7/F11 | 8.5 |
| 2 | TL12280 | 12 | 28 | 165 | 125 | 174 | F7/F11 | 9 |
| 3 | TL12320 | 12 | 32 | 196 | 133 | 172 | F7/F11 | 11 |
| 4 | TL12380 | 12 | 38 | 196 | 165 | 175 | F4/F11 | 14 |
| 5 | TL12550 | 12 | 55 | 230 | 138 | 208 | F11/F5 | 16.5 |
| 6 | TL12650 | 12 | 65 | 348 | 168 | 178 | F5/F11 | 22 |
| 7 | TL12800 | 12 | 80 | 348 | 168 | 178 | F5/F11 | 25 |
| 8 | TL121000 | 12 | 100 | 328 | 171 | 214 | F5/F12 | 30 |
| 9 | TL121200 | 12 | 120 | 409 | 177 | 229 | F5/F12 | 35 |
| 10 | TL121500 | 12 | 150 | 483 | 170 | 240 | F5/F12 | 45 |
| 11 | TL122000 | 12 | 200 | 522 | 240 | 219 | F12/F16 | 63 |
| 12 | TL22500 | 12 | 250 | 520 | 268 | 220 | F12/F16 | 78 |
