Telecommunication Fiber Optic Patch Cord FC-Sc

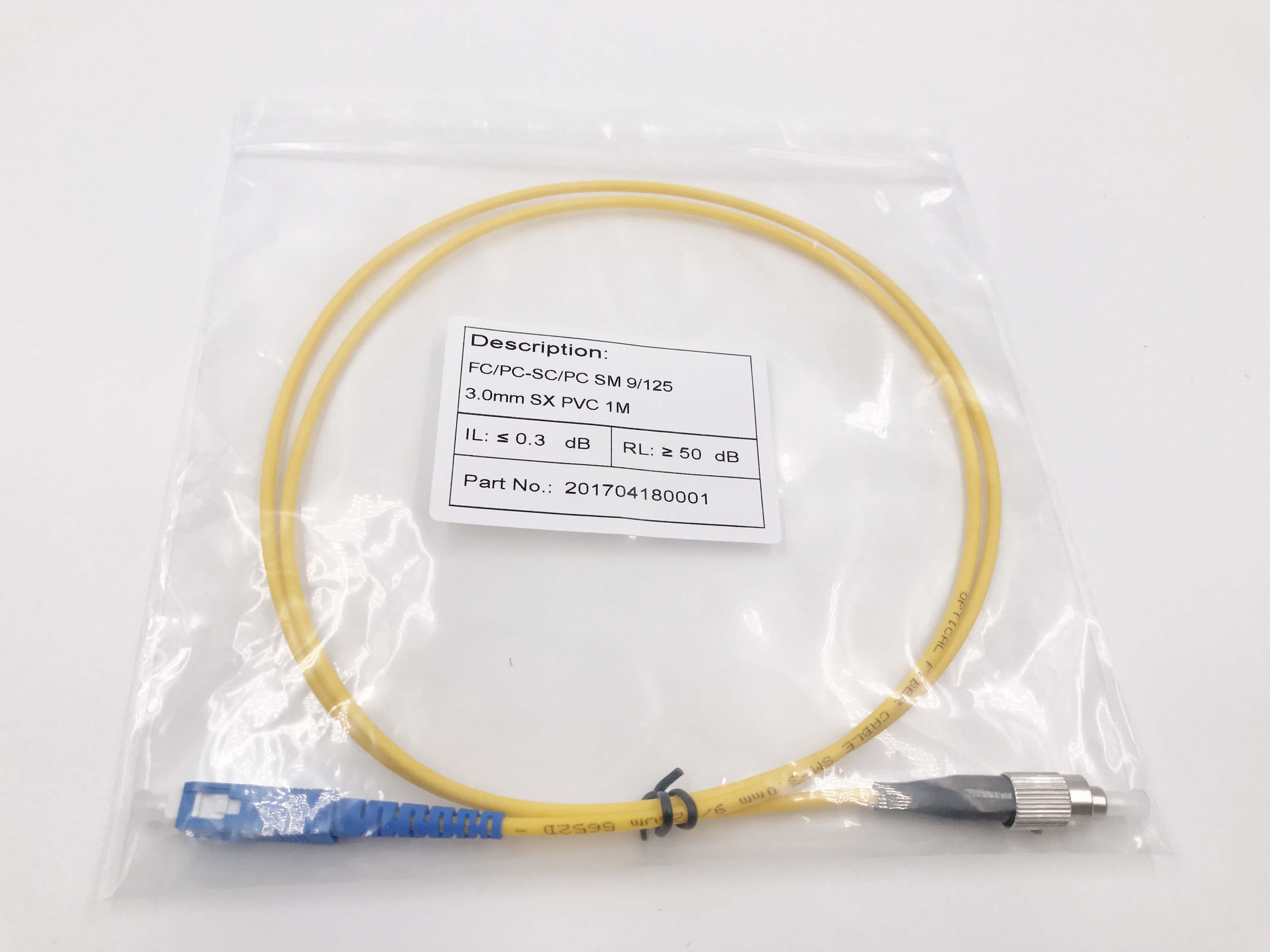

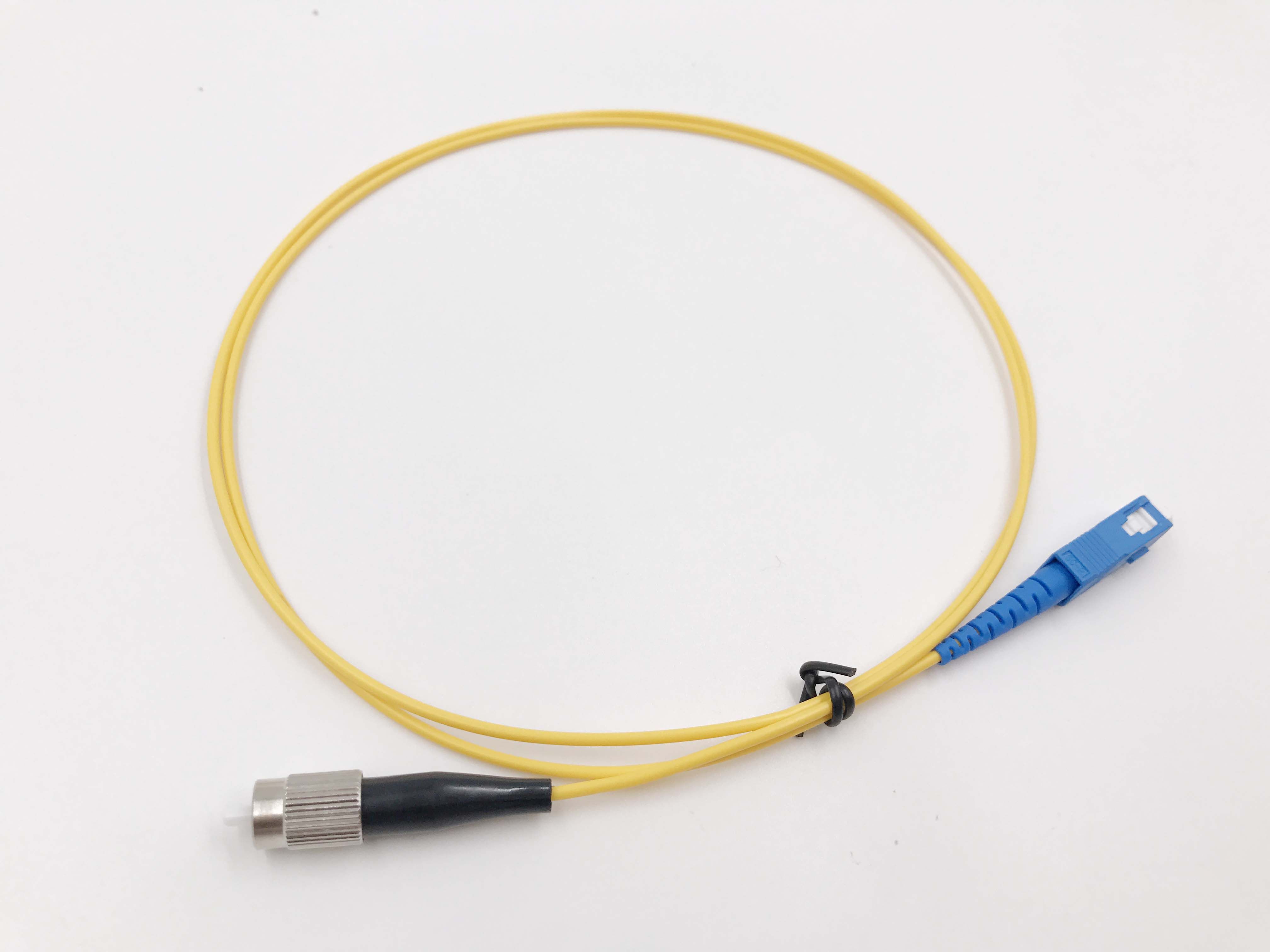

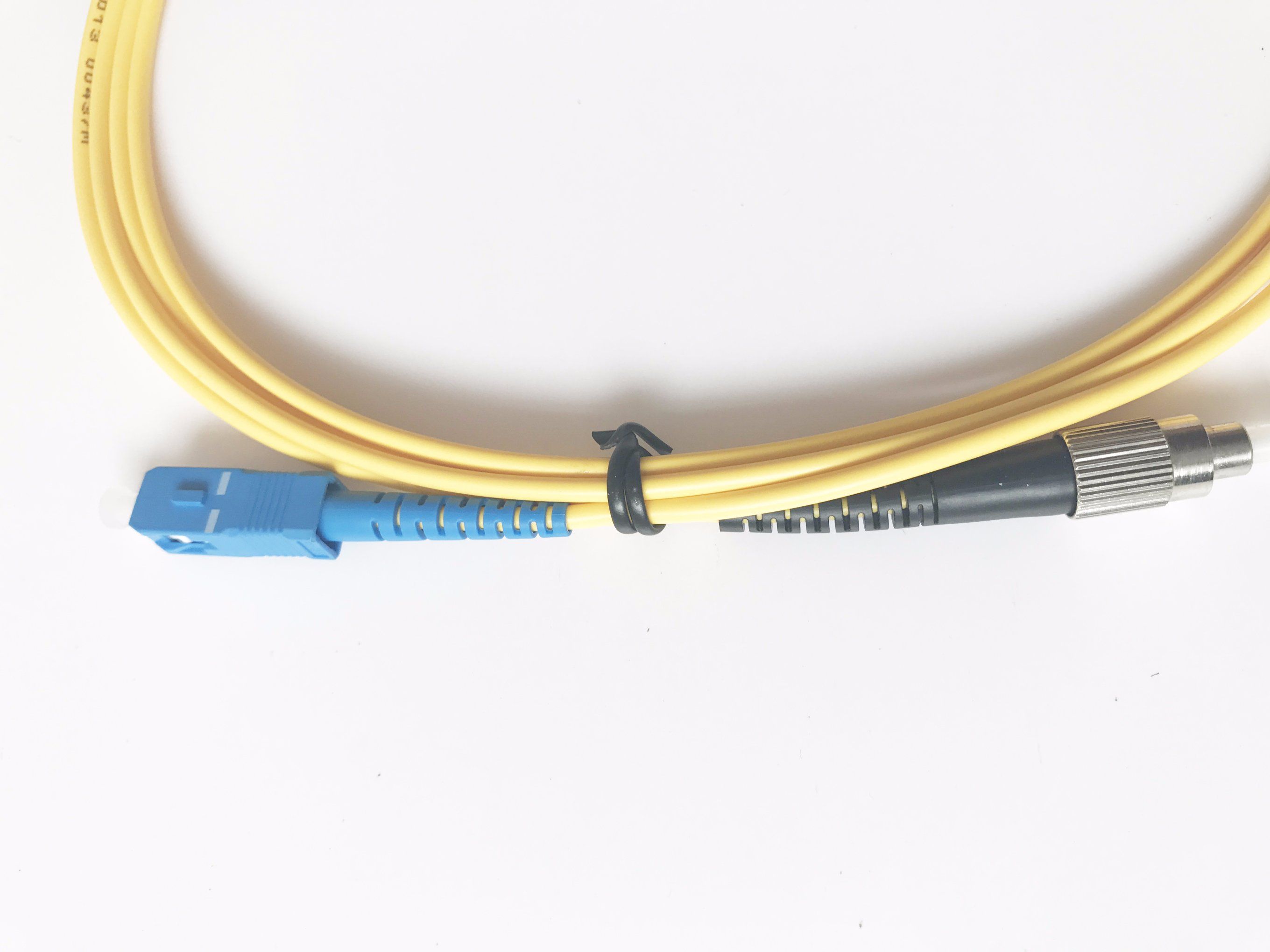

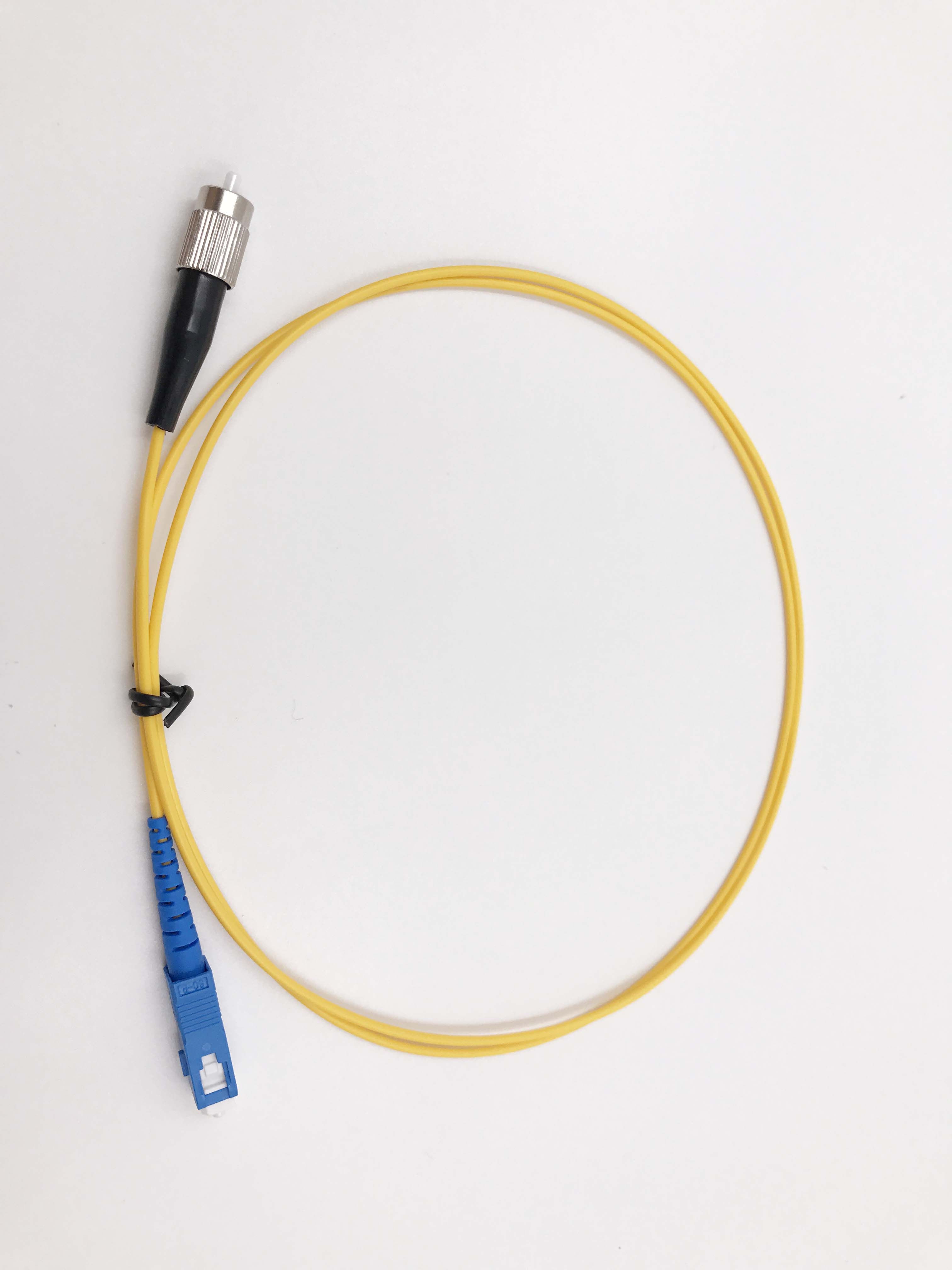

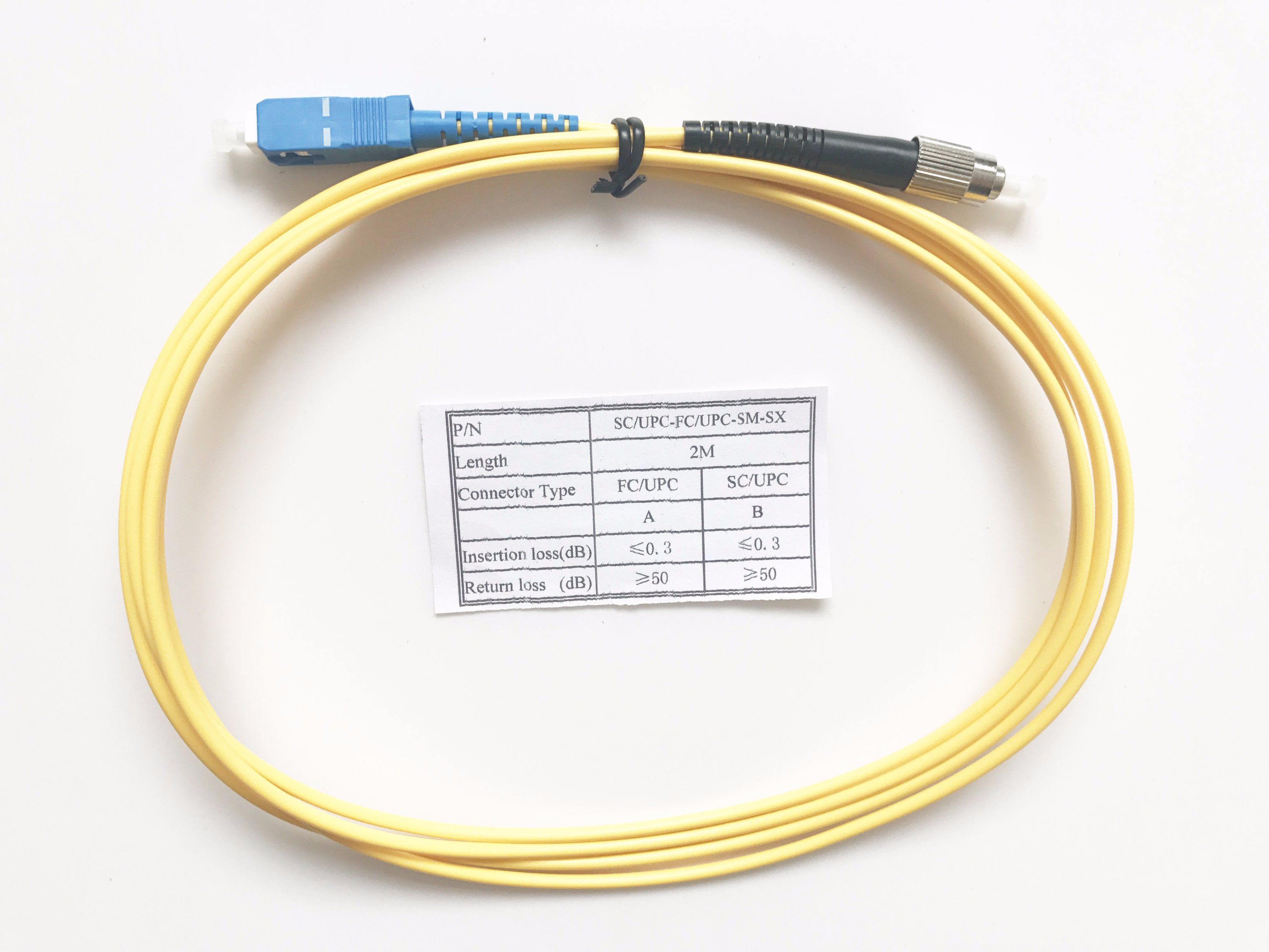

Name: Telecommunication Fiber Optic Patch Cord FC-Sc
Brand: all-electronics-online.com
SKU: 809718545
Availability: InStock
Rating: 4.8 (150 reviews)

Price:	US $ 0.3-1.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	FC-SC
Certification:	CE

Product Description

Fiber Optic Patchcord

Features:
Low insertion loss and High Return Loss
Good durability
Good exchangeability
High temperature stability
compliant with standards of Telcordia GR-326-CORE

Application:
Optical Fiber Communication Systems
Optical Access Network
Fiber optic data transmission
Optical Fiber CATV
Local Area Network (LAN)
Test Equipment

Description:
Connector:SC,FC,ST,LC,MU,MTRJ,E2000, etc
Polishing type:PC,UPC,APC
Fiber core:Singlemode(G652D,G657A)
Fiber cable:Simplex,Duplex,Multi-core,Ribbon,Distribution, Armoured, etc
Cable OD:0.9mm,2.0mm,3.0mm,etc
Cable Material:PVC-OFNR,PVC-OFNP,LSZH, etc
Patchcord Length:1m,2m,etc

Specifications:

ITEM	SM/MM Patchcord
Polishing Type	UPC	APC
I.L	<=0.3dB,MTRJ<=0.5dB	<=0.3dB
R.L	>=55dB,MTRJ>=30dB	>=65dB
Operating temperature	-20ºC~75ºC
Storage Temperature	-40ºC~75ºC
100 mating cycles loss	I.L changed≤0.1dB
Durability	>1000 cycles

ITEM	PC Polishing		APC Polishing
	SC Type	LC Type
R.O.C	10~25mm	7~25mm	5~12mm
Apex Offset	<50um		<50um
Fiber Height	-125nm-50nm		-100nm-100nm
Polishing Angle			8°± 0.3°

FAQ
Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for free.

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
