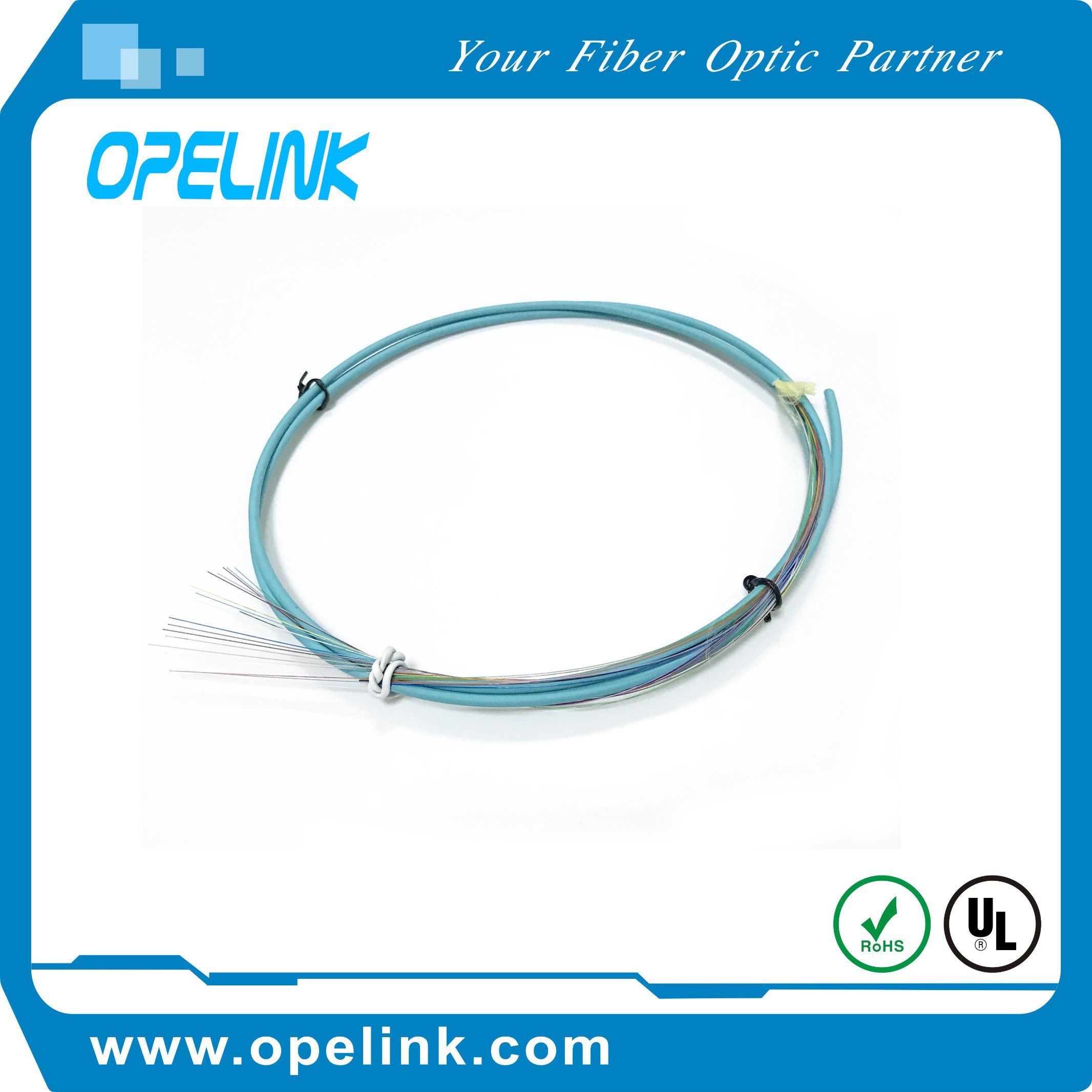

Telecommunication Passive Fiber Optical Drop Cable PVC/LSZH Simplex Fiber Cable

Name: Telecommunication Passive Fiber Optical Drop Cable PVC/LSZH Simplex Fiber Cable
Brand: all-electronics-online.com
SKU: 690848041
Availability: InStock
Rating: 5 (64 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Optical drop cable
Tensile Strength:	200~600
Crush Resistance:	300~1000
Nominal Weight:	9.0kg, 11kg
Temperature Range:	-20~70 Degree
Fiber Core:	G652D, G657A1, etc
Cable Shape:	Flat, Round.
Count:	1 Core, 2 Cores, 12 Cores, etc.
Reinforcement:	Metal, FRP
Fiber Jacket:	PVC, LSZH
Jacket Color:	White, Black
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

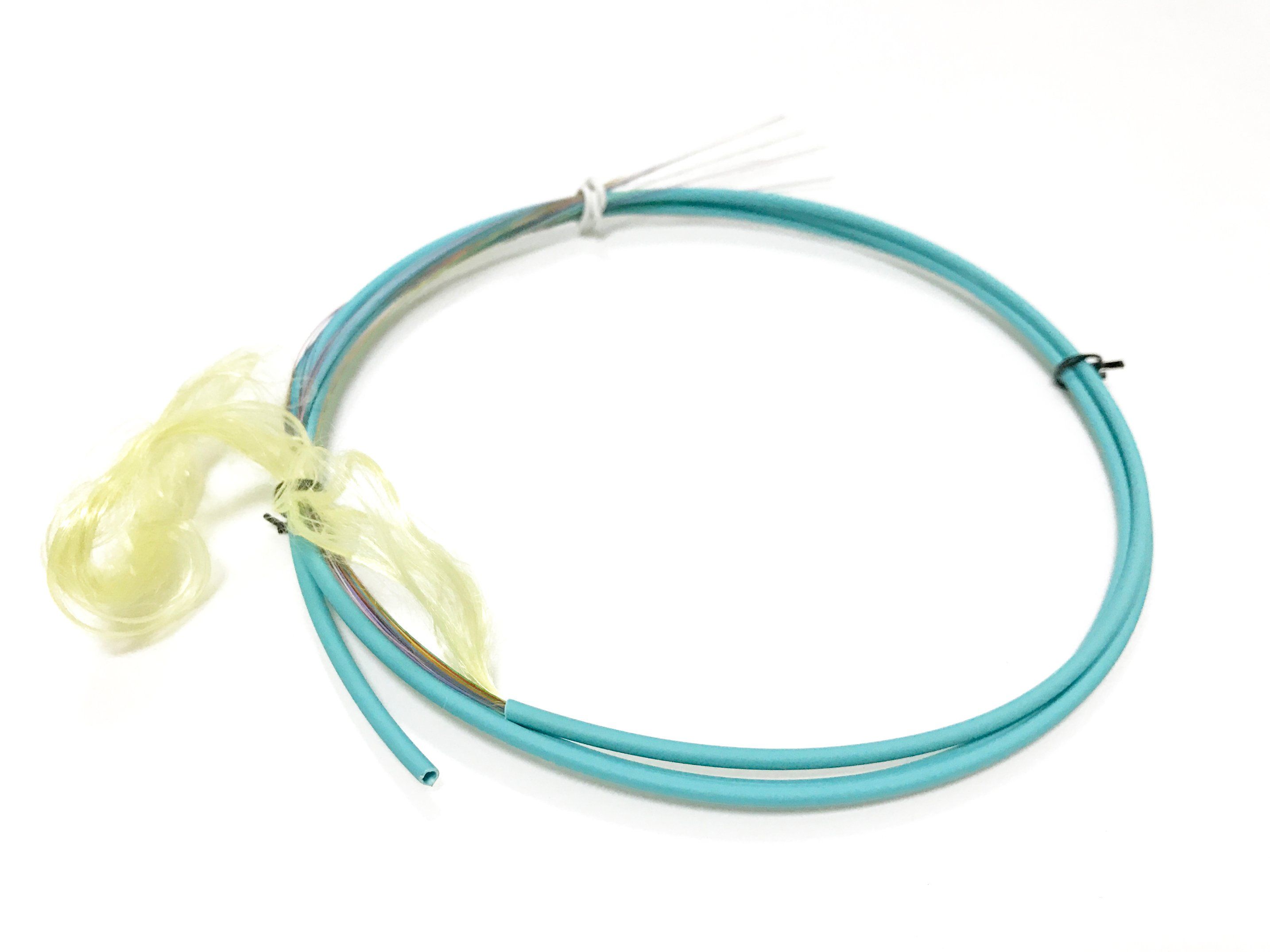

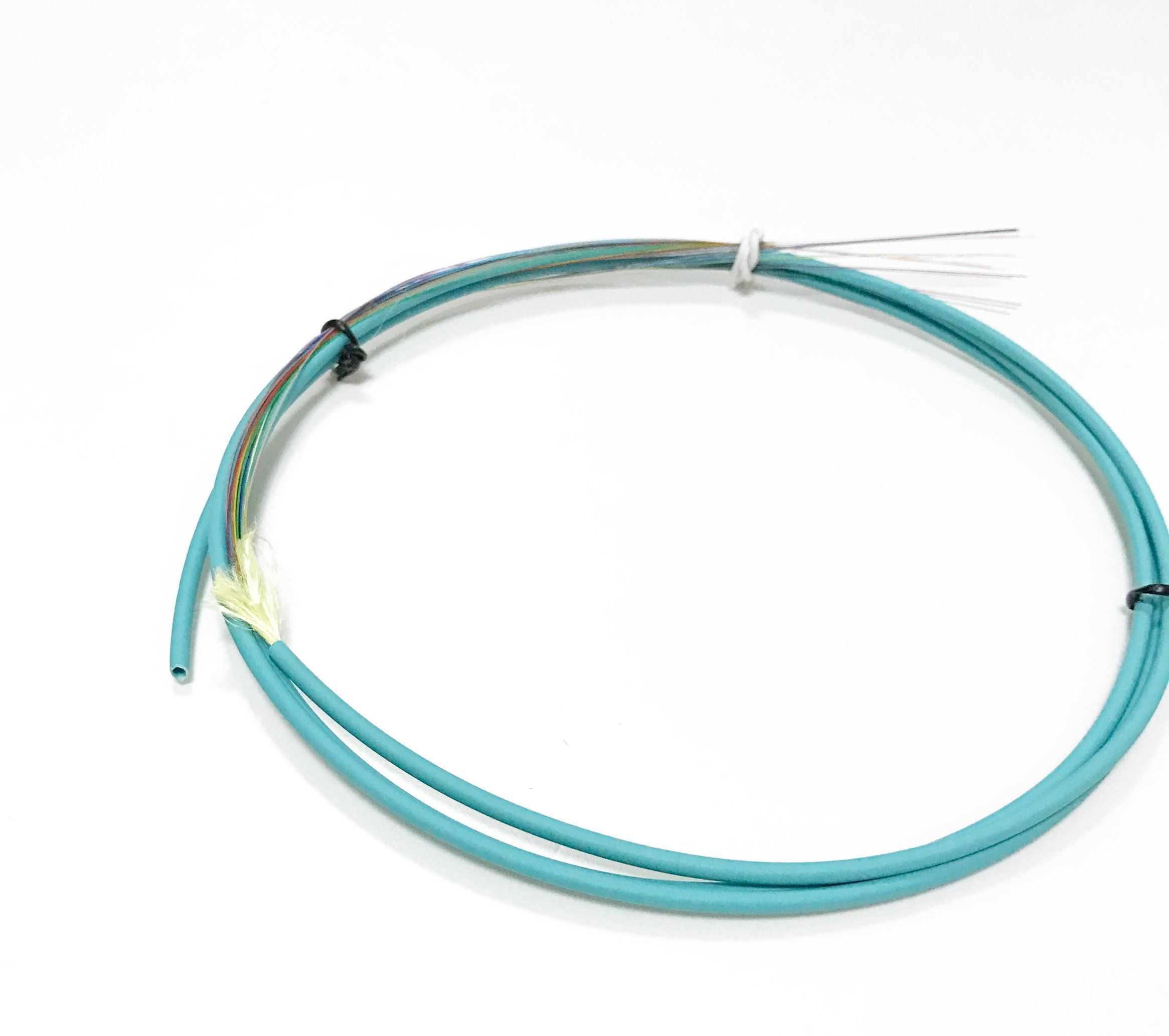

Telecommunication Passive Fiber Optical drop cable PVC/LSZH Simplex Fiber Cable
Feature:
High tensile strength due to aramid strength member;
Good flame retardant properties;
Stable temperature performance;
Excellent stripability with tight buffered fiber;
High uniformity of geometrical characteristics.

Application:
Indoor riser level and plenum level cabling;
Fiber jumper or pigtail;
Indoor riser level and plenum level cabling;
Interconnections between instruments and communication Equipment

Technical Parameters:

Outer diameter(mm)		1.6	1.8	2.0	2.4	3.0
Nominal Weight(kg/km)		2.8	3.0	4.3	5.0	7.0
Crush Resistance Long/Short term (N/100mm)		100 500	100 500	100 500	100 500	100 500
Tensile Strength(N) Long/Short term		80	80	100	100	150
Tensile Strength(N) Long/Short term		40	40	60	60	80
Min.Bending Radius(mm)	Dynamic	20D
Min.Bending Radius(mm)	static	10D
Temperature Range		-20ºC-70ºC

MM	G.651	A1a.1:50/125	color:Orange or other
		A1a.2:OM3	color:Aqua or other
		A1a.3:OM4	color: Violet or other
		A1b:62.5/125	color: Orange or other
SM	G.652D		color:Yellow or other
	G.657(A1,A2 ,B3)		color:Green or other
Jacket material:PVC,LSZH or Other

Note: 1. All the parameter just for reference

Order Information:

Fiber Core	Fiber Type		Count	Cable OD	reinforced	Fiber Jacket	Jacked Color
1=G652D 2=G657A1 3=G657A2 4=50/125 5=62.5/125 6=OM3 7=OM4 X=other		S=Simplex Z=Zipcord Duplex Y=Round Duplex F=Flat Duplex B=Breakout D=Distribution R=Ribbon A=Armored W=Waterproof X=other	001=1 core 002=2 cores 003=3 cores 024=24 cores XXX=other	01= 0.9mm 02=2.0mm 03=3.0mm 04=2.96.0mm 05=1.93.1mm 06=4.27.6mm 07=9.0mm 08=11.2mm 09=4.07.0mm XX=other	1=Kevlar 2=FRP 3=Armored steel tape 4=Steel wire 5= Armored steel tape & Steel wire	PR=PVC-OFNR PP=PVC-OFNP LH=LSZH PE=PE PU=TPU LN=Nylon HT=Hytrel xx=other	01=Blue 02=Orange 03=Green 04=Brown 05=Slate 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12 Color XX=Other

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
