Telecommunications Application HDI PCB

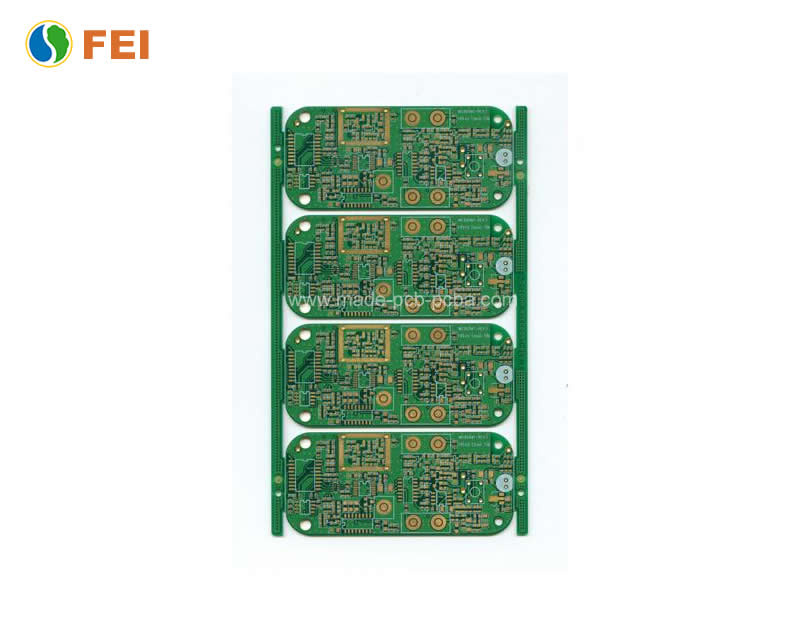

Name: Telecommunications Application HDI PCB
Brand: all-electronics-online.com
SKU: 676800982
Availability: InStock
Rating: 4.8 (48 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Rigid Circuit Board
Material:	Fiberglass Epoxy Resin + Polyimide Resin
Flame Retardant Properties:	V0
Dielectric:	FR-4

Product Description

Product Name: Telecommunications application HDI PCB
Base Material: FR-4 matirial
Copper Thickness: 0.5 OZ--2.0OZ
Board Thickness: 0.2 mm-3.8mm ( 8 mil-150 mil )
Min. Hole Size: 0.15mm(6mil)
Layer: 1-20
Board Thickness Tolerance: ± 10%
Copper thickness: 0.5 OZ--2.0OZ
Impedance Control: YES
Hole tolerance: PTH: ± 0.075mm NPTH: ± 0.05mm
Min Laser hole size: 0.1mm(4mil)
Min Space Width: 0.075mm (3 mil)
Min Trace Width: 0.075mm(3mil)
BGA Pitch: 0.2 mm (8 mil)
Solder mask Color: Green, Red, Blue, Black

Shenzhen Tengyuxin Technology Co., Ltd is a professional PCB & PCBA manufacturer which specialized in manufacturing SS, DS, HDI and multilayer PCB. Our modern factory is located in Qingyuan Guangdong which has more than 3000 staffs and 101, 000 square meters workshop. We can provide all-in -one service ( R&D, manufacturing and sales) for you
