Henan Dirk Electronic Co., Ltd. >> Telecontrol Brand Universal Industrial Remote Control Wireless Winch Control for Remote Control for Concrete Pump, Glass Handling Equipment
Telecontrol Brand Universal Industrial Remote Control Wireless Winch Control for Remote Control for Concrete Pump, Glass Handling Equipment
| Price: |
US $ 130-330/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
F24-12D |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
DC/AC12V,AC380V,AC110V,AC220V,DC/AC36V |
Product Description
Feature:
12 double step push buttons
Low, low power consumption transmitter 2 AA batteries last up to 4 months
Safety code: Over 4.3 billions unique ID code available.
Temperature range -40°C~ +85°C
Enclosure protection class IP 65
Microsoft Windows based software for easy customize configuration
Structure: Glass-Fiber
Standard Configuration:
1. One transmitter;
2. One receiver;
3. One 1m cable connect with receiver
4. One operation and maintain manual.

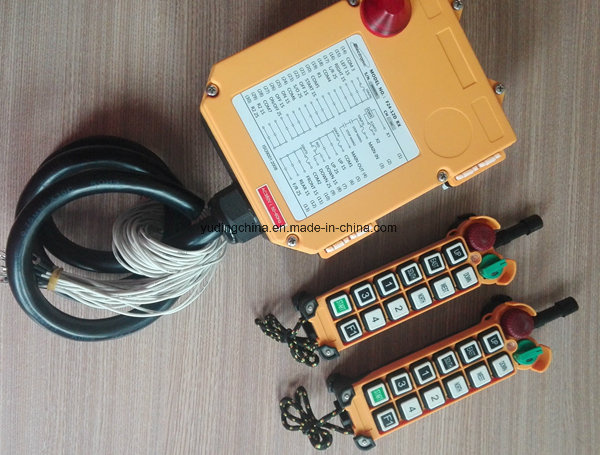

One receiver and Two launcher(Customized)

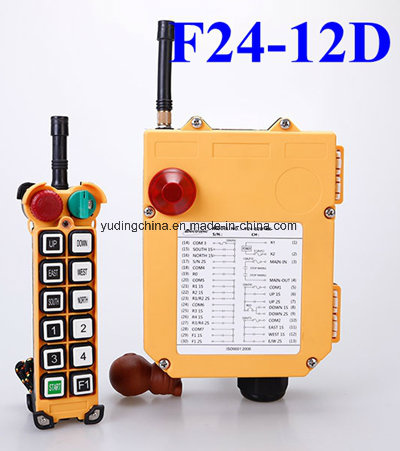

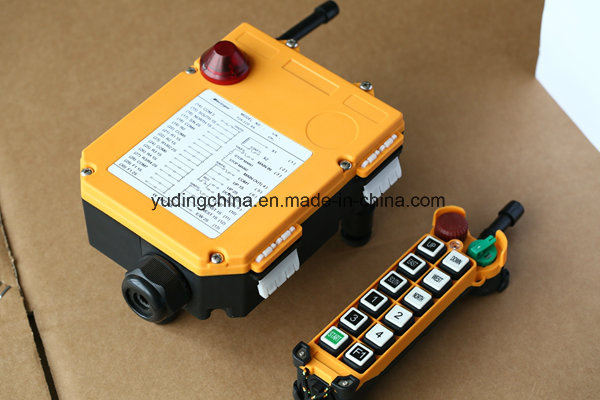

Specification:| TX Model | F24-12D-TX-V-(E) |
| TX Size | 18.8x6.4x4.8(cm) |
| TX Weight | about291g(without Batteries) |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 12 Single speed buttons,1 START button,1 mushroom button |
| Button Marking | arrow tip |
| I.D.Code | 4.3 billion |
| Voltage Warning | TX Red LED will flash slowly when the volts under 2.2V,and unable to start TX under 1.8V. |
| Operating Frequency | 310.0325-331.165MHz or 425MHZ-441MHZ |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection |
TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |
Application:
Single hook,Single speed hoist and Hoist crane and for industrial wireless remote control use which under 12 control points etc.
Certification:
Package
1 set per box, 6 pcs per carton.
WHy Choose us ?
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2.More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
Factory Information:
Henan Yuding Company is the professional wireless remote controller manufacturer in China . We mainly Design, Manufacture, Installation, Repair , Maintenance, Trade and Export all kinds Electric Hoists controller, Overhead Cranes controller, Gantry Cranes controller, Jib Cranes,Tower Crane controller, Scissor Lift controller , etc.
Notes:
The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic,
or will only work from a short distance, replace both batteries with new AA alkaline batteries.
Our Service:
♦ Your inquiry will be replied within 24hours
♦ If any problem during installation or operation,please contact us directly,we will provide our professional instruction.
♦ OEM and sample orders acceptable, provide customized products for our customers.
♦ One year warranty.
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
