Telecrane Crane Remote Control F21-4s 4 Function Single Speed Button Wireless Radio Control
| Price: |
US $ 70-120/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
F21-4S |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AA Battery |
| Voltage: |
12V,24V,36V,65-440V |
| Material: |
Glass Fiber |
Product Description

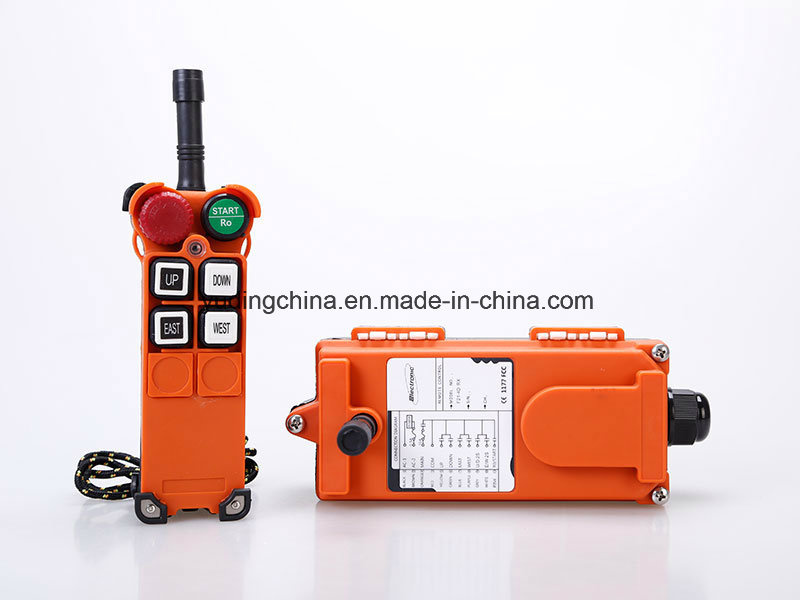

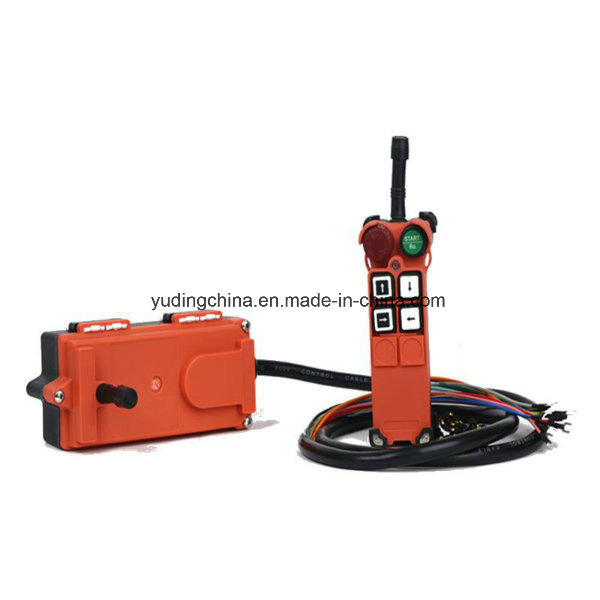

Telecrane Crane Remote Control F21-4s 4 Function Single Speed Button Wireless Radio Control
Feature:1. With 4 function buttons and 1 Start button
2. With Battery voltage warning device, the power supply is cut off during low power
3.Program the button function by computer software
4.Safty key prevents from unauthorized user.
5.Up/down can be programmed to interlock or non-interlock,toggle and normal etc.
6. Start button can be program to be start, Normal, toggle function etc.
Data Sheet for Telecrane Remote Control| TX Model | F21-4S-TX-V-(E) |
| TX Size | 15.6*5.6*4.9cm |
| TX Weight | about 208g(without Batteries) |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 4 Single speed buttons,1 START button,1 mushroom button |
| Button Marking | arrow tip |
| I.D.Code | 4.3 billion |
| Voltage Warning | TX Red LED will flash slowly when the volts under 2.2V,and unable to start TX under 1.8V |
| Operating Frequency | 310.0325-331.165MHz or 425-441MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection | TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |
| RX Model | F21-4S-RX-V-(E) |
| RX Size | 18.7x8.6x7.9cm |
| RX Weight | about 604g |
| Housing Material | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Connection diagram | English |
| Temperature Rating | -35°C ~ +85°C |
| Power Supply | AC380V,AC36V,AC220V,AC110V,AC48V,AC24V,AC12V/DC12V,
AC380V/AC220V(50-60Hz) |
| Relays | 4 Relays control functions,1 relay control EMS and 1 relay reserve |
| Output Relays | 5Amp Omniseal Relays(AC250V/10A Relays ,10Amp fuse) |
| I.D.Code | 4.3 billion |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| Sensitivity | >=-110DBm |
| Interface | Cable output |

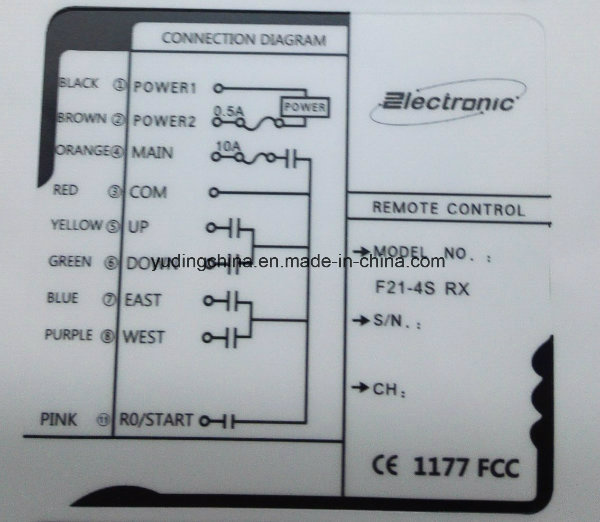

Connection Diagram
Application:

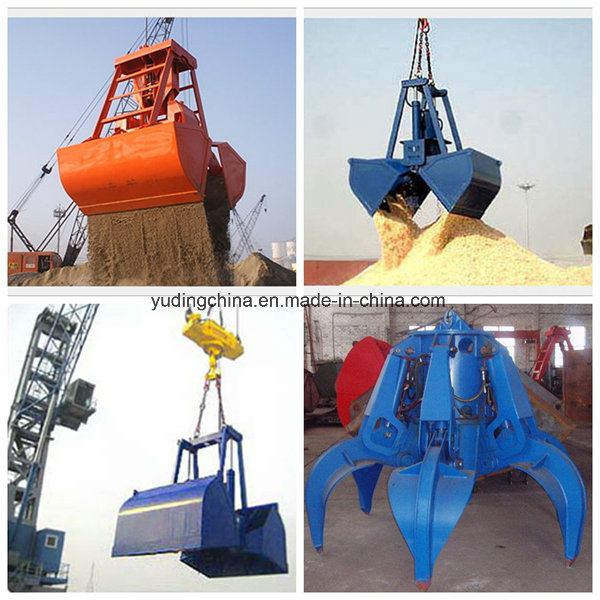

Lifting equipment,construction machinery,cargo loading/unloading machines.
Water supply system, data transmision, the iron-smelting and steel making.
Bridge equipment, railroad euqipmen and other equipment and sites which can be worked by radio controls.
