Telephone Cat. 3 Keystone Jack Rj11 UTP 90 Degree

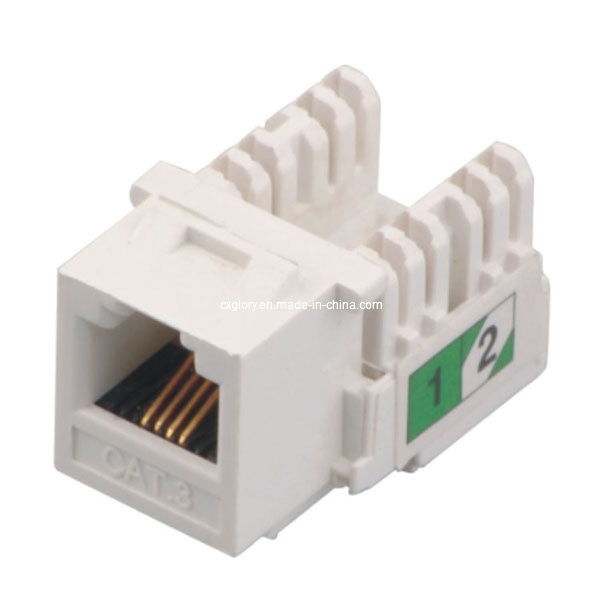

Name: Telephone Cat. 3 Keystone Jack Rj11 UTP 90 Degree
Brand: all-electronics-online.com
SKU: 724344545
Availability: InStock
Rating: 4.3 (67 reviews)

Price:	US $ 0.24-0.26/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GL-1131
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gold Thickness:	3um to 50um
Color:	White
Weight:	8g
Contact:	Phosphor Bronze
Information Content:	Data
Support Network:	Network Cabling
Usage:	Ethernet Cable Connector
Type:	Cat.3 Rj11 UTP 90 Degree

Product Description

Keystone Jack
CAT.3 RJ11(6P4C)Keystone Jack
Voice Keystone Jack/telephone coupler/RJ11 module/wall tel socket

1.Shield material: brass T=0.30mm nickel plating

2.Housing material: PC UL94V-0

3.Insert material:flame retardancy ABS UL94V-0

4.PCB material: FR-4 T=1.6mm

5.Contact material: phosphor bronze stamp pin T=0.35mm

6.IDC contact material:phospor broze T=0.5mm Nickel plating

7.Wire:AWG 22~26

Item:	Specification:
Product Name:	Keystone Jack GL-1131
Model:	GL-1131
Application :	Ethernet cable connector
Performance Category :	Cat 3
Jack Type :	RJ11
Number of position:	6
Wiring Patter :	T568A/568B
Solid wire:	22-26 AWG
Termination Stype :	Toolless
Dust Cover :	With
Temperature :	-40°C to 70°C
Material:	PC
Contact :	Phosphor bronze
Color:	White
Weight:	8g
