| Prod Model: |
RS03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electrical Rating And Current: |
AC-250V 10A; AC-125V 16A |
| Operating Temperature Range: |
40-1602c (One Step for Every 52c ) |
| Life: |
100,000cycles |
| Reset Temperature Range: |
Operating Temperature Decrease by 15~457c |
| Usage: |
Motor |
| Certification: |
TUV |
| Control Type: |
Mechanical |
| Type: |
Temperature Controller |
| Material: |
Stainless Steel |
| Brand: |
L&G |
Product Description

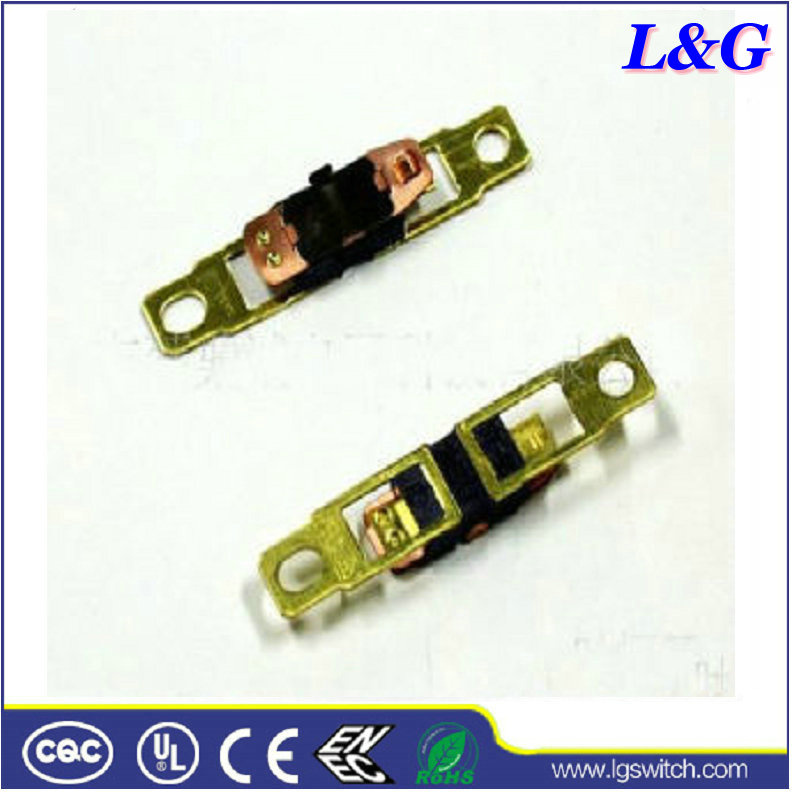

RS03 Series Temperature Switch Application
The thermal protector for hair dryer, heater and other electrical, electronic equipment and appliances and parts of thermal protection to prevent component failure occurs in the risk of over-temperature, to avoid accidents.
The thermal protection device is suitable for relative humidity less than 90 , non-flammable gas and conductive dust exist in the general indoor environment.
Thermal protector in the installation process, do not tension and compression temperature shrapnel pieces in order to avoid poor contact, the temperature inaccurate.
| Rated opening temperature | Disconnect the temperature range | | Rated opening temperature | Disconnect the temperature range |
55ºC | 55±5ºC | 105ºC | 105±5ºC |
60ºC | 60±5ºC | 110ºC | 110±5ºC |
65ºC | 65±5ºC | 115ºC | 115±5ºC |
70ºC | 70±5ºC | 120ºC | 120±5ºC |
75ºC | 75±5ºC | 125ºC | 125±5ºC |
80ºC | 80±5ºC | 130ºC | 130±5ºC |
85ºC | 85±5ºC | 135ºC | 135±5ºC |
90ºC | 90±5ºC | 140ºC | 140±5ºC |
95ºC | 95±5ºC | 145ºC | 145±5ºC |
100ºC | 100±5ºC | 150ºC | 150±5ºC |
Reset temperature | When the movement below the temperature at 75 ºC reset temperature minus the temperature for the action 20 ºC ± 15
When the operating temperature at 75 ºC ~ 100 ºC, reset the temperature to operating temperature by 30 ºC ± 15 ºC
When the operating temperature at 100 ºC above, reset the temperature to operating temperature by 40 ºC ± 15 ºC |
Rated voltage (V) | Rated current (A) |
